GFK-2332X
March 2016
The Ethernet Interface Module, IC695ETM001, connects a
PACSystems RX3i controller to an Ethernet network. It enables
the RX3i controller to communicate with other PACSystems
equipment and with Series 90 and VersaMax controllers. The
Ethernet Interface provides Transmission Control Protocol and
Internet Protocol (TCP/IP) communications with other control
systems, host computers running the Host Communications
Toolkit or programmer software, and computers running the
TCP/IP version of the programming software. These
communications use the Service Request Transport Protocol
(SRTP), Modbus TCP, and Ethernet Global Data (EGD) protocols
over a four-layer TCP/IP (Internet) stack.
Features of the RX3i Ethernet Interface include:
▪
Full programming and configuration services. Firmware
upgrades from the RX3i CPU using the WinLoader
software utility, which is supplied with updates to the
Ethernet Interface software.
▪
Periodic data exchange using Ethernet Global Data (EGD).
▪
EGD Commands to read and write controller and EGD
exchange memory over the network.
▪
TCP/IP communication services using SRTP.
▪
Support for SRTP Channels, Modbus/TCP Server, and
Modbus/TCP Client
▪

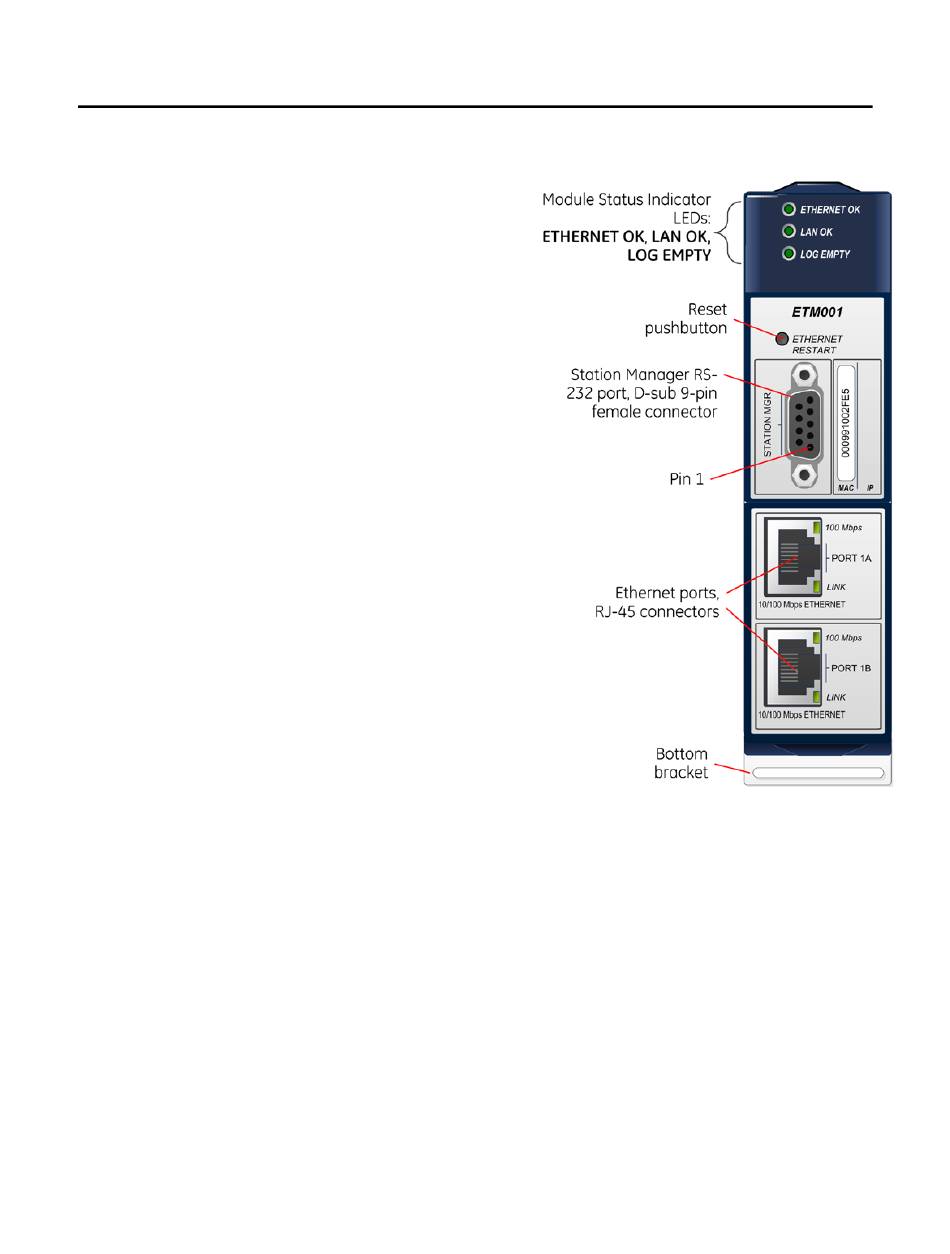

Built-in Station Manager for on-line supervisory access to
the Ethernet Interface. Dedicated Station Manager port.
▪
Two auto-sensing 10Base T / 100Base TX RJ-45 shielded
twisted-pair Ethernet ports for direct connection to either
a 10BaseT or 100BaseTX IEEE 802.3 network without an external transceiver. There is only one interface to the
network (only one Ethernet MAC address and only one IP address).
▪
Internal network switch with Auto negotiate, Sense, Speed, and crossover detection.
▪
Recessed Ethernet Restart pushbutton permits manually restarting the Ethernet firmware without power cycling
the system.
▪
LEDs: Ethernet OK, LAN OK, Log Empty, individual port activity and speed LEDs.
▪
Configurable stand-alone Redundant IP addressing, which allows a single IP address to be assigned to
corresponding Ethernet modules in two different controllers. The Redundant IP address is configured in
addition to the normal unique IP address of each Ethernet module. Under application logic control, only the
Ethernet module in the active unit can use the Redundant IP address.
▪
Time synchronization to SNTP Time Server on Ethernet network (when used with Release 5.00 or later CPU
module).
* Indicates a trademark of General Electric Company and/or its subsidiaries. All other trademarks are the property of their
respective owners.
Copyright © 2013- 2016 by General Electric Company. All Rights Reserved
PACSystems* RX3i
IC695ETM001-HW
Ethernet Interface Module
Advertisement
Related Manuals for GE IC695ETM001-HW
Summary of Contents for GE IC695ETM001-HW
- Page 1 PACSystems* RX3i IC695ETM001-HW Ethernet Interface Module GFK-2332X March 2016 The Ethernet Interface Module, IC695ETM001, connects a PACSystems RX3i controller to an Ethernet network. It enables the RX3i controller to communicate with other PACSystems equipment and with Series 90 and VersaMax controllers. The...
- Page 2 RX3i Ethernet Interface Module IC695ETM001-HW IPI GFK-2332X March 2016 IC695ETM001 Specifications Ethernet processor speed 200 MHz Connectors - Station Manager (RS-232) Port: 9-pin female D-connector - Two 10BaseT / 100BaseTX Ports: 8-pin female shielded RJ-45 IEEE 802.2 Logical Link Control Class I IEEE 802.3 CSMA/CD Medium Access Control 10/100 Mbps...
- Page 3 RX3i Ethernet Interface Module IC695ETM001-HW IPI March 2016 GFK-2332X Indicator Light Emitting Diodes (LEDs) State Indicates ETHERNET OK Fast Blink LAN OK Performing Diagnostics LOG EMPTY ETHERNET OK Slow Blink Waiting for Ethernet configuration LAN OK from CPU LOG EMPTY...
- Page 4 The damaged shipping container should be saved as evidence for inspection by the carrier. As the consignee, it is your responsibility to register a claim with the carrier for damage incurred during shipment. GE Intelligent Platforms will fully cooperate with you, however, should such action be necessary.
- Page 5 GFK-2225, PACSystems TCP/IP Communications, Station Manager Manual Additional Support For support and information, visit GE Intelligent Platforms’ website at http://www.ge-ip.com. The files for this manual and other related documentation are available there. Additional region- and language-specific websites and telephone numbers are found there as well.
- Page 6 RX3i Ethernet Interface Module IC695ETM001-HW IPI GFK-2332X March 2016 Important Product Information for this Release In RX3i Ethernet firmware 6.40, an issue was introduced where an ETM001 will continue to respond to the redundant IP address even after it is switched to backup mode. This problem has been corrected in firmware version 6.41.
- Page 7 Feb 2016 becoming unresponsive and requiring a power cycle if it was subjected to heavy network storm traffic. Reference: GE Security Advisory is GE15-09, titled Network Storm Denial of Service In addition to the enhancement there were issues resolved. Please refer to the “Problems Resolved by This Release”...
- Page 8 RX3i Ethernet Interface Module IC695ETM001-HW IPI GFK-2332X March 2016 Release History Firmware Catalog Number Version Date Comments IC695ETM001-FT 6.30 Oct. 2014 Firmware version 6.30 Fixes the following issues: • In very rare conditions closing Modbus or SRTP session can result in a 3-5 blink code.
- Page 9 RX3i Ethernet Interface Module IC695ETM001-HW IPI March 2016 GFK-2332X Release History Firmware Catalog Number Version Date Comments IC695ETM001-DG 5.50 May 2008 Adds ability to modify produced and consumed EGD exchanges during run mode store. For problems resolved, refer to GFK-2332F.
- Page 10 RX3i Ethernet Interface Module IC695ETM001-HW IPI GFK-2332X March 2016 Restrictions and Open Issues Subject Description SRTP communication delays Average latency of communications on SRTP channels may vary considerably due to TCP retransmissions. SRTP client applications should be designed to take this variance into account. In particular, SRTP client applications migrating from Series 90 SRTP servers to PACSystems may need to lengthen SRTP timeout parameters.
- Page 11 RX3i Ethernet Interface Module IC695ETM001-HW IPI March 2016 GFK-2332X Restrictions and Open Issues Subject Description EGD command range failure When an EGD Command attempts a write operation to a bit-mode can write partial data to reference memory range (%I, %Q; %T, %M, %SA, %SB, %SC) where the...
- Page 12 RX3i Ethernet Interface Module IC695ETM001-HW IPI GFK-2332X March 2016 Restrictions and Open Issues Subject Description COMMREQ Status Word value Occasionally a COMMREQ Status Word value of 0x54A0 is returned after of 0x54A0 occasionally COMMREQs for Ethernet Global Data commands when the previously- returned for EGD commands transferred command has experienced retries in the network.
- Page 13 Appendix A, Configuring Advanced User Parameters in TCP/IP Ethernet Communications for PACSystems User’s Manual, GFK-2224K.) Changing the default Station GE Intelligent Platforms strongly recommends that you change the Station Manager password is strongly Manager password to a value other than the default. Before a...
- Page 14 RX3i Ethernet Interface Module IC695ETM001-HW IPI GFK-2332X March 2016 Ethernet Operational Notes Subject Description The Ethernet Interface cannot operate on a network until a valid IP Configuration of IP Address is address is configured. The Ethernet addressing information must be...
- Page 15 RX3i Ethernet Interface Module IC695ETM001-HW IPI March 2016 GFK-2332X Ethernet Operational Notes Subject Description Advanced User Parameter The Advanced User Parameter “wsnd_buf” should not be changed. wsnd_buf should not be Changing this value may cause the LAN LED to go out and the Ethernet changed Interface to drop connection.
- Page 16 RX3i Ethernet Interface Module IC695ETM001-HW IPI GFK-2332X March 2016 Ethernet Operational Notes Subject Description SRTP Connections Remain The Ethernet Interface does not terminate all open SRTP connections Open After IP Address Changed before changing its IP address. Once the local IP address has changed, any existing open TCP connections are unable to normally terminate.
