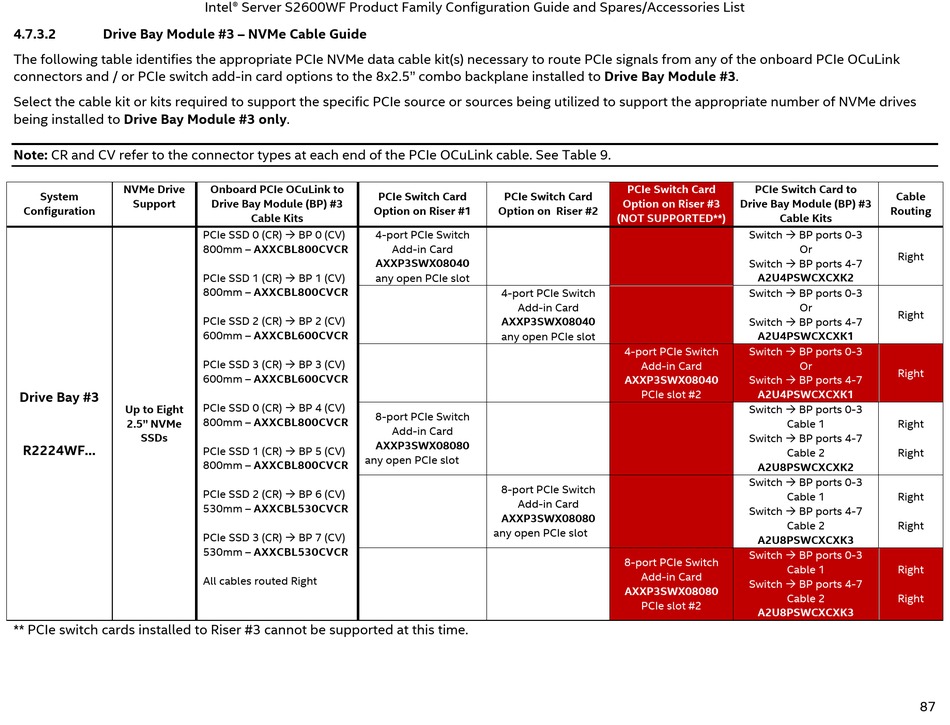

4.7.3.2 Drive Bay Module #3 – NVMe Cable Guide
The following table identifies the appropriate PCIe NVMe data cable kit(s) necessary to route PCIe signals from any of the onboard PCIe OCuLink
connectors and / or PCIe switch add-in card options to the 8x2.5" combo backplane installed to Drive Bay Module #3.
Select the cable kit or kits required to support the specific PCIe source or sources being utilized to support the appropriate number of NVMe drives
being installed to Drive Bay Module #3 only.
Note: CR and CV refer to the connector types at each end of the PCIe OCuLink cable. See Table 9.
NVMe Drive
System
Support
Configuration
Drive Bay #3
Up to Eight
2.5" NVMe
SSDs
R2224WF...
** PCIe switch cards installed to Riser #3 cannot be supported at this time.
Intel® Server S2600WF Product Family Configuration Guide and Spares/Accessories List
Onboard PCIe OCuLink to
PCIe Switch Card
Drive Bay Module (BP) #3
Option on Riser #1
Cable Kits
PCIe SSD 0 (CR)  BP 0 (CV) 4-port PCIe Switch
800mm – AXXCBL800CVCR
AXXP3SWX08040
PCIe SSD 1 (CR)  BP 1 (CV) any open PCIe slot
800mm – AXXCBL800CVCR
PCIe SSD 2 (CR)  BP 2 (CV)
600mm – AXXCBL600CVCR
PCIe SSD 3 (CR)  BP 3 (CV)
600mm – AXXCBL600CVCR
PCIe SSD 0 (CR)  BP 4 (CV)
8-port PCIe Switch
800mm – AXXCBL800CVCR
AXXP3SWX08080
PCIe SSD 1 (CR)  BP 5 (CV)
any open PCIe slot
800mm – AXXCBL800CVCR
PCIe SSD 2 (CR)  BP 6 (CV)
530mm – AXXCBL530CVCR
PCIe SSD 3 (CR)  BP 7 (CV)
530mm – AXXCBL530CVCR
All cables routed Right
PCIe Switch Card
Option on Riser #2
Add-in Card
4-port PCIe Switch
Add-in Card
AXXP3SWX08040
any open PCIe slot
Add-in Card
8-port PCIe Switch
Add-in Card
AXXP3SWX08080
any open PCIe slot
PCIe Switch Card PCIe Switch Card to
Option on Riser #3 Drive Bay Module (BP) #3
(NOT SUPPORTED**) Cable Kits
Switch  BP ports 0-3
Switch  BP ports 4-7
A2U4PSWCXCXK2
Switch  BP ports 0-3
Switch  BP ports 4-7
A2U4PSWCXCXK1
4-port PCIe Switch Switch  BP ports 0-3
Add-in Card
AXXP3SWX08040 Switch  BP ports 4-7
A2U4PSWCXCXK1
PCIe slot #2
Switch  BP ports 0-3
Cable 1
Switch  BP ports 4-7
Cable 2
A2U8PSWCXCXK2
Switch  BP ports 0-3
Cable 1
Switch  BP ports 4-7
Cable 2
A2U8PSWCXCXK3
Switch  BP ports 0-3
8-port PCIe Switch
Cable 1
Add-in Card
Switch  BP ports 4-7
AXXP3SWX08080
Cable 2
PCIe slot #2
A2U8PSWCXCXK3
Cable
Routing
Or
Right
Or
Right
Or
Right
Right
Right
Right
Right
Right
Right
