Intel R2000WF Configuration Manual page 49

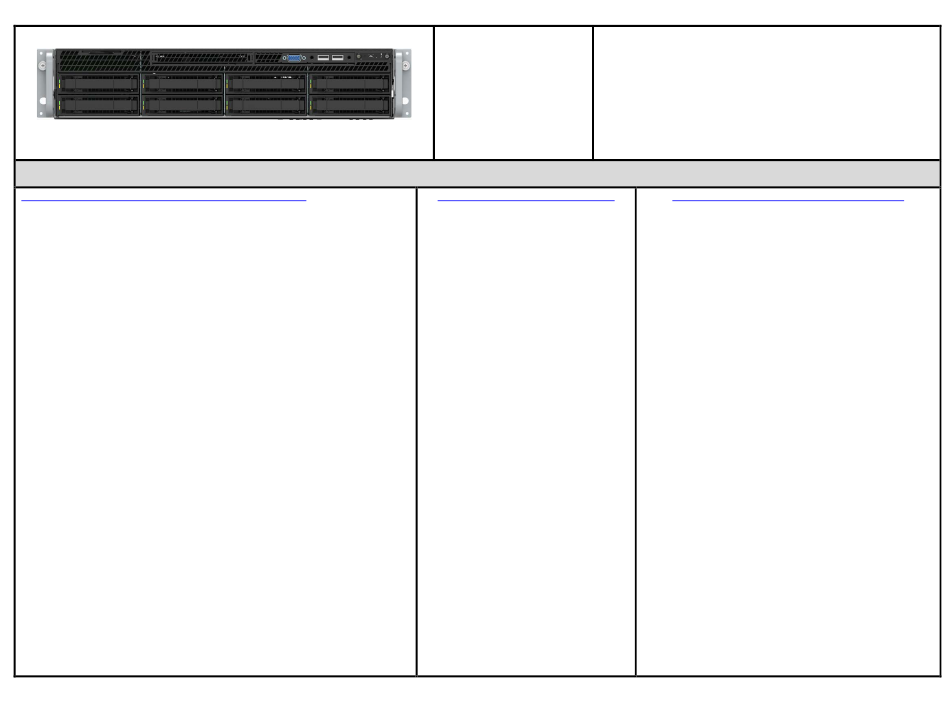

Intel Product Code (iPC): R2308WFTZS
2U – Intel® Server board S2600WFT, 8 x 3.5" HDD or 8 x 2.5" SSD
SAS/SATA front mount drives
Intel product code R2308WFTZS includes the following:
(1) – 2U Chassis with Quick Reference Label affixed to top cover
(1) – Intel® Server Board S2600WFT (Dual 10GbE LAN) – iPC S2600WFT
(2) – PCIe Riser card brackets
Includes (2) 3-slot PCIe* riser cards – iPC A2UL8RISER2
•
• Includes (1) 2-slot low profile PCIe* riser card – iPC A2UX8X4RISER
(8) – 3.5" Hot-swap drive bays with drive carriers and drive blanks
• Includes (1) 12Gb SAS backplane – iPC A2U8X35S3HSDK1
Includes (8) 3.5" hot swap drive tool less carriers – iPC
•
FXX35HSCAR2
(1) – Standard control panel assembly
• board only – iPC FXXFPANEL2
• 300mm FP Cable – iPN H34381-xxx
(1) – Front I/O Panel assembly (1 x VGA and 2 x USB)
• 620mm USB 3.0 Cable iPN H76899-xxx
400mm Video Cable iPN H62114-xxx
•
(1) – 175mm Backplane I2C Cable – iPN H91172-xxx
(1) – 730mm Mini SAS HD Cable iPC AXXCBL730HDHD
(1) – 875mm Mini SAS HD Cable iPC AXXCBL875HDHD
(1) – 400mm Backplane power cable – iPN H82099-xxx
(1) – Standard 2U Air duct iPN H90554-xxx
(6) – Hot swap system fans – iPC FR2UFAN60HSW
(8) – DIMM slot blanks – iPN G75158-00x
(1) – 1300W AC Power Supply Module – iPC AXX1300TCRPS
(1) – Power supply bay blank insert
(2) – AC Power Cord retention strap assembly – iPN H23961-00x
(2) – CPU heat sinks – iPC FXXCA78X108HS
(2) – CPU heat sink "NO CPU" mylar spacer insert – iPN J16115-XXX
(2) – Standard CPU Carrier – iPN H72851-xxx
(1) – 3x RMFBU Mounting Bracket – iPN H18238-00x
(1) – 250mm Fixed Mount SSD Power Cable – iPN J29245-xxx
Spares for each screw type included
Intel® Server S2600WF Product Family Configuration Guide and Spares/Accessories List
Intel® Server System Product Definition and Configuration Requirements/Options
Product Type: L6 Integrated System
Order Code Information:
Chassis Form Factor: 2U rack mount
MM# – 975887
Chassis dimensions: L=712mm, W=439mm, H=89mm
UPC – 00735858344807
Packaged Gross Weight: 22.88 Kgs, 50.34 Lbs
EAN – 5032037105514
Un-packaged Net Weight: 16.32 Kgs, 35.9 Lbs
Outer Box Dimensions: L=983mm, W=577mm, H=260mm
MOQ – 1
Required Items – Sold Separately:
Rack Mount Kit – See Chapter 5.8
•
for available options
• 1 or 2 Intel® Xeon® processor
Scalable family
• DDR4 memory (RDIMM or LRDIMM)
Power Cord(s) – See Chapter 2.3
•
Optional Intel Accessories – Sold Separately
Note: By default the front drive bays are cabled to
Onboard SATA only ports. An add-in SAS card or Module
is needed to support SAS devices.
• iPC AXX1300TCRPS – 1300W AC Power Supply
Module – to support power redundancy
• Intel® OCP Module - See Chapter 5.5 for available
options
• Intel® 12G SAS RAID module + RMFBU - See
Chapter 5.6 for available options
• SAS Data cables – Depending on the location of the
SAS Data controller, new data cables may be
necessary. See Chapter 4
• iPC RKSATA4R5 – Embedded SATA ESRT2 SW
RAID-5 support key
• iPC A2UREARHSDK2 - Rear Mount Hot Swap Drive
Bay Accessory Kit
• Storage Drives
See Chapter 6 for all available accessory options.
