Intel Product Code
iPC – A2UHANDLKIT
iPC - AXXRJ45DB93
Intel® Server S2600WF Product Family Configuration Guide and Spares/Accessories List
Order Information
MM# – 936038
UPC – 00735858288866
EAN – 5032037068147
MOQ – 1
MM# – 920430
UPC – 00735858242820
EAN – 5032037037525
MOQ – 1

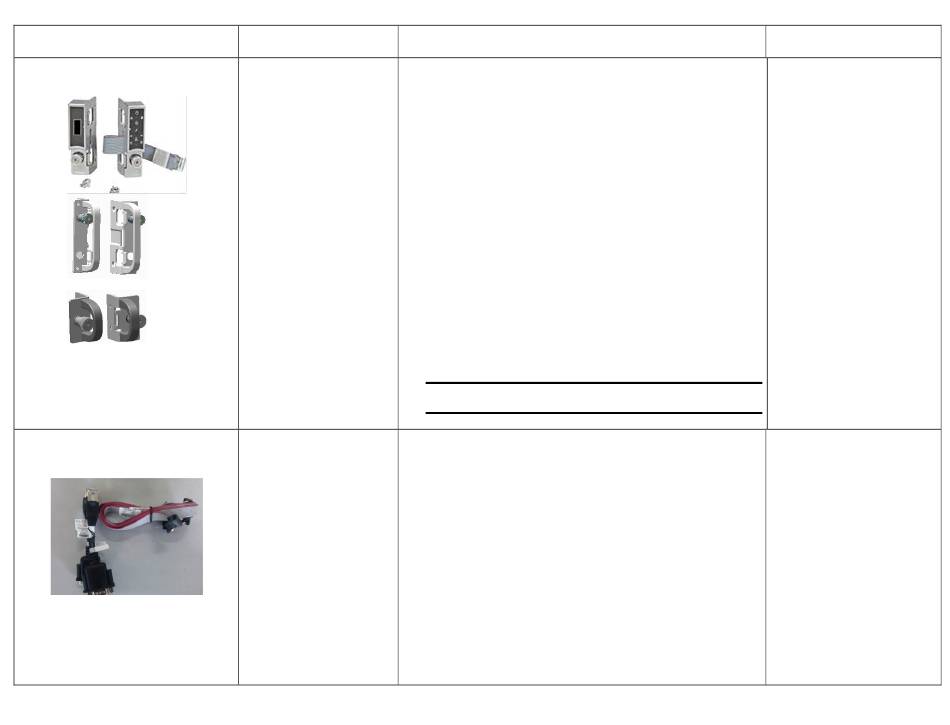

Product Description
1U / 2U Rack Handle Kit
This kit includes 3 different rack handles, including:
-
(1) Set of 2U storage rack handles with control panel and USB
support (R2312WFxxxx & R2224WFxxxx)
-
(1) Set of 2U non –storage rack handles (R2208WFxxxx &
R2208WFxxxx + 8 Drive Accessory Kit)
-
(1) Set of 1U rack handles (R1304WFxxxx & R1208WFxxxx
This kit includes replacement chassis handles for ALL product family
1U and 2U systems. In addition, this kit must be purchased for 2U
building block configurations consisting of 24x2.5" drives (3 drive bay
modules) or when upgrading a R2208WF or R2208WF + 8 Drive
Accessory Kit system to a 24 drive R2224WF system, where the
standard chassis rack handles must be replaced with a pair of Storage
Rack Handles that include the system front panel and front USB 2.0
port.
See the appropriate Intel Server System Product Family System
Integration and Service Guide for complete system integration,
upgrade, and part replacement instructions.
Note: The 2U storage rack handles are not supported on R2312WFTF
systems.
Serial Port Cable Kit
This kit provides serial port cables for use with systems that include a
back panel cut out to support a DB9 Serial 'B' port as routed from the
server board and for systems that include an external RJ45 Serial 'A'
port that need to convert the connector to a DB9 style connector.
Kit includes:
(1) - 1040mm Internal Serial 'B' port cable – Onboard DH10 header-
to- External Mount DB9 – for 2U systems
(1) - 520mm Internal Serial 'B' port cable – Onboard DH10 header-
to- External mount DB9 – for 2U systems
(1) – 100mm DCD RJ45 to DB9 Dongle
(1) – 100mm DSR RJ45 to DB9 Dongle
Product Type
• 2U – 24 2.5" Drive Upgrade
Kit
• 1U / 2U Spares Kit
• 1U / 2U Accessory Kit
