Intel R2000WF Configuration Manual page 83

NVMe Drive
System
Support
Configuration
Drive Bay #1
Up to Eight
2.5" NVMe
R2208WF
SSDs
R2208WF +8
R2224WF
** PCIe retimer card installed to Riser #1 is not supported.

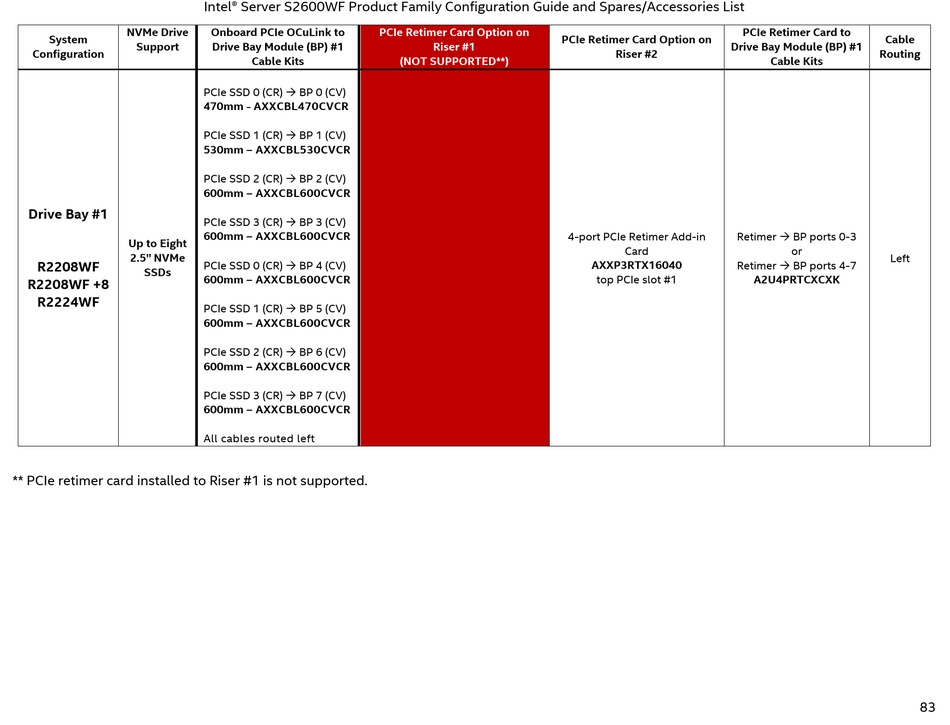

Intel® Server S2600WF Product Family Configuration Guide and Spares/Accessories List
Onboard PCIe OCuLink to PCIe Retimer Card Option on
Drive Bay Module (BP) #1
Cable Kits
PCIe SSD 0 (CR)  BP 0 (CV)
470mm - AXXCBL470CVCR
PCIe SSD 1 (CR)  BP 1 (CV)
530mm – AXXCBL530CVCR
PCIe SSD 2 (CR)  BP 2 (CV)
600mm – AXXCBL600CVCR
PCIe SSD 3 (CR)  BP 3 (CV)
600mm – AXXCBL600CVCR
PCIe SSD 0 (CR)  BP 4 (CV)
600mm – AXXCBL600CVCR
PCIe SSD 1 (CR)  BP 5 (CV)
600mm – AXXCBL600CVCR
PCIe SSD 2 (CR)  BP 6 (CV)
600mm – AXXCBL600CVCR
PCIe SSD 3 (CR)  BP 7 (CV)
600mm – AXXCBL600CVCR
All cables routed left
PCIe Retimer Card Option on
Riser #1
(NOT SUPPORTED**)
4-port PCIe Retimer Add-in
PCIe Retimer Card to
Drive Bay Module (BP) #1
Riser #2
Retimer  BP ports 0-3
Card
AXXP3RTX16040 Retimer  BP ports 4-7
top PCIe slot #1 A2U4PRTCXCXK
Cable
Routing
Cable Kits
or
Left
83
