Intel R2000WF Configuration Manual page 120

Intel Product Code
iPC – AWF1PFABKITM
Intel® Server S2600WF Product Family Configuration Guide and Spares/Accessories List
Order Information
MM# – 955873
UPC – 00735858345644
EAN – 5032037106139
MOQ – 1
Product Description

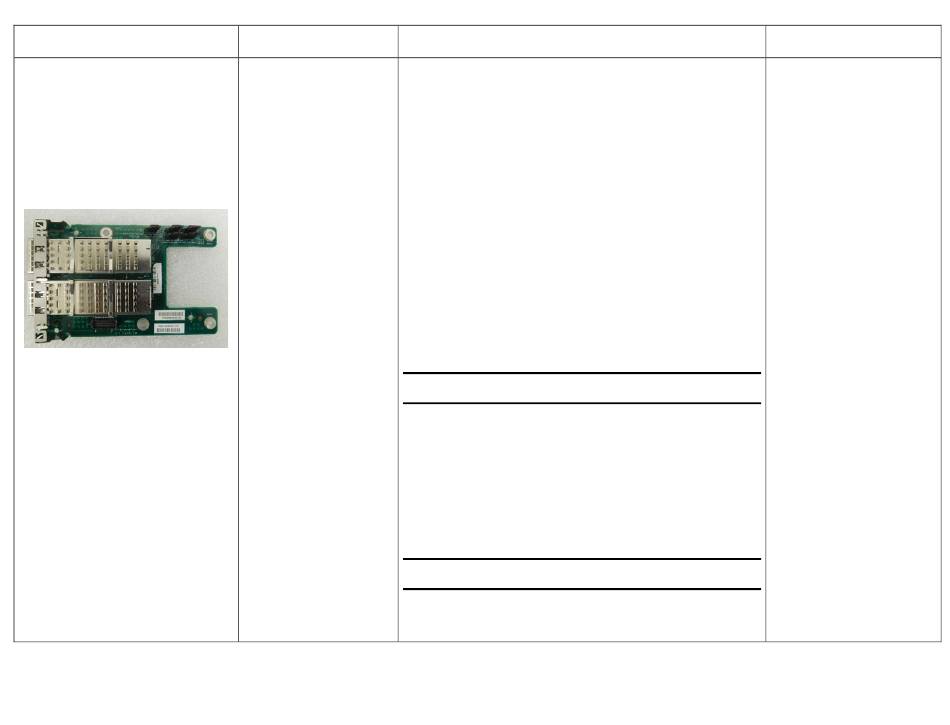

Mezzanine Fabric Carrier Kit
This board allows external access to the Host Fabric Interface (HFI) of
fabric supported processors. The connection to the external access is
done through two QSFP+28 style connections.
The mezzanine fabric carrier board is designed to be mounted within
the OCP module bay of either the 1U or 2U chassis. All required
signals/power for the board are passed through the included
sideband cable.
Kit includes:
(2) IFT Carrier Mezzanine Board – iPN H88405-xxx
(1) 235mm Cable (iPN H79272-xxx), 1 port, Mezzanine card to Fabric
Processor #1
(1) 430mm cable (iPN H77497-xxx), 2x12 HFI Sideband Y Cable,
Single Omni-Path Sideband IFT Carrier to dual Omni-Path CPU
connectors (Mezzanine card to server board CPU HFI Sideband
connectors)
(1) Fabric Processor Clip (iPN J61895-xxx)
Note : The (4) Screws used to mount the IFT Mezzanine card to the OCP Mezz
stand-offs are pre-installed in the chassis/system.
Dual Fabric Processor Support:
Dual Fabric processor configurations require the following additional
accessory kits to be ordered seperately:
• Cable kit AXXCBL370IFPS1 (Mezzanine card to Fabric Processor
#2)
• Fabric Processor Clip Kit FXXCPUCLIPF – Used to attach fabric
enabled processor to processor heat sink
Important: This product is only compatible with external Omni-Path passive
cables (copper) and active cables (optical) up to class 3.
For a list of recommended cables please contact your Intel
representative.
Product Type
• 1U / 2U Accessory Kit
