Intel R2000WF Configuration Manual page 118

Intel Product Code
iPC – AXXP3RTX16040
iPC – AXXP3SWX08040
Intel® Server S2600WF Product Family Configuration Guide and Spares/Accessories List
Order Information
MM# – 958240
UPC – 00735858345613
EAN – 5032037106108
MOQ – 1
MM# – 958241
UPC – 00735858345620
EAN – 5032037106115
MOQ – 1
Product Description

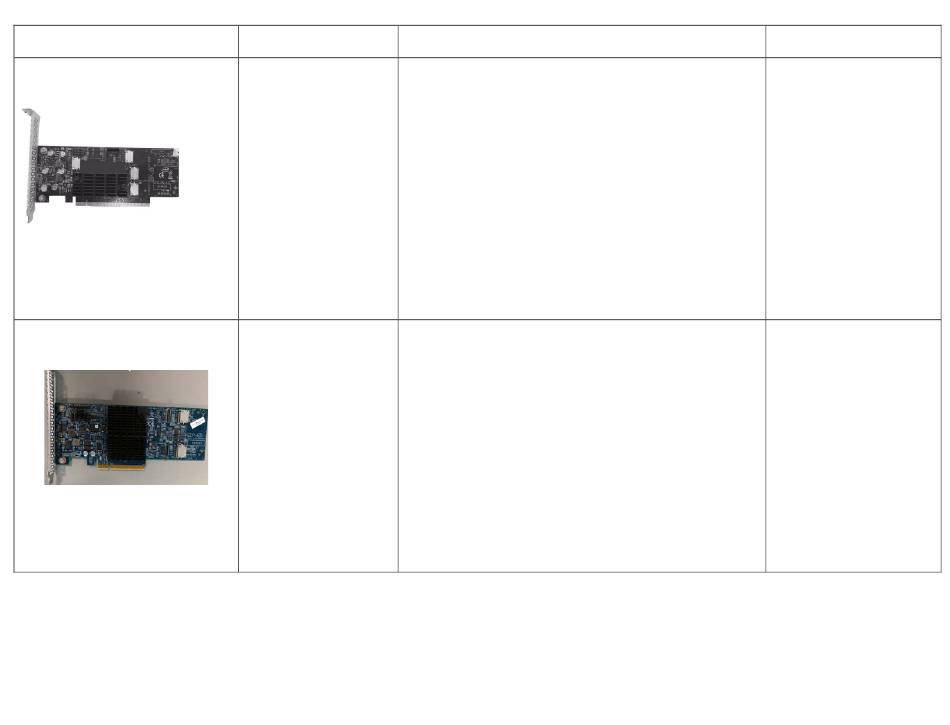

4-Port PCIe (x16 to x16) SSD Retimer AIC 4P (OCuLink)
The SSD Retimer AIC connects up to four x4 PCIe Gen3 links from any
standard x16 PCIe slot on the baseboard to a PCIe SSD capable HSBP
via four bundled OCuLink cables.
The retimer is a low profile form factor standard x16 PCIe card.
Kit includes:
(1) 4-Port PCIe SSD Retimer AIC - iPN H88402-xxx
(1) 350mm PEM Cable - iPN J14812-xxx
(1) Low profile bracket - iPN J32838-xxx
Additional Required Accessory:
Connection to a PCIe capable HSBP requires the addition of one of
the following cable kits for each retimer:
R1208 A1U4PRTCXCXK
R2208, R2208+8 and R2224 A2U4PRTCXCXK
• PCIe retimer card installed to Riser #1 is not supported
• PCIe retimer card is not compatible with R2312WFxxx systems.
4 Port PCIe x8 Switch AIC
This switch AIC is used to increase the number of PCIe SSD drives
within the system by 4.
The 4 Drive Switch is a low profile MD2 form factor PCIe card.
Additional Required Accessory:
The following cable kit is required to connect the 4 port switch to the
HSBP in R1208 system:
A1U4PSWCXCVK
One of the following cable kits is required to connect the 4 port
switch to the HSBP in R2208, R2208+8 and R2224 systems:
A2U4PSWCXCXK1
A2U4PSWCXCXK2
Product Type
• 1U / 2U Accessory Kit
• Accesory only for Riser 2
• 1U / 2U Accessory Kit
