Intel Product Code (iPC): R2224WFTZS

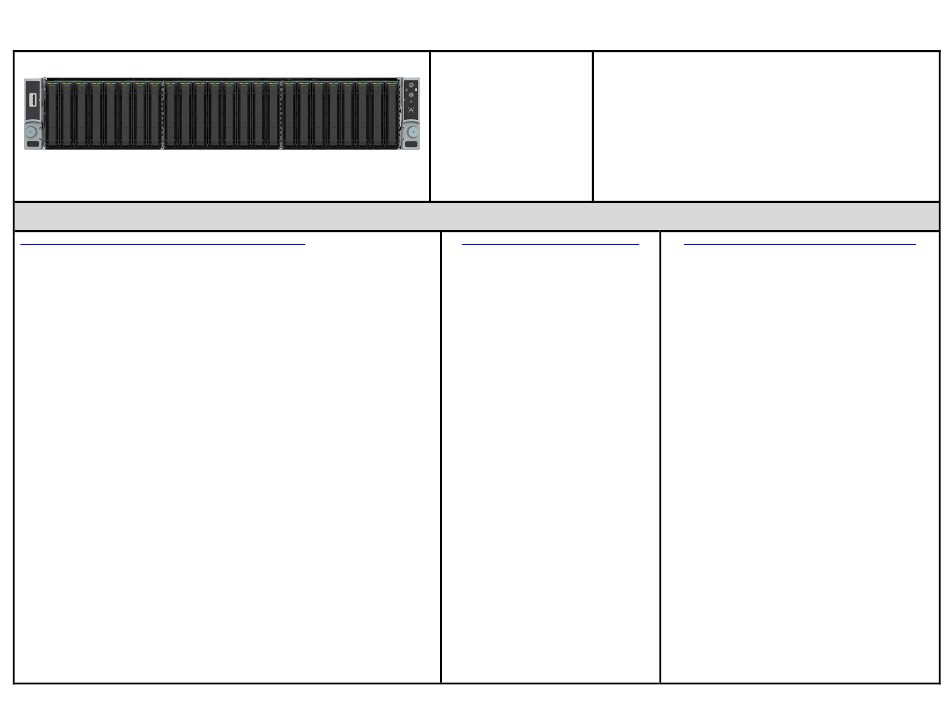

2U – Intel® Server Board S2600WFT, 24 x 2.5" SATA/SAS/NVMe front
mount drives
Intel product code R2224WFTZS includes the following:
(1) – 2U Chassis with Quick Reference Label affixed to top cover
(1) – Intel® Server Board S2600WFT (10GbE LAN) – iPC S2600WFT
(2) – PCIe Riser card brackets
Includes (2) 3-slot PCIe* riser cards – iPC A2UL8RISER2
•
• Includes (1) 2-slot low profile PCIe* riser cards – iPC A2UX8X4RISER
(24) – 2.5" Hot-swap drive bays with drive carriers and drive blanks
• Includes (3) SAS/NVMe Combo backplane – iPC F2U8X25S3PHS
• Includes (24) 2.5" hot swap drive tool less carriers – iPC FXX25HSCAR3
(1) – Storage Rack Handle Assembly – iPC A2UHANDLKIT
• 1 set Storage Rack Handles
Mini-Front panel (board only – iPC G28538-xxx)
•
• 410mm FP Cable – iPN H26893-xxx
• 640mm Front Panel USB 2.0 Cable iPN H20005-xxx
(1) – 250mm Backplane I2C cable – iPN H91166-xxx
(2) – 75mm Backplane to Backplane I2C Jumper cable – iPN H91163-xxx
(2) – 730mm Mini SAS HD VT-VT cable – iPC AXXCBL730HDHD
(4) – 875mm Mini SAS HD VT-VT cable – iPC AXXCBL875HDHD
(1) – 400/525/675mm Backplane power cable – iPN H82108-xxx
(1) – Standard 2U Air duct – iPN H90554-xxx
(6) – Hot swap system fans – iPC FR2UFAN60HSW
(16) – DIMM slot blanks – iPN G75158-00x
(1) – 1300W AC Power Supply Module – iPC AXX1300TCRPS
(2) – CPU heat sinks – iPC FXXCA78X108HS
(2) – CPU heat sink "NO CPU" mylar spacer insert – iPN J16115-XXX
(2) – Standard CPU Carrier – iPN H72851-xxx
(1) – Power supply bay blank insert
(2) – AC Power Cord retention strap assembly – iPN H23961-00x
(1) – 3x RMFBU Mounting Bracket – iPN H18238-00x
(1) – 250mm Fixed Mount SSD Power Cable – iPN J29245-xxx
Spares for each screw type included
Intel® Server S2600WF Product Family Configuration Guide and Spares/Accessories List
Intel® Server System Product Definition and Configuration Requirements/Options
Order Code Information:
Product Type: L6 Integrated System
Chassis Form Factor: 2U rack mount
MM# – 952633
Chassis dimensions: L=712mm, W=439mm, H=89mm
UPC – 00735858344777
Packaged Gross Weight: 24.13 Kgs, 53.09 Lbs
EAN – 5032037105484
Un-packaged Net Weight: 17.57 Kgs, 38.64 Lbs
MOQ – 1
Outer Box Dimensions: L=983mm, W=577mm, H=260mm
Required Items – Sold Separately:
• Rack Mount Kit – See Chapter 5.8 for
available options
• 1 or 2 Intel® Xeon® processor
Scalable family
• DDR4 memory (RDIMM or LRDIMM)
• Power Cord(s) – See Chapter 2.3
Optional Intel Accessories – Sold Separately
Note: By default the front drive bays are
cabled to Onboard SATA only ports. An add-in
SAS card or Module is needed to support SAS
devices.
• iPC AXX1300TCRPS – 1300W AC Power Supply
Module – to support power redundancy
• Intel® OCP Module - See Chapter 5.5 for
available options
• Intel® 12G SAS RAID module + RMFBU - See
Chapter 5.6 for available options
• SAS Data cables – Depending on the location of
the SAS Data controller, new data cables may be
necessary. See Chapter 4
• PCIe OCuLink Data cables (1 per NVMe drive) -
See Chapter 4
• iPC RKSATA4R5 – Embedded SATA ESRT2 SW
RAID-5 support key
• iPC A2UREARHSDK2 - Rear Mount Hot Swap
Drive Bay Accessory Kit
• iPC AXXP3SWX08040 - 4-Port PCIe Gen3 x8
Switch AIC
• iPC AXXP3SWX08080 - 8-Port PCIe Gen3 x8
Switch AIC
See Chapter 6 for all available accessory options.
