Intel R2000WF Configuration Manual page 47

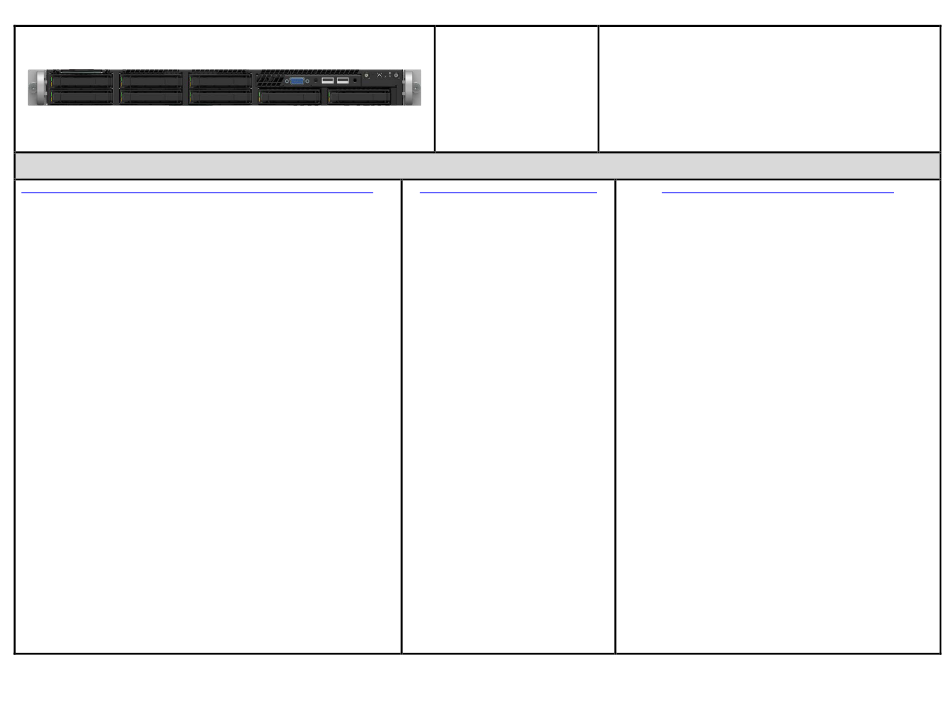

Intel Product Code (iPC): R1208WFTYS
1U – Intel® Server Board S2600WFT, 8 x 2.5" SSD SAS/SATA/NVMe
front mount drives
Intel product code R1208WFTYS includes the following components:
(1) –1U Chassis with Quick Reference Label affixed to top cover
(1) – Intel® Server Board S2600WFT (Dual 10GbE LAN) – iPC S2600WFT
(2) – Riser card assembly with 1 slot PCIe x16 riser card – iPC
F1UL16RISER3
(8) – 2.5" Hot-swap drive bays with drive carriers and drive blanks:
• Includes (1) SAS/NVMe Combo backplane – iPC F1U8X25S3PHS
• Includes (8) 2.5" hot swap drive tool less carriers – iPC
FXX25HSCAR3
(1) – Pre-installed Standard Control Panel assembly
board only – iPC FXXFPANEL2
•
• 260mm FP Cable – iPN J25698-xxx
(1) – Pre-installed Front I/O Panel assembly (VGA and 2 x USB)
620mm USB3.0 cable – iPN H76899-xxx
•
• 400mm Video cable – iPN H62114-xxx
(1) – 200mm Backplane I2C cable – iPN H91170-xxx
(1) – 650mm MiniSAS HD Cable – iPC AXXCBL650HDHRT
(1) – 850mm MiniSAS HD Cable – iPC AXXCBL850HDHRS
(1) – 400mm Backplane power cable – iPN H82099-xxx
(1) – Air duct – iPN H90054-xxx
(6) – Dual rotor system fans – iPC FR1UFAN10PW
(8) – DIMM slot blanks – iPN G75158-00x
(1) – Chassis Stiffener Bar – iPN J16623-xxx
(1) – 1100W power supply module - iPC AXX1100PCRPS
(2) – CPU heat sinks – iPC FXXCA78X108HS
(2) – CPU heat sink "No CPU" Label inserts – iPN J16115-xxx
(2) – Standard CPU Carrier – iPN H72851-xxx
(1) – Power supply bay blank insert
(2) – AC Power Cord retention strap assembly – iPN H23961-00x
Spares for each screw type included
Intel® Server S2600WF Product Family Configuration Guide and Spares/Accessories List
Intel® Server System Product Definition and Configuration Requirements/Options
Order Code Information:
MM# – 975886
UPC – 00735858344814
EAN – 5032037105521
MOQ – 1
Required Items – Sold Separately:
• Rack Mount Kit – See Chapter 5.8
for available options
• 1 or 2 Intel® Xeon® processor
Scalable family
• DDR4 memory (RDIMM or
LRDIMM)
Power Cord(s) – See Chapter 2.3
•
Product Type: L6 Integrated System
Chassis Form Factor: 1U rack mount
Chassis dimensions: L=712mm, W=439mm, H=43.2mm
Packaged Gross Weight: 21.42 Kgs, 47.12 Lbs
Un-packaged Net Weight: 13.12 Kgs, 28.86 Lbs
Outer Box Dimensions: L=983mm, W=577mm, H=260mm
Optional Intel Accessories – Sold Separately
Note: By default the front drive bays are cabled to Onboard
SATA only ports. An add-in SAS card or Module is needed to
support SAS devices.
• iPC AXX1100PCRPS – 2nd 1100W AC Power supply
module – to support power redundancy
Intel® OCP Module - See Chapter 5.5 for available
•
options
Intel® 12G SAS RAID module + RMFBU - See Chapter
•
5.6 for available options
• Up to 8 SAS/SATA/NVMe drives supported
• SAS Data cable – Depending on the location of the SAS
Data controller, a new data cable may be necessary. See
Chapter 4
• PCIe OCuLink Data cables (1 per NVMe drive) - See
Chapter 4
• iPC RKSATA4R5 – Embedded SATA ESRT2 SW RAID 5
support key
See Chapter 6 for all available accessory options.
47
