Intel R2000WF Configuration Manual page 72

Each table in the following sections identify the cable connections and recommended cable lengths for each supported storage controller option in
the specified system. Each "recommended" cable length for a given connector pair provides enough cable to attach the two devices and provides the
least amount of excess cable, providing the cleanest cable routing.
The following diagrams should be referenced when Right or Left cable routing is specified for a given cable configuration. All cable recommendations
are for a system configured for two processors.
Intel® Server S2600WF Product Family Configuration Guide and Spares/Accessories List
Order Information
iPC – A2U4PSWCXCXK2
MM – 958267
UPC – 00735858346238
EAN – 5032037106511
MOQ – 1
iPC – A2U8PSWCXCXK1
MM – 958268
UPC – 00735858346245
EAN – 5032037106528
MOQ – 1
iPC – A2U8PSWCXCXK2
MM – 958270
UPC – 00735858346252
EAN – 5032037106535
MOQ – 1
iPC – A2U8PSWCXCXK3
MM – 958272
UPC – 00735858346269
EAN – 5032037106542
MOQ – 1
iPC – AXXCBL700HDCV
MM – 958273
UPC – 00735858346276
EAN – 5032037106559
MOQ – 1

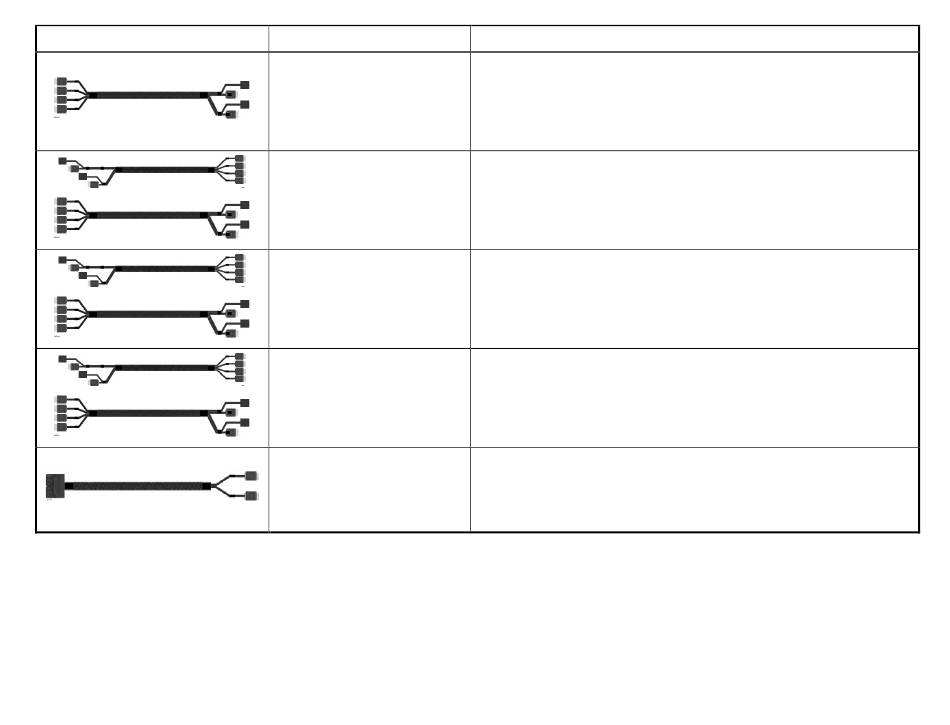

2U 4 port Switch accessory cable kit, Riser 2 or
the following OCuLink bundled cable:
875mm long, bundled cable kit (1 cable included) straight OCuLink SFF-
8611connectors to straight/right angle OCuLink SFF-8611 connectors
Used in the R2208+8 to connect switch AIC to HSBP PCIe SSD ports (SSD ports
depend on installed location of the switch AIC)
2U 8 port Switch accessory cable kit, Riser 1 or Riser 2 (2 cables included). Contains
the following OCuLink bundled cables:
725mm long, bundled cable kit (2 cables included) straight OCuLink SFF-
8611connectors to straight/right angle OCuLink SFF-8611 connectors
Used in the R2208, R2208+8 and R2224 to connect switch AICs to HSBP PCIe SSD
ports (SSD ports depend on installed location of the switch AIC)
2U 8 port Switch accessory cable kit, Riser 1 or Riser 2 (2 cables included). Contains
the following OCuLink bundled cables:
875mm long, bundled cable kit (2 cables included) straight OCuLink SFF-
8611connectors to straight/right angle OCuLink SFF-8611 connectors
Used in the R2208+8 and R2224 to connect switch AIC installed in Riser 2 to HSBP
PCIe SSD ports 0 -7
2U 8 port Switch accessory cable kit, Riser 2 (2 cables included). Contains the
following OCuLink bundled cables:
810mm long, bundled cable kit (2 cables included) straight OCuLink SFF-
8611connectors to straight/right angle OCuLink SFF-8611 connectors
Used in the R2224 to connect switch AIC 2 installed in Riser 2 to HSBP PCIe SSD ports
0 -7
700 mm long, cable kit (2 cables included) straight SFF-8643 connector to dual
straight OCuLink SFF-8611 connectors
Used to connect Trimode RAID AICs to HSBP PCIe #0 & PCIe #1 and PCIe #2 & PCIe
#3
Description
Riser 3 (1 cable included). Contains
