Intel R2000WF Configuration Manual page 45

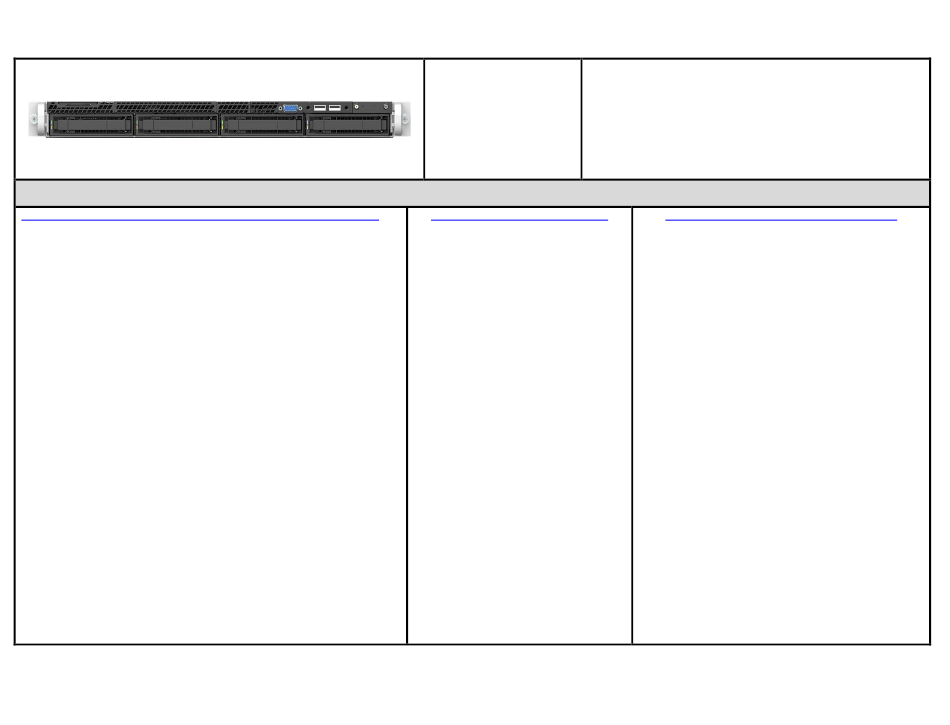

Intel Product Code (iPC): R1304WF0YS
1U – Intel® Server Board S2600WF0, 4 x 3.5" HDD or 4 x 2.5" SSD
SAS/SATA front mount drives
Intel product code R1304WF0YS includes the following components:
(1) –1U Chassis with Quick Reference Label affixed to top cover
(1) – Intel® Server Board S2600WF0 (No onboard LAN) – iPC S2600WF0
(2) – Riser card assembly with 1 slot PCIe x16 riser card – iPC
F1UL16RISER3
(4) – 3.5" Hot-swap drive bays with drive carriers and drive blanks:
Includes (1) 12 Gb SAS backplane – iPC FR1304S3HSBP
•
Includes (4) 3.5" hot swap drive tool less carriers – iPC
•
FXX35HSCAR2
(1) – Standard control panel assembly
• board only – iPC FXXFPANEL2
260mm FP Cable – iPN J25698-xxx
•
(1) – Front I/O Panel assembly (VGA and 2 x USB)
• 620mm USB3.0 cable – iPN H76899-xxx
400mm Video cable – iPN H62114-xxx
•
(1) – 150mm Backplane I2C cable – iPN H91171-xxx
(1) – 850mm MiniSAS HD Cable – iPC AXXCBL850HDHRT
(1) – 350mm Backplane power cable – iPN H82100-xxx
(1) – Air duct – iPN H90054-xxx
(6) – Dual rotor system fans – iPC FR1UFAN10PW
(8) – DIMM slot blanks – iPN G75158-00x
(1) – Chassis Stiffener Bar – iPN J16623-xxx
(1) – 1100W power supply module - iPC AXX1100PCRPS
(2) – CPU heat sinks, 39 fin passive – iPN J39509-xxx
(2) – CPU heat sink "No CPU" Label inserts – iPN J16115-xxx
(2) – Standard CPU Carrier – iPN H72851-xxx
(1) – Power supply bay blank insert
(2) – AC Power Cord retention strap assembly – iPN H23961-00x
Spares for each screw type included
Intel® Server S2600WF Product Family Configuration Guide and Spares/Accessories List
Intel® Server System Product Definition and Configuration Requirements/Options
Order Code Information:
Product Type: L6 Integrated System
Chassis Form Factor: 1U rack mount
MM# - 952626
Chassis dimensions: L=712mm, W=439mm, H=43.2mm
UPC – 00735858344715 Packaged Gross Weight: 20.6 Kgs, 45.32 Lbs
Un-packaged Net Weight: 12.3 Kgs, 27.1 Lbs
EAN – 5032037105422
Outer Box Dimensions: L= 983mm, W=577mm, H=260mm
MOQ – 1
Required Items – Sold Separately:
Rack Mount Kit – See Chapter 5.8 for
•
available options
1 or 2 Intel® Xeon® processor
•
Scalable family
DDR4 memory (RDIMM or LRDIMM)
•
• Power Cord(s) – See Chapter 2.3
Optional Intel Accessories – Sold Separately
Note: By default the front drive bays are cabled to
Onboard SATA only ports. An add-in SAS card or
Module is needed to support SAS devices.
iPC AXX1100PCRPS – 2nd 1100W AC Power
•
supply module – to support power redundancy
• Intel® OCP Module - See Chapter 5.5 for available
options
• Intel® 12G SAS RAID module + RMFBU - See
Chapter 5.6 for available options
• SAS Data cable – Depending on the location of the
SAS Data controller, a new data cable may be
necessary. See Chapter 4
• iPC RKSATA4R5 – Embedded SATA ESRT2 SW
RAID 5 support key
• Storage Drives
See Chapter 5 for all available accessory options.
45
