Intel R2000WF Configuration Manual page 40

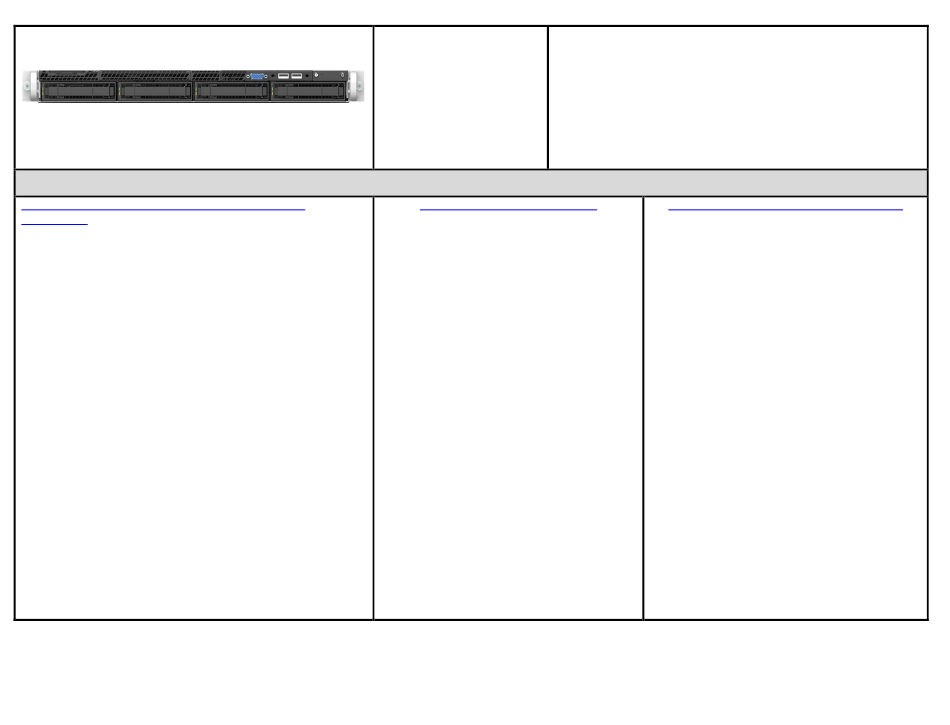

Intel Product Code (iPC): R1304WFXXX
1U – 4 x 3.5" HDD or 4 x 2.5" SSD SATA/SSD front mount
drives
Intel product code R1304WFXXX includes the following
components:
(1) – 1U Chassis with Quick Reference Label affixed to top cover
(4) – 3.5" Hot-swap drive bays with drive carriers and drive blanks
includes (1) 12 Gb SAS backplane – iPC FR1304S3HSBP
•
• includes (4) 3.5" hot swap drive tool less carriers – iPC
FXX35HSCAR2
(1) – Pre-installed Standard Control Panel assembly
(board only – iPC FXXFPANEL2)
•
260mm FP Cable iPN J25698-xxx
•
(1) – Pre-installed Front I/O Panel assembly (1 x VGA and 2 x USB)
620mm USB 3.0 cable – iPN H76899-xxx
•
• 400mm Video cable – iPN H62114-xxx
(1) – Server board to backplane 150mm I2C cable – iPN H91171-xxx
(1) – 850mm MiniSAS HD cable – iPC AXXCBL850HDHRT
(1) – 350mm Backplane power cable – iPN H82100-xxx
(1) – Air duct – iPN H90054-xxx
(6) – Dual rotor system fans – iPC FR1UFAN10PW
(2) – CPU heat sinks, 39 fin passive – iPN J39509-xxx
(2) – CPU heat sink "No CPU" label inserts – iPN J16115-xxx
(2) – Standard CPU Carriers – iPN H72851-xxx
(2) – 1 slot PCIe x16 Riser Card – iPN H88399-xxx
(8) – DIMM slot blanks – iPN G75158-xxx
(1) – Chassis Stiffener Bar – iPN J16623-xxx
(1) – Power Supply Bay blank insert
(2) – AC Power Cord retention strap assembly – iPN H23961-00x
Server board and riser card mounting screws
Spares for each screw type included
Intel® Server S2600WF Product Family Configuration Guide and Spares/Accessories List
Order Code Information:
MM# - 952622
UPC - 00735858344722
EAN - 5032037105439
MOQ - 1
Intel® Server Chassis Product Definition and Configuration Requirements
Intel® Server Board S2600WF (choose one)
• iPC S2600WFT
• iPC S2600WF0
• iPC S2600WFQ
Power supply module(s) – (Choose one type) two
common modules required for redundancy
• iPC AXX1100PCRPS – 1100W AC Power Supply
• iPC AXX750DCCRPS – 750 W DC Power Supply
Power Cord(s) – See Chapter 2.3
Rack Mount Kit – See Chapter 5.8
1 or 2 Intel® Xeon® Processor Scalable family
ECC DDR4 memory (RDIMM or LRDIMM)
Product Type: Chassis Only
Chassis Form Factor: 1U rack mount
Chassis dimensions: L=712mm, W=439mm, H=43.2mm
Packaged Gross Weight: 19 Kgs, 41.9 Lbs
Un-packaged Net Weight: 10.3 Kgs, 22.7 Lbs
Outer Box Dimensions: L=983mm, W=577mm, H=260mm
Required Items – Sold Separately:
module
Module
•
Optional Intel Accessories – Sold Separately:
• Intel® OCP Module – See Chapter 5.5 for options
• Intel® SAS RAID Card / Module – See Chapter 5.6
for options
• SAS/SATA Data cables – Cable selection is
dependent on desired storage option. See Chapter
4 for available cable options
• iPC AXXRMM4LITE2 – Intel® Remote Management
Module Lite "RoHS free. For advanced
management features
• Storage Drives
See Chapter 5 for all available accessory options.
40
