Chapter 4. Serial Communications
4.1.1c

HART AC Powered Meter Wiring

Vortex Meter
R load,
Current
250 ohm
Meter
minimum
Field Connection
Remote Connection
for Communicator
for Communicator

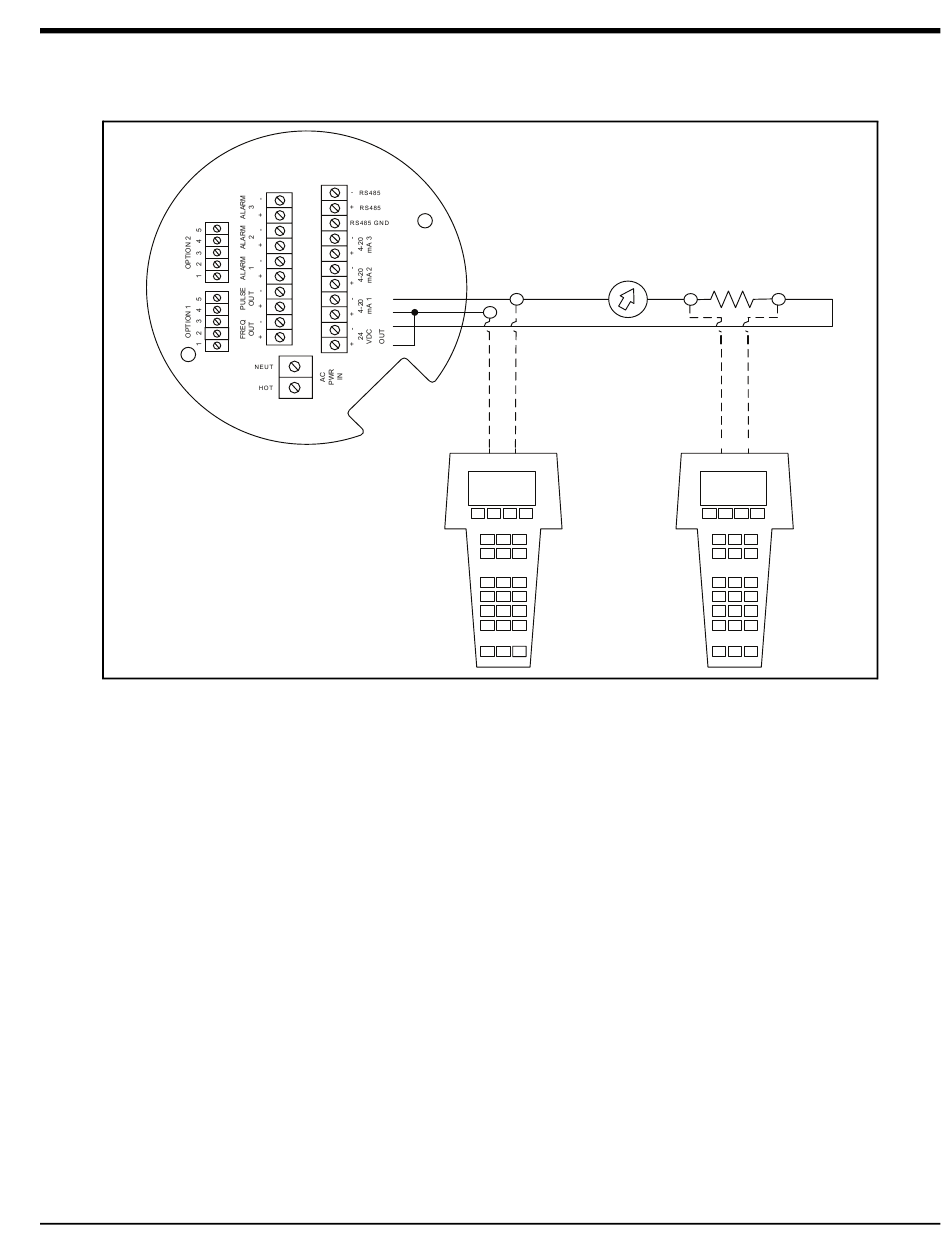

Figure 69: HART AC Powered Meter Wiring
PanaFlow™ MV80 & MV82 User's Manual
75
