2.6.3 Frequency Output Connections (cont.)

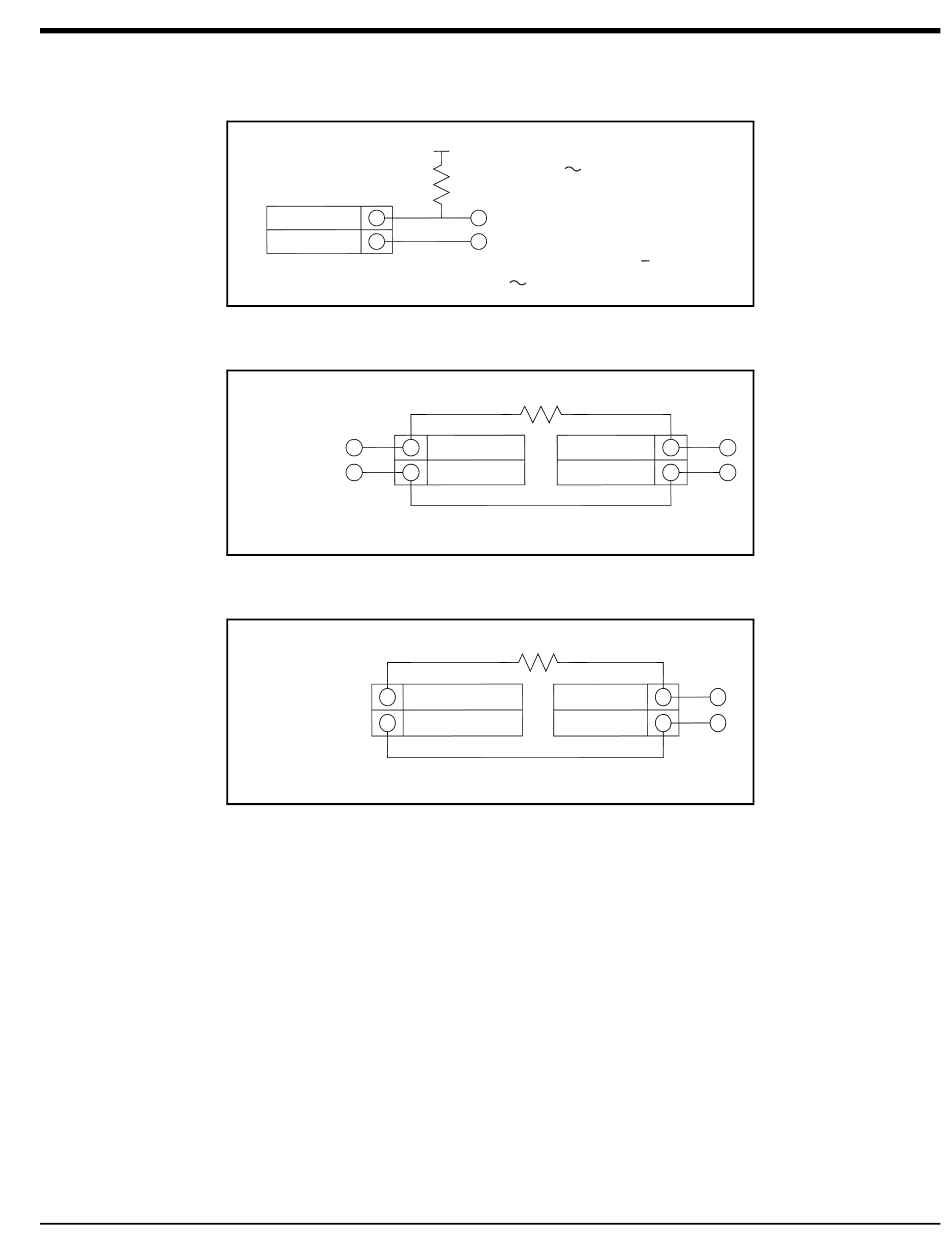

Figure 35: Isolated Frequency Output Using External Power Supply
Figure 36: Non-Isolated Frequency Output Using Input Power Supply
Figure 37: Isolated Frequency Output Using Meter-Provided Power Supply
PanaFlow™ MV80 & MV82 User's Manual
AC or DC powered
meters
Freq Out +
Freq Out –
R current limit
DC Power
DC Common
DC Powered meters only
Freq. Out voltage = + Power voltage for meter
+ 24 VDC Out
– 24 VDC Out
AC units only
Meter provided DC Power
Freq. Out voltage = + Power voltage for meter
+V
R current limit 10K
Freq. Out voltage = +V
Select resistor so that current
through Freq. Out < 40mA
10K
R current limit ~10K
+ Pwr Freq Out +
– Pwr Freq Out –
R current limit ~10K
Freq Out +
Freq Out –
