Chapter 2. Installation

2.6.1 Input Power Connections

To access the wiring terminal blocks, locate and loosen the small set screw which locks the small enclosure cover in
place. Unscrew the cover to expose the terminal block.
2.6.1a

AC Power Wiring

CAUTION!
The AC power wire size must be 10 to 20 AWG with 1/4 inch (7 mm) of insulation stripped from each conductor. The
wire insulation temperature must meet or exceed 85°C (185°F). Connect 100 to 240 VAC (5 W maximum) to the
Hot and Neut terminals on the terminal block (see Figure 29 below), and connect the ground wire to the safety ground
lug . Torque all connections to 4.43 to 5.31 in-lb (0.5 to 0.6 Nm). Use a separate conduit entry for signal lines to
reduce the possibility of AC noise interference.
2.6.1b

DC Power Wiring

CAUTION!
The DC power wire size must be 10 to 20 AWG with 1/4 inch (7 mm) of insulation stripped from each conductor. The
wire insulation temperature must meet or exceed 85°C (185°F). Connect 18 to 36 VDC (300 mA, 9 W maximum) to
the and
+DC Pwr –DC Pwr
4.43 to 5.31 in-lb (0.5 to 0.6 Nm).
38
The AC wire insulation temperature rating must meet or exceed 85°C (185°F).
100 to 240VAC @ 5 watts max.
Chassis screw safety
ground must be used
for proper operation.

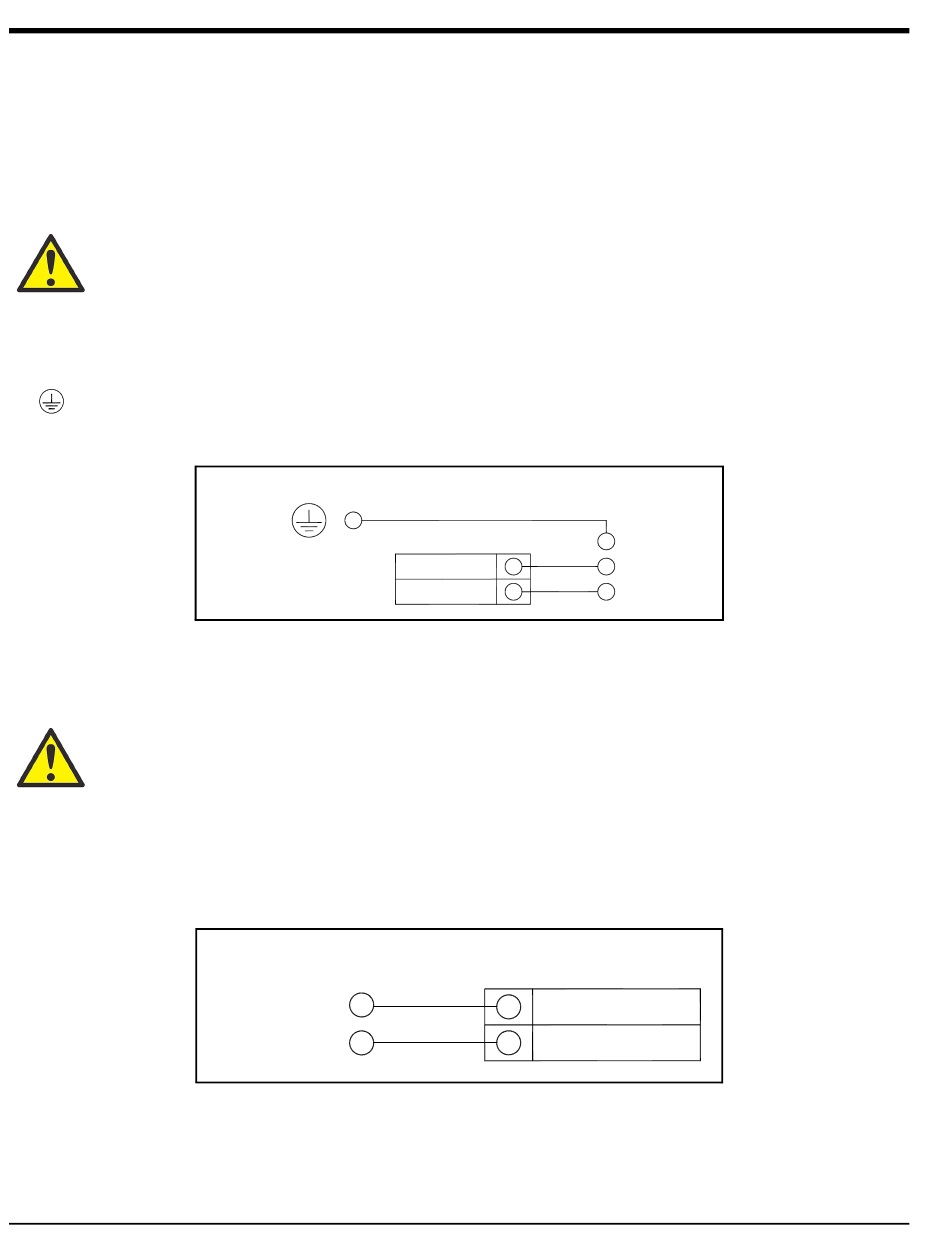

Figure 29: AC Power Connections
The DC wire insulation temperature rating must meet or exceed 85°C (185°F).
terminals on the terminal block (see Figure 30 below). Torque all connections to
DC Power
DC Common
Figure 30: DC Power Connections
Hot
Neut
18 to 36 VDC @300 mA Max.
+ Pwr
– Pwr
AC Ground
AC Line
AC Neutral
