Chapter 2. Installation

2.6.6 Remote Electronics Wiring

The remote electronics enclosure should be mounted in a convenient, easy to reach location. For hazardous location
installations, make sure to observe agency requirements for installation. Allow some slack in the interface cable
between the junction box and the remote electronics enclosure. To prevent damage to the wiring connections, do not
put stress on the wire connections at any time.
The meter is shipped with temporary strain relief glands at each end of the cable. Disconnect the cable from the meter's
terminal block inside the junction box only (see Figure 44 below). Do not disconnect the cable from the remote
electronics enclosure. Remove both strain relief glands and install appropriate conduit entry glands and conduit. After
the installation is complete, re-connect each labeled wire to the corresponding terminal position on the junction box
terminal block. Make sure to connect the shield for each wire pair shield.
Note: Incorrect connections will cause the meter to malfunction.
Note: The numeric code in the junction box label matches the wire labels.

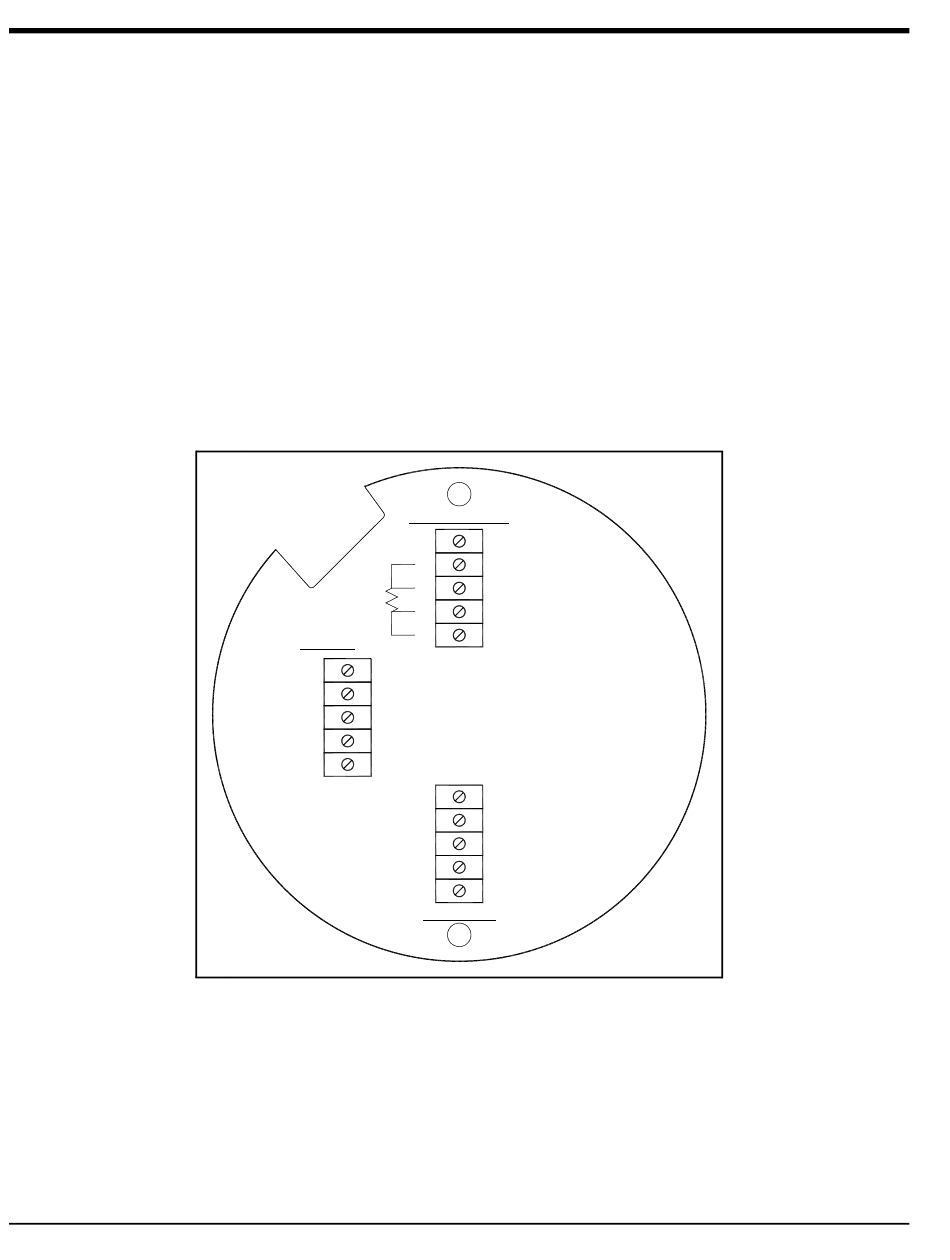

Figure 44: High Power Flowmeter Junction Box Sensor Connections
46
TEMPERATURE
SHIELD
E
T
1
1
S
T
1
2
S
T
2
3
E
T
2
4
VORTEX
PWR
BLK 1
GND
RED 1
SENSOR V
BLK 2
1
SENSOR V
RED 2
2
SHIELD
SHLD 1&2
SHIELD
P
1
P
2
P
3
P
4
PRESSURE
SHLD 5&6
RED 6
BLK 6
BLK 5
RED 5
SHLD 3&4
BLK 3
BLK 4
RED 4
RED 3
PanaFlow™ MV80 & MV82 User's Manual
