3.3.10 The Units Menu

Use the Units Menu (see Figure 62 below) to configure the flowmeter with the desired units of measurement. These are
global settings and determine what appears on all screens.
PanaFlow™ MV80 & MV82 User's Manual
ENTER
Run Mode Password
ENTER
Units
Menu
Mass Flow Unit
lb, Ston, Lton, gram,
kg, Mton, scf, nm3
sec, min, hr, day
Volume Flow Unit
gal, MilG, ImpG, bbl,
lit, MilL, m3, ft3
sec, min, hr, day
Temperature Unit
Deg F, Deg C,
Kelvin, Rankine
Energy Unit
BTU, MBTU, MMBT,
MWHr, kWHr, HPHr,
MCal, MJ
sec, min, hr, day
Density Unit
lbm/ft3, kg/m3, gm/cc
lbm/gal, gm/mlit, kg/lit,
gm/lit, lbm/in3
Pressure Unit
psi, inH2O, ftH2O,
mmH2O, in HG, mmHG
ATM, Bar, mBar
gm/cm2, kg/cm2,
Pascal, MegaPa, Torr,
4inH2O, 4mmH2O
Gauge Pressure Unit
Absolute/Gauge
Atm. Pressure
14.6959

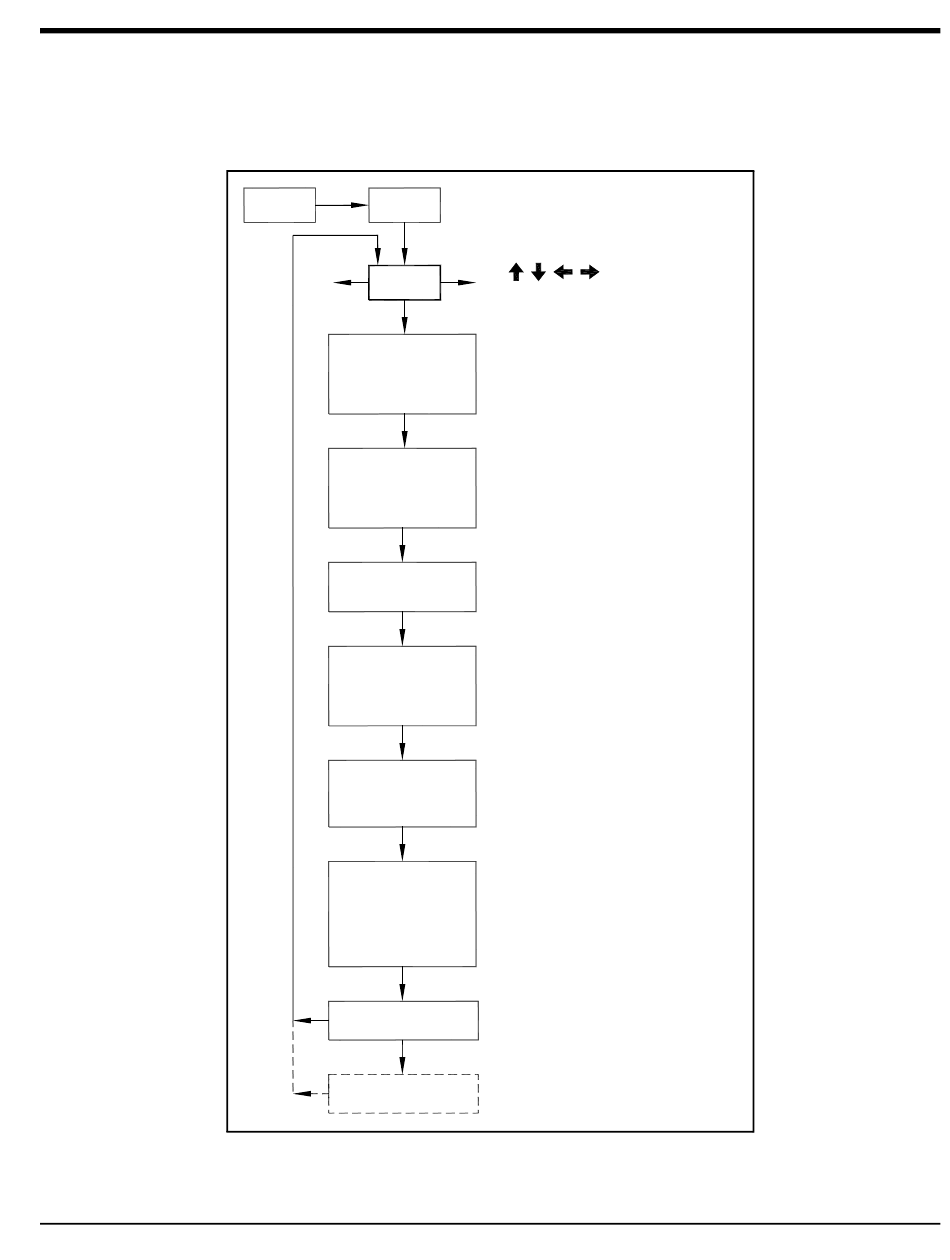

Figure 62: The Units Menu
Use
keys to access menus
Ston = Short Ton = 2000 lb
Lton = Long Ton = 2240 lb
Mton = Metric Ton = 1000 kg
MilG = Million gallons
Igal = ImperiaI gallon = 1.20095 US gallons
bbl = barrels = 42 US gallons
MilL = Million liters
MBTU = Thousand BTU
MMBTU = Million BTU
4inH2O and 4mmH2O are
based on water at 4°C.
Transducer reads in Absolute.
If Gauge is desired, atmospheric
pressure at meter is needed.
Menu is activated only if
Gauge Pressure is chosen.
Enter the value in PSIA.
