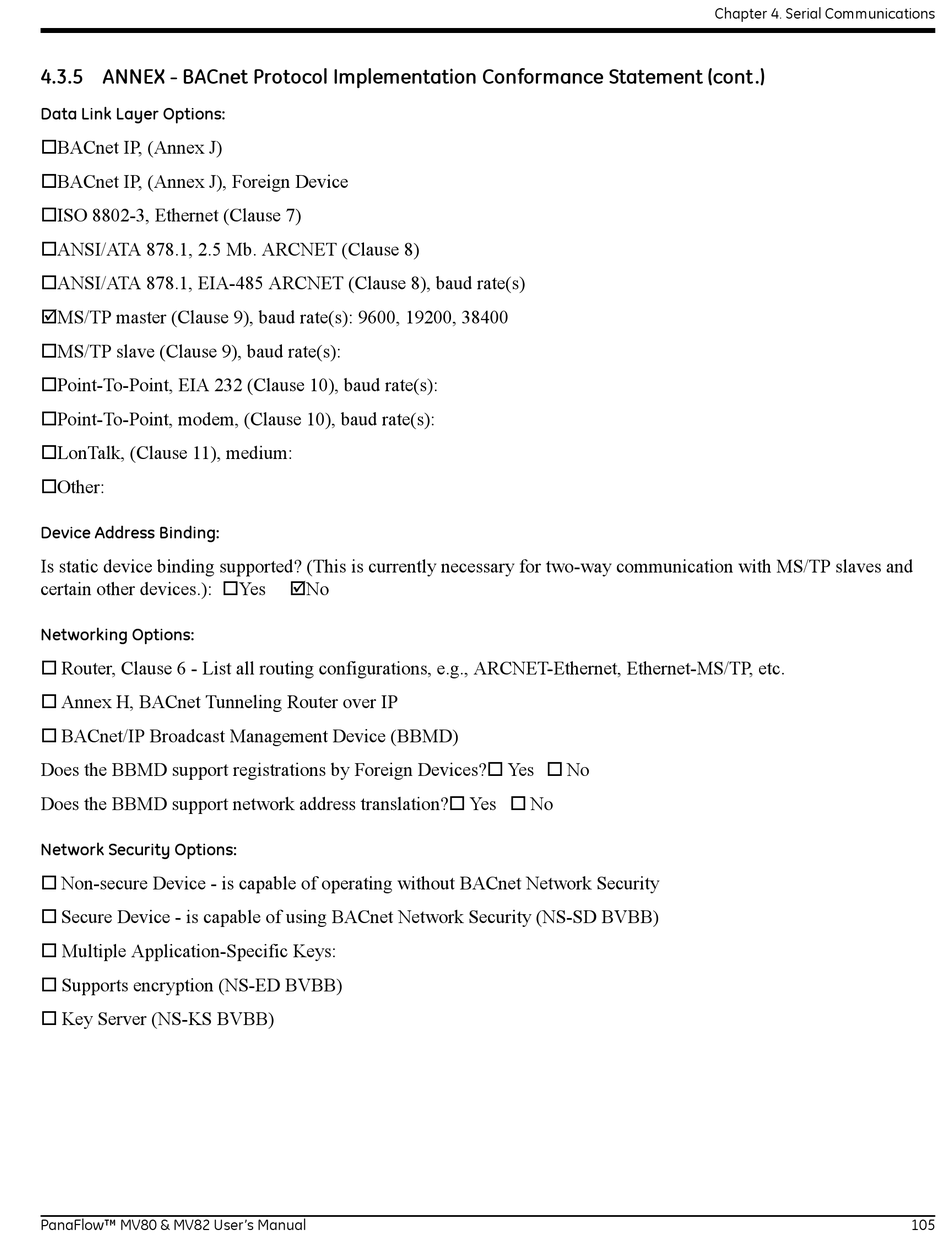

GE PanaFlow MV80 User Manual page 117

Chapter 4. Serial Communications
4.3.5 ANNEX - BACnet Protocol Implementation Conformance Statement (cont.)
Data Link Layer Options:
BACnet IP, (Annex J)
BACnet IP, (Annex J), Foreign Device
ISO 8802-3, Ethernet (Clause 7)
ANSI/ATA 878.1, 2.5 Mb. ARCNET (Clause 8)
ANSI/ATA 878.1, EIA-485 ARCNET (Clause 8), baud rate(s)
MS/TP master (Clause 9), baud rate(s): 9600, 19200, 38400
MS/TP slave (Clause 9), baud rate(s):
Point-To-Point, EIA 232 (Clause 10), baud rate(s):
Point-To-Point, modem, (Clause 10), baud rate(s):
LonTalk, (Clause 11), medium:
Other:
Device Address Binding:
Is static device binding supported? (This is currently necessary for two-way communication with MS/TP slaves and
certain other devices.): Yes No
Networking Options:
 Router, Clause 6 - List all routing configurations, e.g., ARCNET-Ethernet, Ethernet-MS/TP, etc.
 Annex H, BACnet Tunneling Router over IP
 BACnet/IP Broadcast Management Device (BBMD)
Does the BBMD support registrations by Foreign Devices? Yes  No
Does the BBMD support network address translation? Yes  No
Network Security Options:
 Non-secure Device - is capable of operating without BACnet Network Security
 Secure Device - is capable of using BACnet Network Security (NS-SD BVBB)
 Multiple Application-Specific Keys:
 Supports encryption (NS-ED BVBB)
 Key Server (NS-KS BVBB)
PanaFlow™ MV80 & MV82 User's Manual 105
