Chapter 3. Operating Instructions
3.1
Flowmeter Display/Keypad (cont.)
Figure 52 below shows a picture of the display/keypad. From Run Mode, the ENTER key enables access to the Setup
Menus through a password screen. Within the Setup Menus, pressing ENTER activates the current field. To set new
parameters, press the ENTER key until an underline cursor appears. Use the
keys to select new parameters.
The
keys advance through each screen of the current menu. When changing a system parameter, all
keys are available to enter new parameters. Press ENTER to continue.
Note: All outputs are disabled when using the Setup Menus. If changes are not allowed, ENTER has no effect.
The EXIT key is active within the Setup Menus. When using a Setup Menu, EXIT returns you to the Run Mode. If you are
changing a parameter and make a mistake, EXIT enables you to start over.

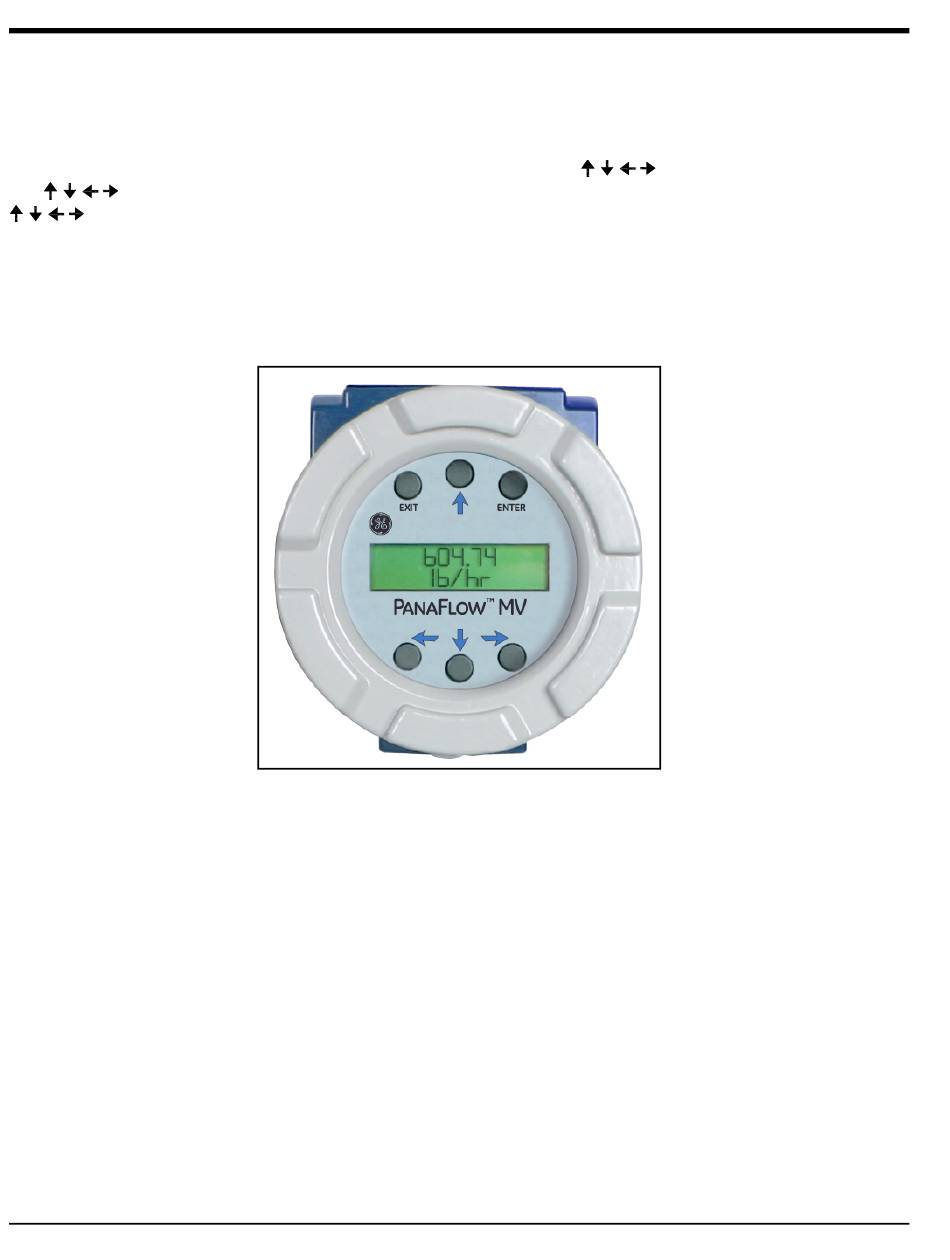

Figure 52: Flowmeter Display/Keypad
52
