Chapter 2. Installation

2.4.1 Display/Keypad Adjustment (All Meters)

To adjust the display/keypad position, refer to Figure 17 below and complete the following steps:
CAUTION!
make sure to observe proper handling precautions required for static-sensitive components.
1. Disconnect the power from the flowmeter.
2. Loosen the small set screw which secures the electronics enclosure cover. Unscrew and remove the cover.
3. Loosen the 4 captive screws.
4. Carefully pull the display/microprocessor circuit board away from the meter standoffs. Make sure not to
damage the connected ribbon cable.
5. Rotate the display/microprocessor circuit board to the desired position. The maximum allowable rotation is
two positions left or two positions right (180°).
6. Align the circuit board with the captive screws, and check that the ribbon cable is folded neatly behind the
board with no twists or crimps.
7. Tighten the screws. Replace the cover and set screw, and restore power to the meter.
30

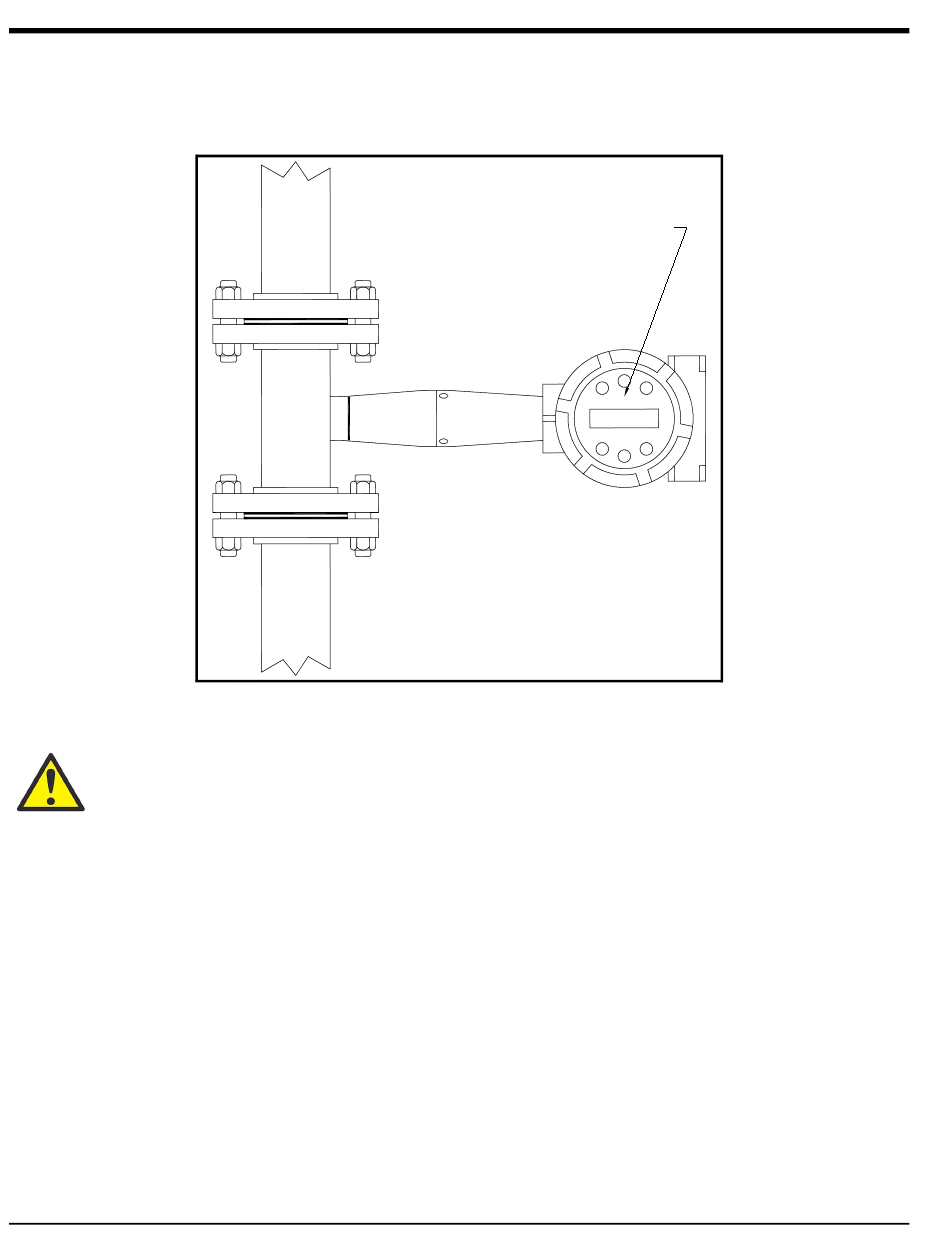

Rotate display/keypad in 90° increments
(maximum 180° from original position).
Figure 17: Display/Keypad Viewing Adjustment
The electronics boards are electrostatically sensitive. Wear a grounding wrist strap and
