Chapter 4. Serial Communications

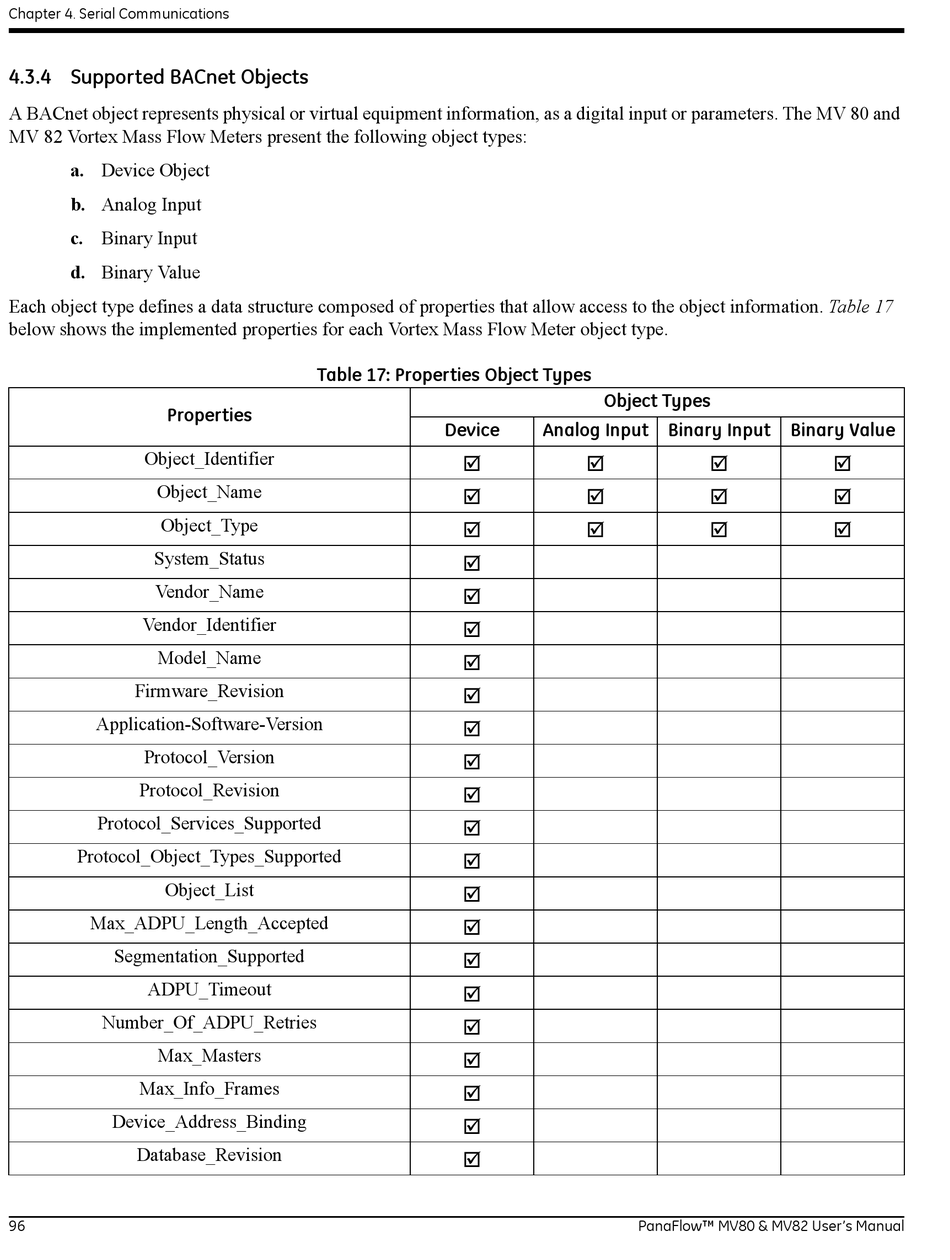

4.3.4 Supported BACnet Objects
A BACnet object represents physical or virtual equipment information, as a digital input or parameters. The MV 80 and
MV 82 Vortex Mass Flow Meters present the following object types:
a. Device Object
b. Analog Input
c. Binary Input
d. Binary Value
Each object type defines a data structure composed of properties that allow access to the object information. Table 17
below shows the implemented properties for each Vortex Mass Flow Meter object type.
Properties
Object_Identifier
Object_Name
Object_Type
System_Status
Vendor_Name
Vendor_Identifier
Model_Name
Firmware_Revision
Application-Software-Version
Protocol_Version
Protocol_Revision
Protocol_Services_Supported
Protocol_Object_Types_Supported
Object_List
Max_ADPU_Length_Accepted
Segmentation_Supported
ADPU_Timeout
Number_Of_ADPU_Retries
Max_Masters
Max_Info_Frames
Device_Address_Binding
Database_Revision
96
Table 17: Properties Object Types
Device
Object Types
Analog Input Binary Input Binary Value
PanaFlow™ MV80 & MV82 User's Manual
