2.6.7b Optional External 4-20 mA Input Wiring (cont.)
Refer to Figure 49 below to wire the external 4-20 mA input into the flowmeter using power from the 24 VDC output
of an AC powered meter.
2.6.7c

Optional Contact Closure Input Wiring

Refer to Figure 50 below to wire an external switch input into the flowmeter. The meter is configured to have Option 1
used for the external input. If the above switch is used to remotely reset the totalizer, a pushbutton switch with a
momentary contact closure is recommended.
PanaFlow™ MV80 & MV82 User's Manual
Option 1
1 2
AC units only.
Meter provided DC power.
+ 24 VDC OUT
– 24 VDC OUT

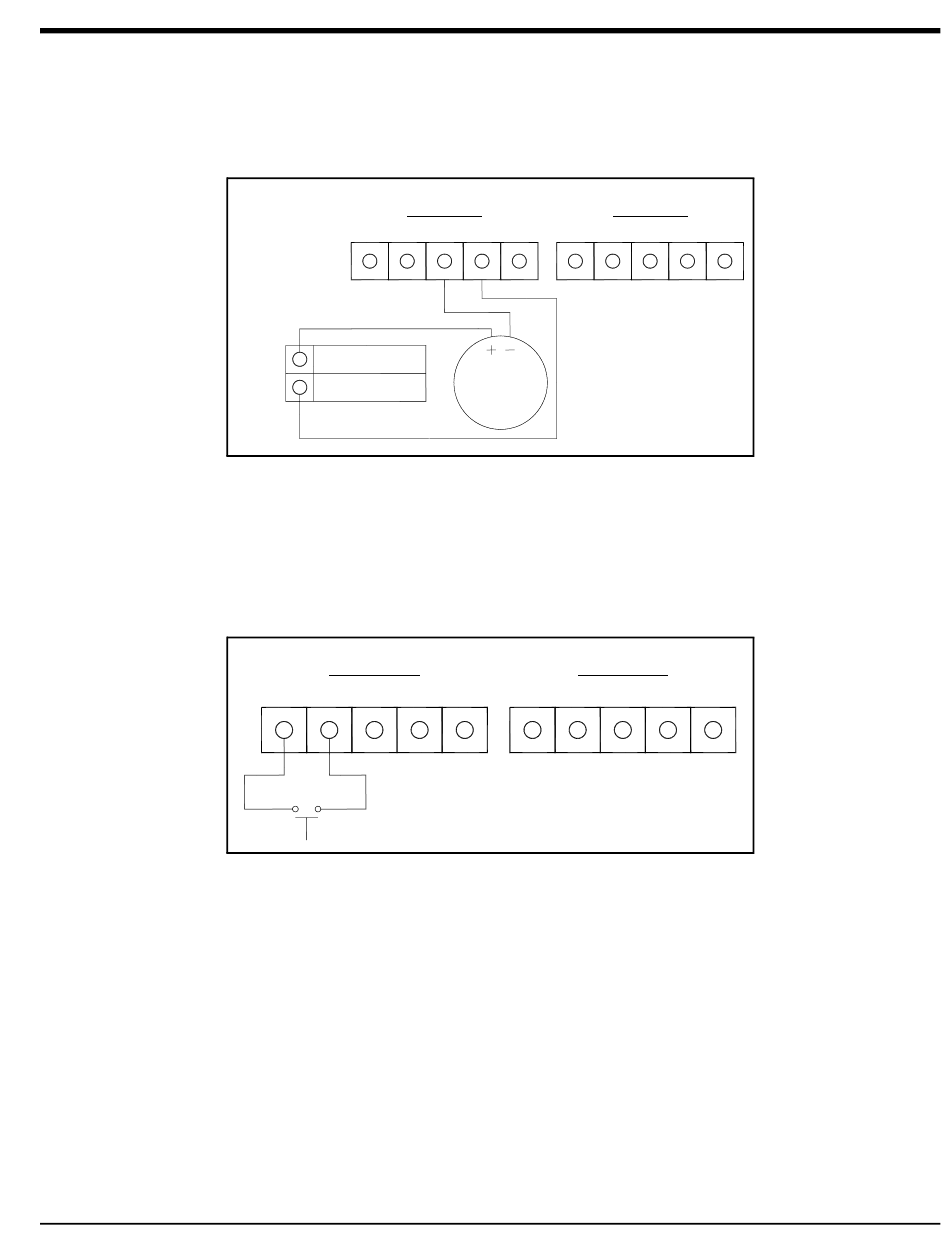

Figure 49: External 4-20 mA Input Wiring - AC Powered Meter
Option 1
1 2 3 4
Figure 50: Optional Contact Closure Input Wiring
Option 2
3 4 5 1 2
Ext. 4-20 mA
Input Device
Option 2
5 1 2 3
Chapter 2. Installation
3 4 5
4 5
49
