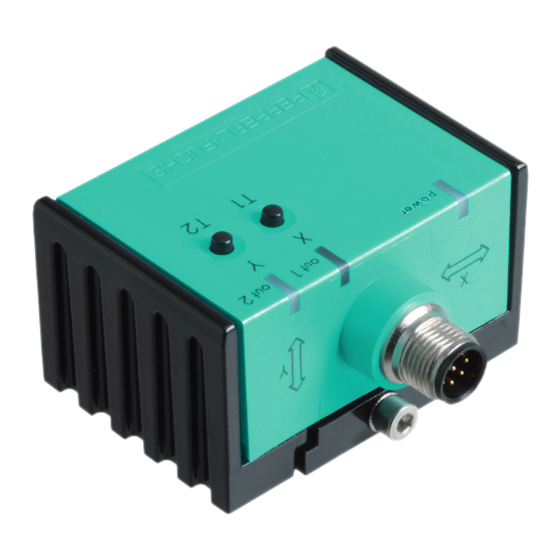

Pepperl+Fuchs INY360D-F99-2I2E2-V17 Manual

Inclination sensor
Model number
INY360D-F99-2I2E2-V17
Features
• Measuring range 0 ... 360°
• Analog output 4 mA ... 20 mA
• Evaluation limits can be taught-in
• 2 programmable switch outputs
• High shock resistance
• e1-Type approval
• Increased noise immunity 100 V/m

Electrical connection

Standard symbol/Connection:
1
+U
2
Out 2 (Y)
I
4
Out 1 (X)
6
Analogue output Y
7
Analogue output X
5
GND
3
-U
B
8
n.c.
Refer to "General Notes Relating to Pepperl+Fuchs Product Information".
Pepperl+Fuchs Group USA: +1 330 486 0001
www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com

Technical Data

General specifications
Type
Measurement range
Absolute accuracy
Response delay
Resolution
Repeat accuracy
Temperature influence
Functional safety related parameters
MTTF
d
Mission Time (T
Diagnostic Coverage (DC)
Indicators/operating means
Operating display
TEACH-IN indication
Button
Switching state
Electrical specifications
Operating voltage U
No-load supply current I
Time delay before availability t
Switching output
Output type
Operating current I
Voltage drop
Analog output
Output type
Load resistor
Ambient conditions
Ambient temperature
Storage temperature
Mechanical specifications
Connection type
Housing material
Protection degree
Mass
Compliance with standards and
directives
Standard conformity
Shock and impact resistance
B
Standards
Approvals and certificates
CSA approval
e1 Type approval
EMC Properties
Emitted interference and interference immunity in accordance with motor vehicle directive 2006/28/EG (e1 Type approval)
Interference immunity in accordance with
DIN ISO 11452-2: 100 V/m
Frequency band 20 MHz up to 2 GHz
Mains-borne interference in accordance with ISO 7637-2:
Pulse
Severity level
Failure criterion
EN 61000-4-2:
Severity level
EN 61000-4-3:
Severity level
EN 61000-4-4:
Severity level
EN 61000-4-6:
Severity level
EN 55011:
Germany: +49 621 776 4411
fa-info@de.pepperl-fuchs.com
Inclination sensor, 2-axis
0 ... 360 °
≤ ± 0.5 °
≤ 25 ms
≤ 0.1 °
≤ ± 0.1 °
≤ 0.027 °/K
300 a
) 20 a
M
0 %
LED, green
2 LEDs yellow (switching status), flashing
2 push-buttons ( Switch points programming , Evaluation
range programming )
2 yellow LEDs: Switching status (each output)
10 ... 30 V DC
B
≤ 25 mA
0
≤ 200 ms
v
2 switch outputs PNP, NO , reverse polarity protected ,
short-circuit protected
≤ 100 mA
L
≤ 3 V
2 current outputs 4 ... 20 mA
(one output for each axis)
0 ... 200 Ω at U
0 ... 500 Ω at U
-40 ... 85 °C (-40 ... 185 °F)
-40 ... 85 °C (-40 ... 185 °F)
8-pin, M12 x 1 connector
PA
IP68 / IP69K
240 g
100 according to DIN EN 60068-2-27
EN 60947-5-2:2007
IEC 60947-5-2:2007
cCSAus Listed, General Purpose, Class 2 Power Source
2006/28/EG
1 2a 2b 3a 3b 4
III III III III III III
C A C A A C
CD: 8 kV / AD: 15 kV
IV IV
30 V/m (80...2500 MHz)
IV
2 kV
III
10 V (0.01...80 MHz)
III
Klasse A
Singapore: +65 6779 9091
fa-info@sg.pepperl-fuchs.com
INY360D-F99-2I2E2-V17
= 10 ... 18 V
B
= 18 ... 30 V
B
1
