GRAPHTEC midi LOGGER GL220 User Manual page 76

CHAPTER 3 Settings and Measurement

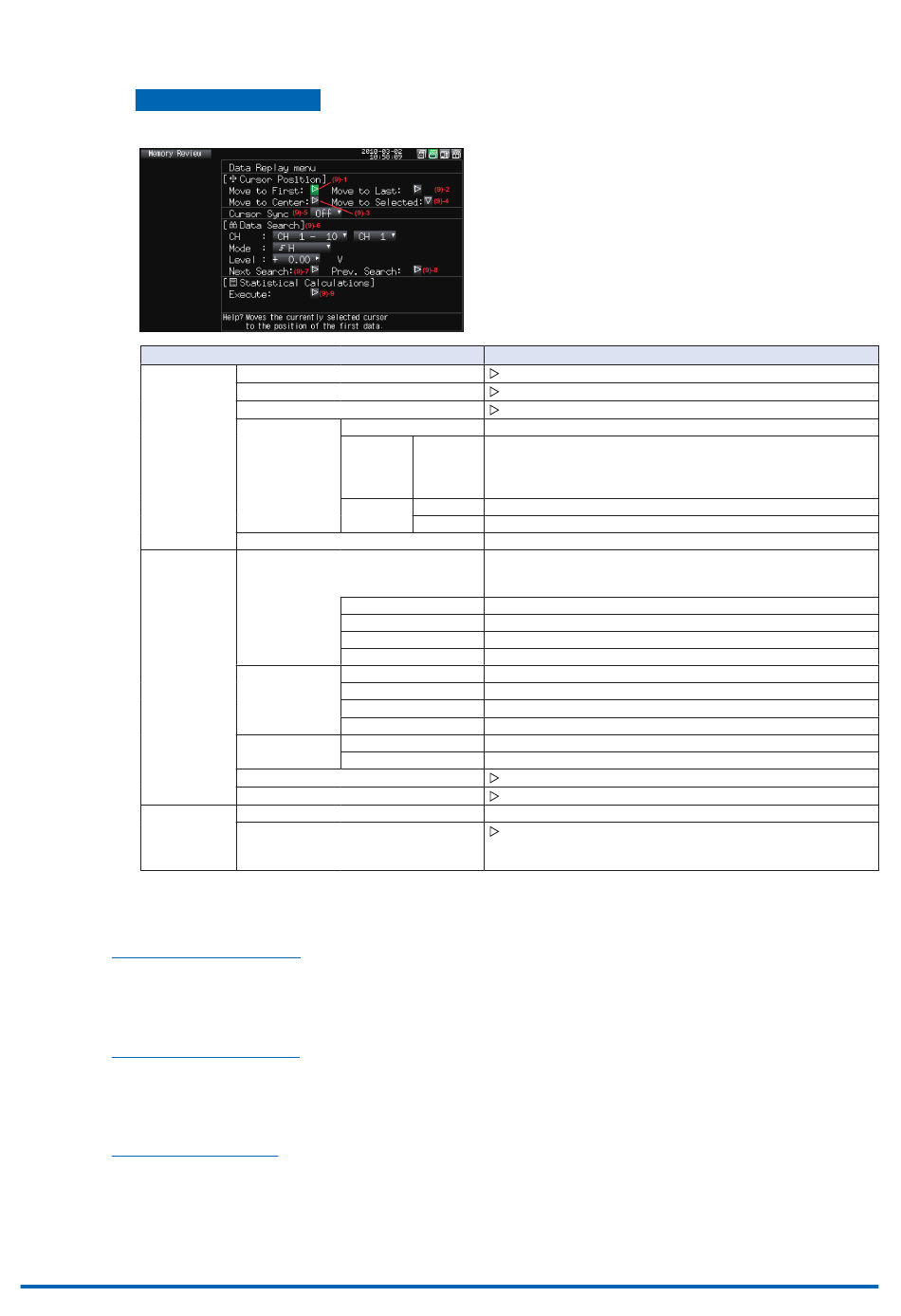

(9) Data replay menu
Data replay menus are displayed by pressing the MENU key during replay.
Cursor
Position
Data search
Statistical
calculation
between
cursors
(9)-1 Move to First Data
Executing this option moves the currently selected cursor (A or B) to the start of the data.
(9)-2 Move to Last Data
Executing this option moves the currently selected cursor (A or B) to the end of the data.
(9)-3 Move to Center
Executing this option moves the currently selected cursor (A or B) to the center of the data.
3−44
Setting
Move to First Data
Move to Last Data
Move to Center
Move to Method:
Selected Posi- [Position] Position
tion
[Time]
Cursor Synch
CH
[CH1 to CH10]
[Logic]
[Pulse]
[Alarm]
Mode [CH1 to CH10]
[Logic]
[Pulse]
[Alarm]
Level [CH1 to CH10]
Find Next
Find Previous
Function
Execute
Press right key to execute.
Press right key to execute.
Press right key to execute.
Position, Time
0 to end of data
For example, if the sampling interval is 100 ms, capture desti-
nation is the internal memory, and the number of data points
is 10000, settings up to 99.9 s are available.
Date Date from the start to end of the data
Time Time from the start to end of the data
Off, On
CH1 to 10, Logic, Pulse, Alarm
* Logic and Pulse are displayed only if the Logic Pulse func-
tion is On in the AMP settings.
CH1-10
Logic1-4
Pulse1-4
Alarm1-4
↑H, ↓L
↑H, ↓L
↑H, ↓L
Both, ↑H, ↓L
Set numeric value
Set numeric value
Press right key to execute.
Press right key to execute.
Off, Average, Max, Min, Peak, RMS
Press right key to execute.
Selections available
