CHAPTER 3 Settings and Measurement

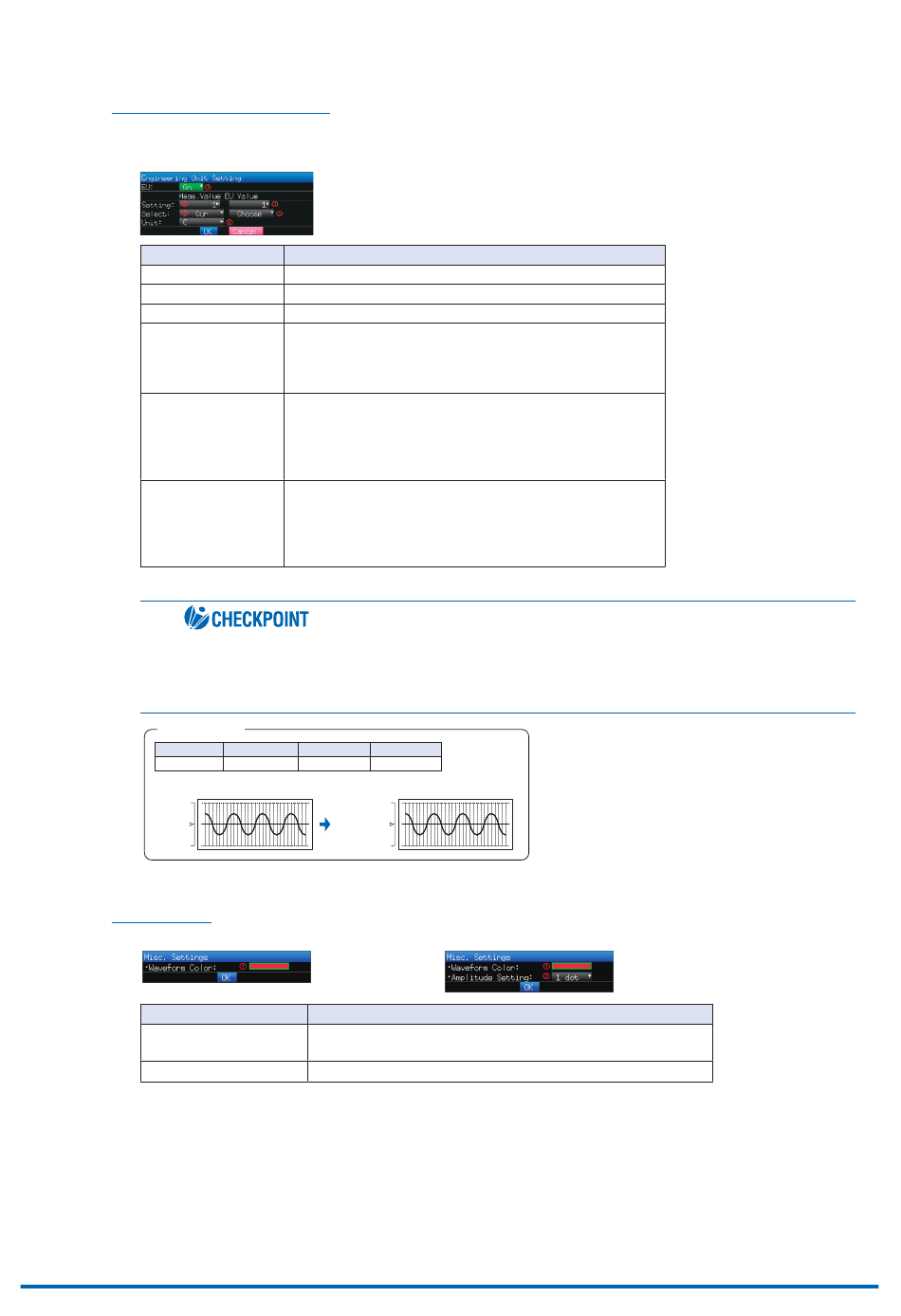

(1)-10 EU (Scaling settings)
Converts the measured signals to other units.
This setting is available only if Pulse is selected in (1)-7.
(1) EU Setting
(2) Meas. Value
(3) EU Output Value
(4) Select
(5) Choose
(6) Arbitrary Unit
Setting example
Meas. Value
1000
CH.1
0
(1)-12 Misc.
(1) Waveform Color
Setting
(2) Amplitude Setting
3−22
Setting
Sets the scaling function to ON or OFF.
Sets a value to be converted.
Sets an output value after conversion.
Selects a specific engineering unit classification.(The fol-
lowing are available.)
Current, length, area, volume, speed, acceleration, fre-
quency, weight, work, pressure, flow rate, temperature
Selects a unit to be used after conversion.
A unit displayed in this field belongs to the classification
selected in "Select."To set a unit not displayed in this field,
set arbitrary text in "Arbitrary unit." The setting selected in
this field is displayed in "Arbitrary unit."
Sets a unit to be used after conversion.
Arbitrary text consisting of alphabetical characters and
numerical values can be set as a unit. (Refer to page 3-43
for details on the text input.)When "Select" or "Choose" is
used, the setting is reflected in this field.
• If a message window opens, follow the instruction in the message to change the setting value.
• The Scaling function performs calculation using a ratio of the Meas. Value and EU Output Value
settings.
The digital display shows "++++/----" when the converted value cannot be processed by the GL220.
Dec pt
EU Output Value
+
xx.xx
1000 800
CH.1 Scaling 1
<For Logic>
Setting
0 to 31 for each of red, green, blue (RGB)
1 to 8 dots
Description
Choose
rpm
800
0
<For Pulse>
Description
