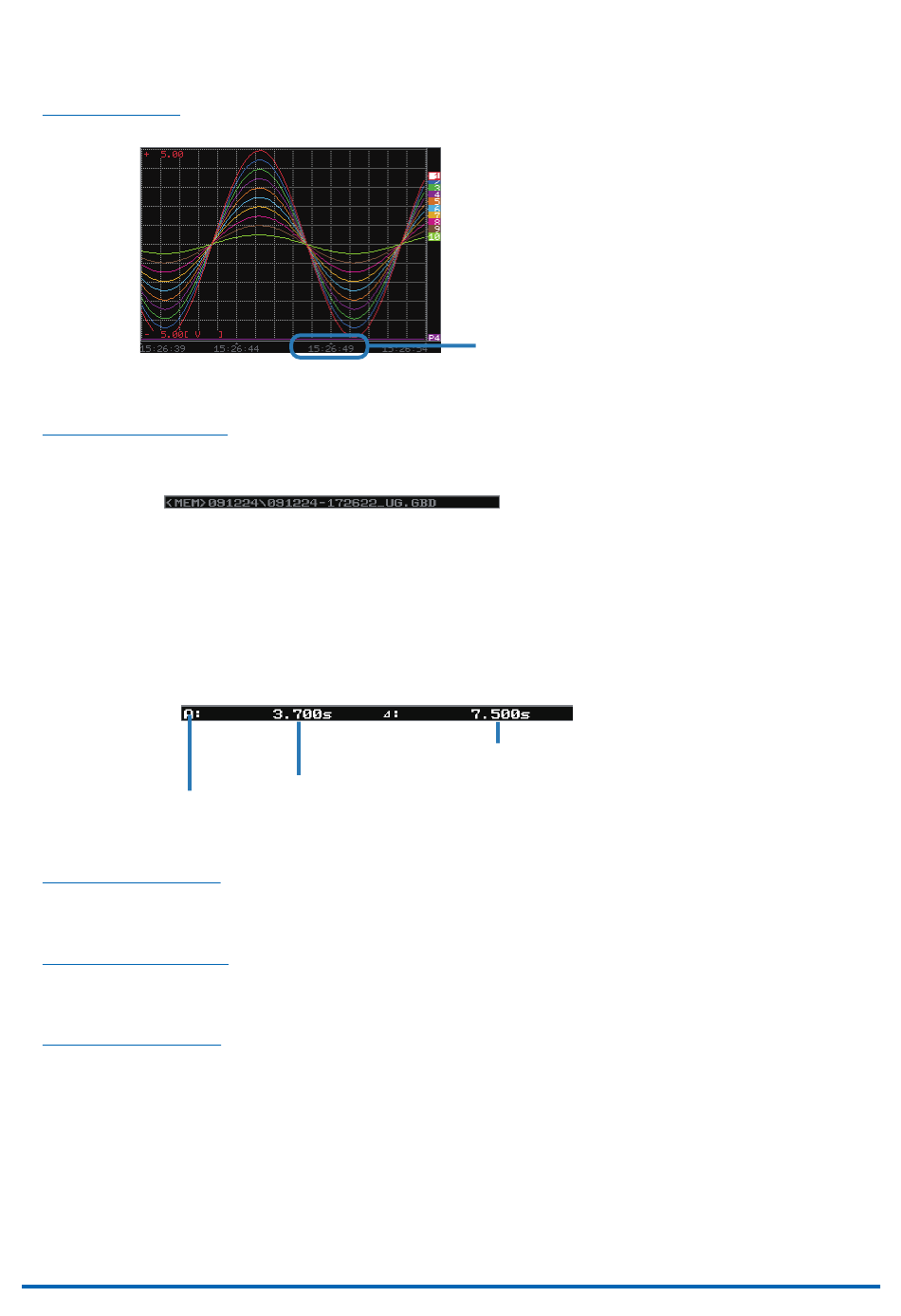

14. Time stamp
Displays the time stamp of a currently displayed waveform as time.
15. File name display
(1) During data capture
A capture file name is displayed during capture.
* If the ring capture setting is ON, a file name displayed during capture ends with "_RINGx" (x represents
a number) but the actual file name does not include "_RINGx".
In the above figure, if the ring capture is set to ON, the file name during capture will be displayed, for
example, as "<MEM>091225\091225-130620_UG_RING4.GBD" but the actually created file will be
"<MEM>091225\091225-130620_UG.GBD".
* Refer to page 3-25 for details on the ring capture setting.
(2) During data replay
Information on the time axis of the cursor is displayed during replay.
Selected cursor
16. Lower limit scale
Displays the lower limit scale of the currently active channel.
17. Waveform display
Displays the waveform of the input signal.
18. Upper limit scale
Displays the upper limit scale of the currently active channel.
Time difference between Cursors A and B
Time to which the cursor points
CHAPTER 3 Settings and Measurement
This indicator shows that the
measurement data was
captured at 15:26:49.
3−5
