CHAPTER 3 Settings and Measurement

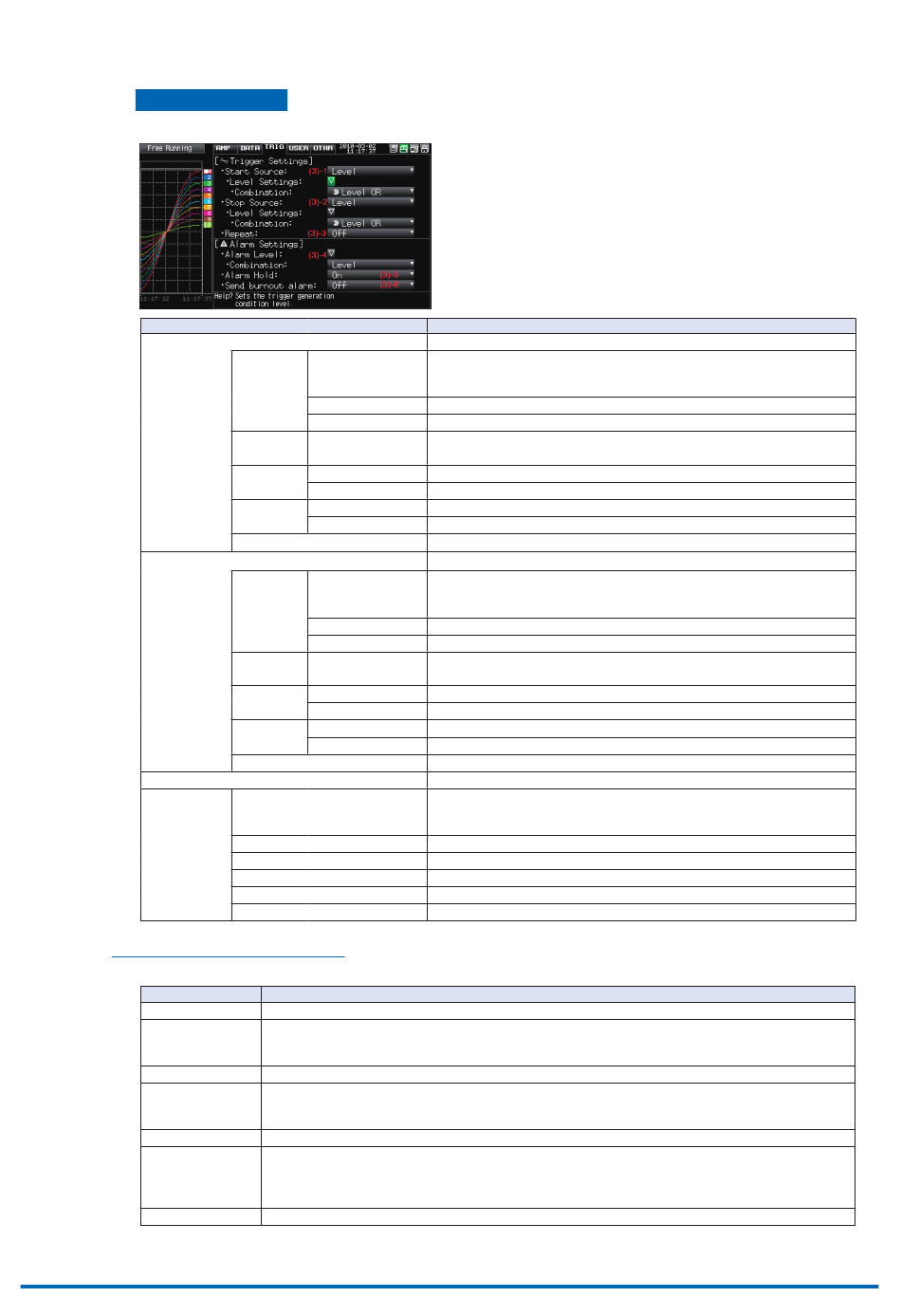

(3) TRIG settings
This menu is used to specify trigger conditions and alarms.
Start Side Source Setting
Stop Side Source Setting
Repeated Capturing
Alarm Level
Settings
(3)-1 Start side source setting
Specifies trigger conditions to start data capture.
Selection item
Off
Level
Alarm
External Input
Date
Weekly
Time
3−28
Setting
[Level] Mode
Combination
Level
[Alarm] Alarm port
number
[Date] Date
Time
[Weekly] Day of week
Time
[Time]
[Level] Mode
Combination
Level
[Alarm] Alarm port
number
[Date] Date
Time
[Weekly] Day of week
Time
[Time]
Mode
Level
Output
Detection Method
Alarm Hold
Send Burnout Alarm
Starts capturing data unconditionally when you press the Start/Stop key.
Starts capturing data when a specified level is reached.
-> When Level is selected, the condition for each channel must be set.
Refer to page 3-31 for details.
Starts capturing data when an alarm is generated in the specified alarm port.
Starts capturing data when an input signal is received from an external trigger terminal.
* A trigger is established at a transition from 5 V (open) to 0 V (shorted to the ground).
A falling edge operation occurs.
Starts capturing data when specified date and time arrives.
Starts capturing data at the specified time on days of week for which On is set.
Example: On is set for Mon, Tue, Wed, Thu, and Fri, Off is set for Sun and Sat, and 9:00 is set as
the time.
Starts capturing data at 9:00 on weekdays. Does not start capturing data on Sat and Sun.
Starts capturing data when a specified length of time elapses.
Selections available
Off, Level, Alarm, External Input, Time, Day, Duration
Analog: Off, ↑ H, ↓ L, Window In, Window Out
Logic: Off, ↑ H, ↓L
Pulse: Off, ↑H, ↓L, Window In, Window Out
Level OR, Level AND, Edge OR, Edge AND
Set numeric value
1 2 3 4
• • •
From 2005.1.1 to 2035.12.31
From 0:0:0 to 23:59:59
Off or On setting for each of Sunday through Saturday
From 0:0:0 to 23:59:59
From 0:0:1 to 9999:59:59
Off, Level, Alarm, External Input, Time, Day, Duration
Analog: Off, ↑ H, ↓ L, Window In, Window Out
Logic: Off, ↑ H, ↓L
Pulse: Off, ↑H, ↓L, Window In, Window Out
Level OR, Level AND, Edge OR, Edge AND
Set numeric value
1 2 3 4
• • •
From 2005.1.1 to 2035.12.31
From 0:0:0 to 23:59:59
Off or On setting for each of Sunday through Saturday
From 0:0:0 to 23:59:59
From 0:0:1 to 9999:59:59
Off, On
Analog: Off, ↑ H, ↓ L, Window In, Window Out
Logic: Off, ↑ H, ↓L
Pulse: Off, ↑H, ↓L, Window In, Window Out
Set numeric value
1 2 3 4
• • •
Level, Edge
On, Off
On, Off
Description
