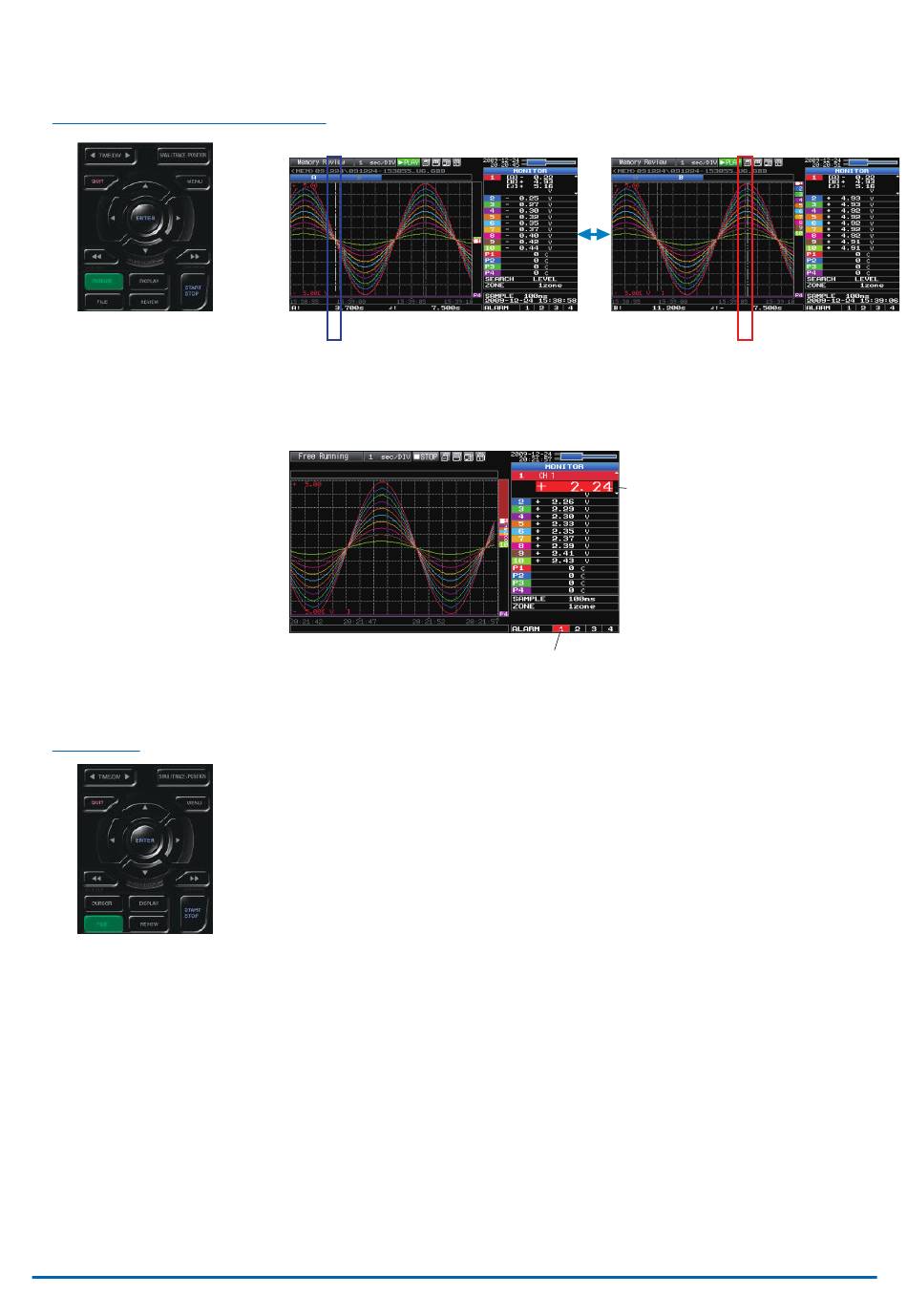

(11) CURSOR (ALARM CLEAR)

(12) FILE

• This key is used to toggle between cursors A and B during replay.
cursor A
The selected cursor turns white, and the other one turns gray.
• When the alarm setting is "Hold generated Alarm", the maintained alarm is cleared.
Performs file-related operations.
• This key is use for operations related to the Internal memory and USB device (copy and delete).
• Copies the window.
• Saves all data or data between cursor A and cursor B during replay (can be set during replay
only)
• Saves or reads the currently set condition into the USB device. (can be set during Free
Running only).
• Exchanges USB memory during data capture (can be set only while data is captured to USB
memory).
cursor B
Alarm output terminal status
Black : Alarm is not issued
Red : Alarm is issued
CHAPTER 3 Settings and Measurement
cursor A
cursor B
Alarm-generated channels
3−11
