CHAPTER 3 Settings and Measurement
(2)-2 Captured data file name
Select the name of a file or folder to which you want to save capture data.

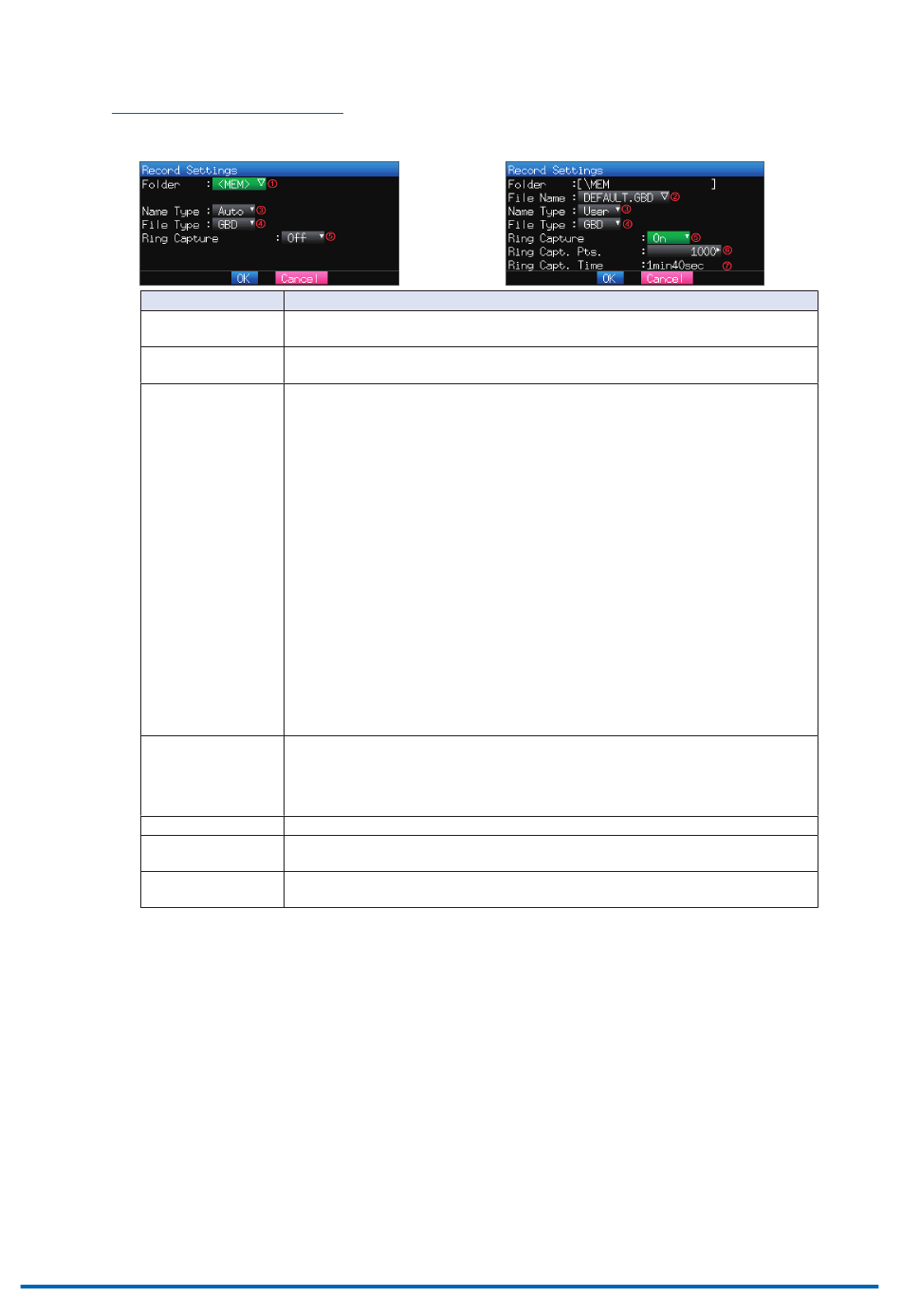

<If the naming method is Auto>
(1) Folder
(2) File
(3) Name Type
(4) File Type
(5) Ring Capture
(6) Number of Ring
Capture Points
(7) Ring Capture
Time
3−24
Setting
Specify a folder to which you want to capture (or save) data. Refer to page 3-41,
"File box" for details.
Specify a file to which you want to capture (or save) data. Refer to page 3-41, "File
box" for details.
Set how a data file should be named.
Auto
Arbitrary
Sequential number : A file is created with an arbitrary file name that has been en-
* If the same file name already exists, _CP* is added to the end of a file name to
prevent overwriting. The asterisk (*) represents a number.
Example: TEST_CP1.GBD
Sets the file format used to save data.
GBD : Creating a data file in Graphtec's proprietary binary format
* Data tampering can be prevented.
CSV : Creating a data file in text format
* Replaying on the GL220 is not available.
Sets the ring capture function to On or Off.
Specifies the number of data points in one file when the ring capture function is On
(See the following figure for details).
Displays the possible measurement time with one file when the ring capture func-
tion is On.
<If the naming method is Arbitrary>
Description
: Automatically supplies the file name.
Example: 20050101-123456_UG.GBD
Number part : File creation date
* The file is created on January 1, 2005,
12:34:56 in this example.
UG : User number of the user capturing data
UG: Guest
U1: User 1
U2: User 2
GBD : Data format GBD
(Binary data)
CSV (Text format)
: Data is captured to a file with an entered file name.
tered, followed by a sequential number.
Example: If the file name is "TEST"
First time : TEST_SER1.GBD
Second time : TEST_SER2.GBD
Third time : TEST_SER3.GBD
