(4) Replaying

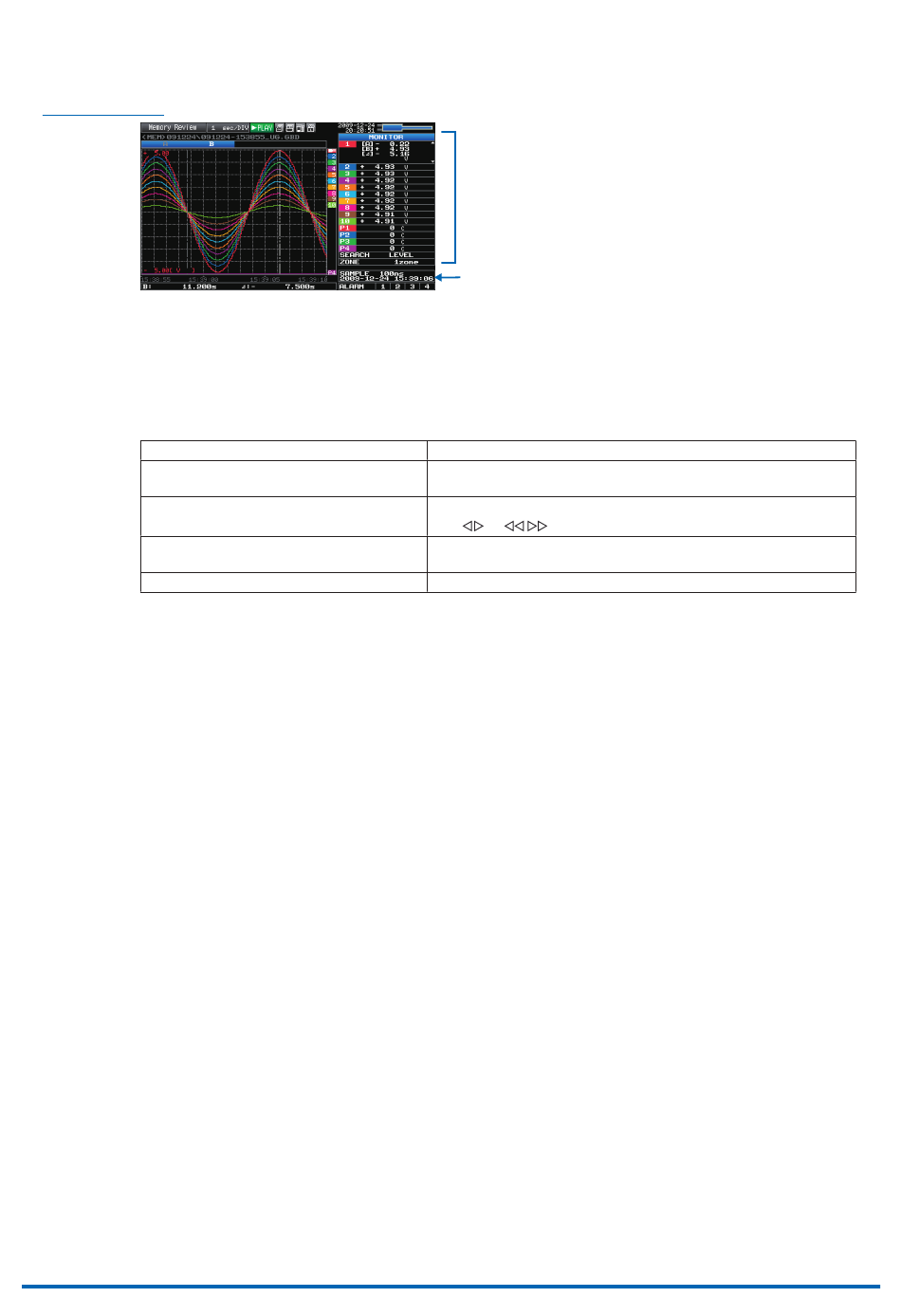

Displays the captured data.
Operations available during replaying
SPAN/TRACE/POSITION
Menu operations during data replay
Moving cursors
File operations
Time axis change
Displays the voltage at a point indicated by
Cursor A or B or the selected cursor.
Displays the measurement time at a point
indicated by Cursor A or B or the selected cursor.
The SPAN/TRACE/POSITION key is used to change settings.
The MENU key is used to move the cursor, search data and set
calculation.
The CURSOR key is used to switch between cursors A and B.
The or keys are used to move the cursors
The FILE key is used to save either all data or the data between
the cursors.
The TIME/DIV key is used to change the time axis.
