(5) After checking that the USB memory access display turns green, press the ENTER key.
Refer to page 3-3 for details on USB memory access.
"_CHG" and a number will be appended to the file name each time you exchange a USB memory device.
Example: When data is captured to the file "TEST.GBD":
* While ring capture is On, the USB memory device cannot be exchanged.
The exchange procedure must be completed within five minutes. Data will be lost after five minutes have
elapsed.

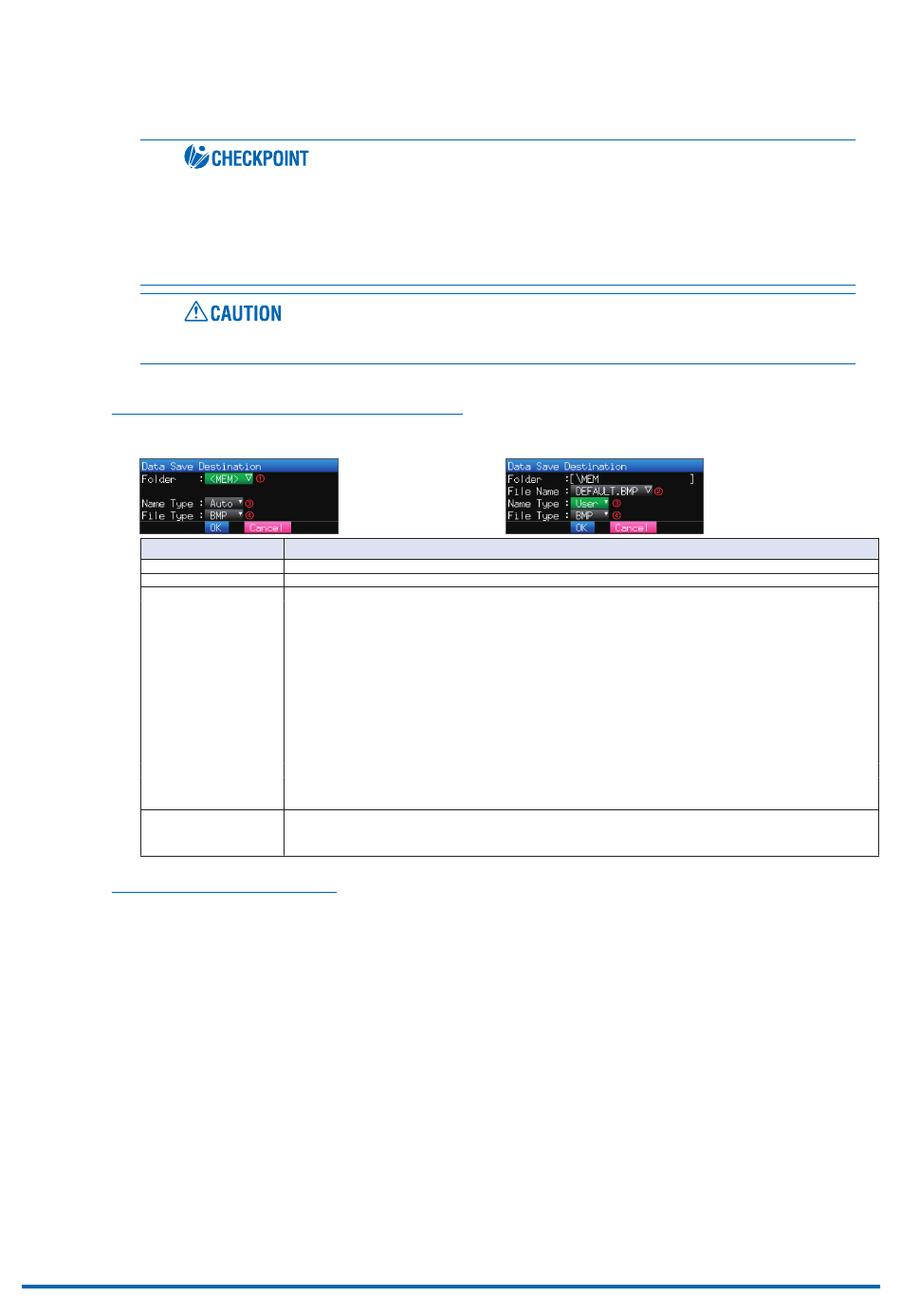

(6)-4 Specify Save Destination (Screen Copy)
Saves data being replayed as an image file to the internal memory or USB memory.
<If the naming method is Auto>
Setting
(1) Folder
(2) File
(3) Name Type
(4) File Type
(6)-5 Execute (Screen Copy)
Executes screen copy and saves it to an image file. * Refer to page (6)-4 "Specify Save Destination" for
details on specifying the save destination.
First USB memory device
Second USB memory device : TEST_CHG1.GBD
Third USB memory device
Specify a folder to which you want to save data. Refer to page 3-41, "File box" for details.
Specify a file to which you want to save data. Refer to page 3-41, "File box" for details.
Set how a data file should be named.
Auto : Automatically supplies the file name.
Example: 20050101-123456_UG.BMP
Number part
UG
BMP
Arbitrary : Data is captured to a file with an entered file name.
Sequential number : A file is created with an arbitrary file name that has been entered, followed by
a sequential number.
Sets the file format used to save data.
BMP: Saves data in bitmap file format
PNG: Saves data in ping format
CHAPTER 3 Settings and Measurement
: TEST.GBD
: TEST_CHG2.GBD
<If the naming method is Arbitrary>
Description
: File creation date
* The file is created on January 1, 2005, 12:34:56 in this
example.
: User number of the user capturing data
UG: Guest
U1: User 1
U2: User 2
: Data format
BMP: Bitmap file format
PNG: Ping format
3−39
