CHAPTER 2 Checks and Preparation
2.5

Connecting the Signal Input Cables

This section describes how to connect the signal input cables.

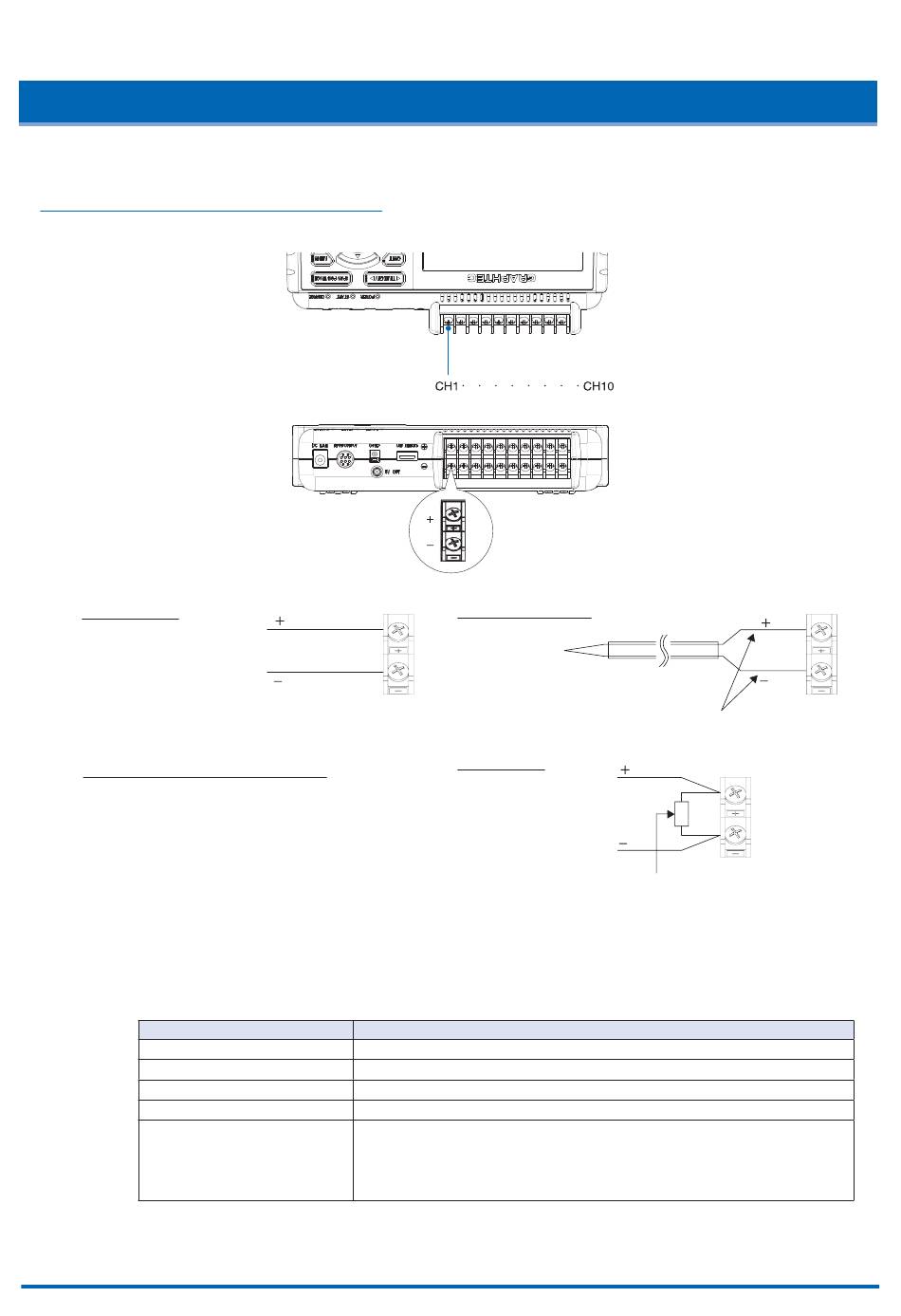

Terminal Configuration and Signal Types

Voltage input
Resistance temperature detector
not available
+.........................................High-voltage terminal (terminal for high-voltage input signals)
–..........................................Low-voltage terminal (terminal for low-voltage input signals)
Input configuration
Analog voltage
Thermocouples
A/D resolution
Filter
2-6
DC voltage
Item
Isolated input, scanning
20, 50, 100, 200, 500 mV/F.S.; 1, 2, 5, 10, 20, 50 V/F.S.; 1-5V
K, J, E, T, R, S, B, N, W (WRe 5-26)
16-bit (Effective resolution: About 1/40,000 of the +/- range)
Off, 2, 5, 10, 20, 40
Filter operation is on a moving average basis.
The average value of the set sampling count is used.
If the sample interval exceeds 5 seconds, the average value of data ob-
tained in a sub-sample (5 seconds) is used.
Terminal configuration
Thermocouple input
Current input
DC current
Description
Compensation wire is
used if it is required.
Shunt resister
Ex: The current is converted to the voltage in
the shunt register.
For 4 to 20mA current input, installing 250
ohms (0.1%) resister for converting 1 to 5V.
* 250 ohms shunt register is the option B551.
