Connecting to a DC Power Supply
Use the optional DC drive cable (B-514).
Use a power supply within the 8.5 to 24 VDC range (26.4 VDC max.).
(1) Configure the tip of the DC drive cable (B-514: 2m) to enable it to be connected to the DC power
supply.

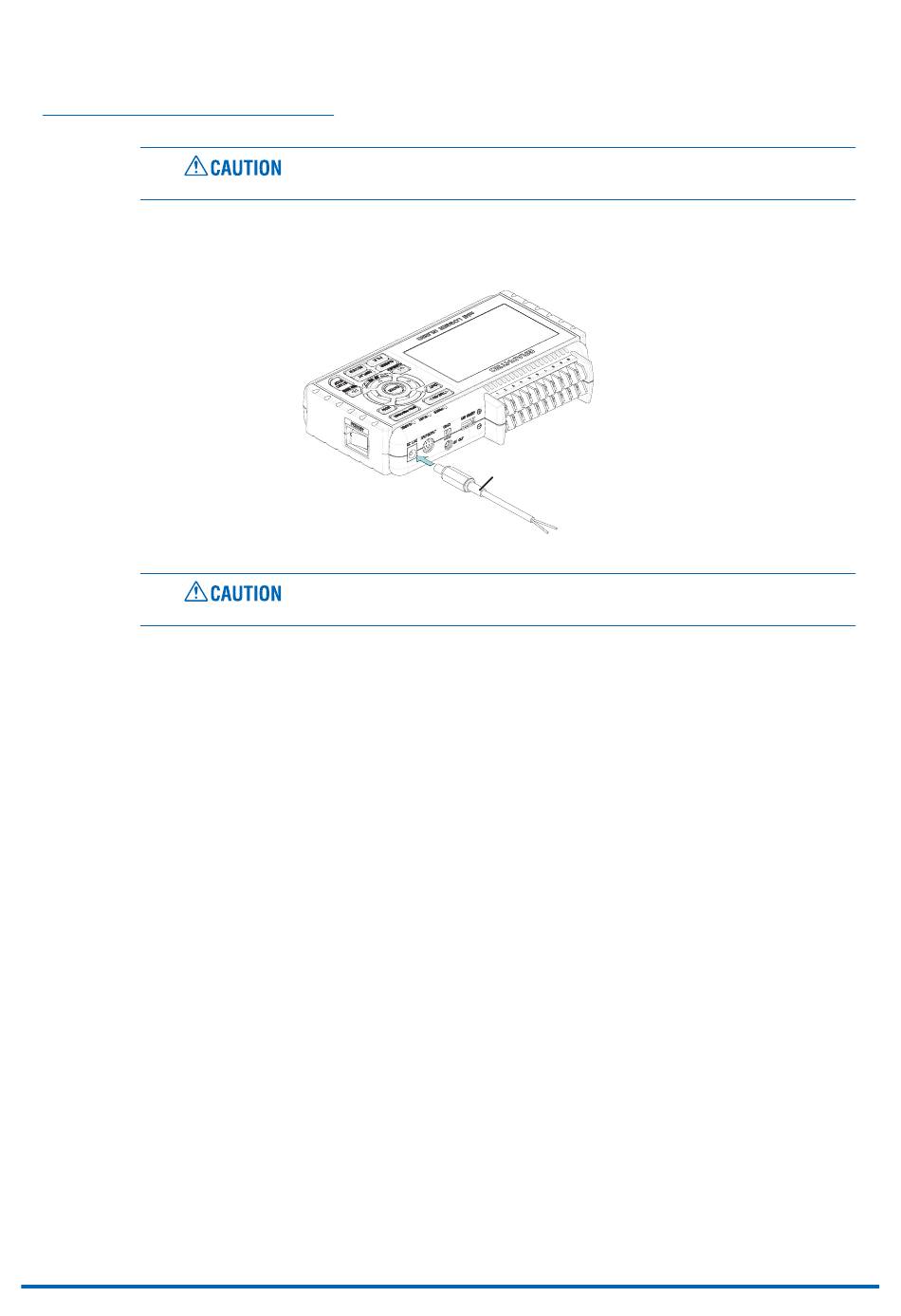

(2) Connect the DC output side to the power supply connector on the GL220.
(3) Connect the DC input side to the DC power supply.
Be sure to check the polarity of the wire tips when performing wiring.
(4) Press the power switch on the GL220 to the ON side to turn on the power.
CHAPTER 2 Checks and Preparation
B-514
8.5 to 24 VDC power supply
Shielded lead (– side)
White (+ side)
2-5
