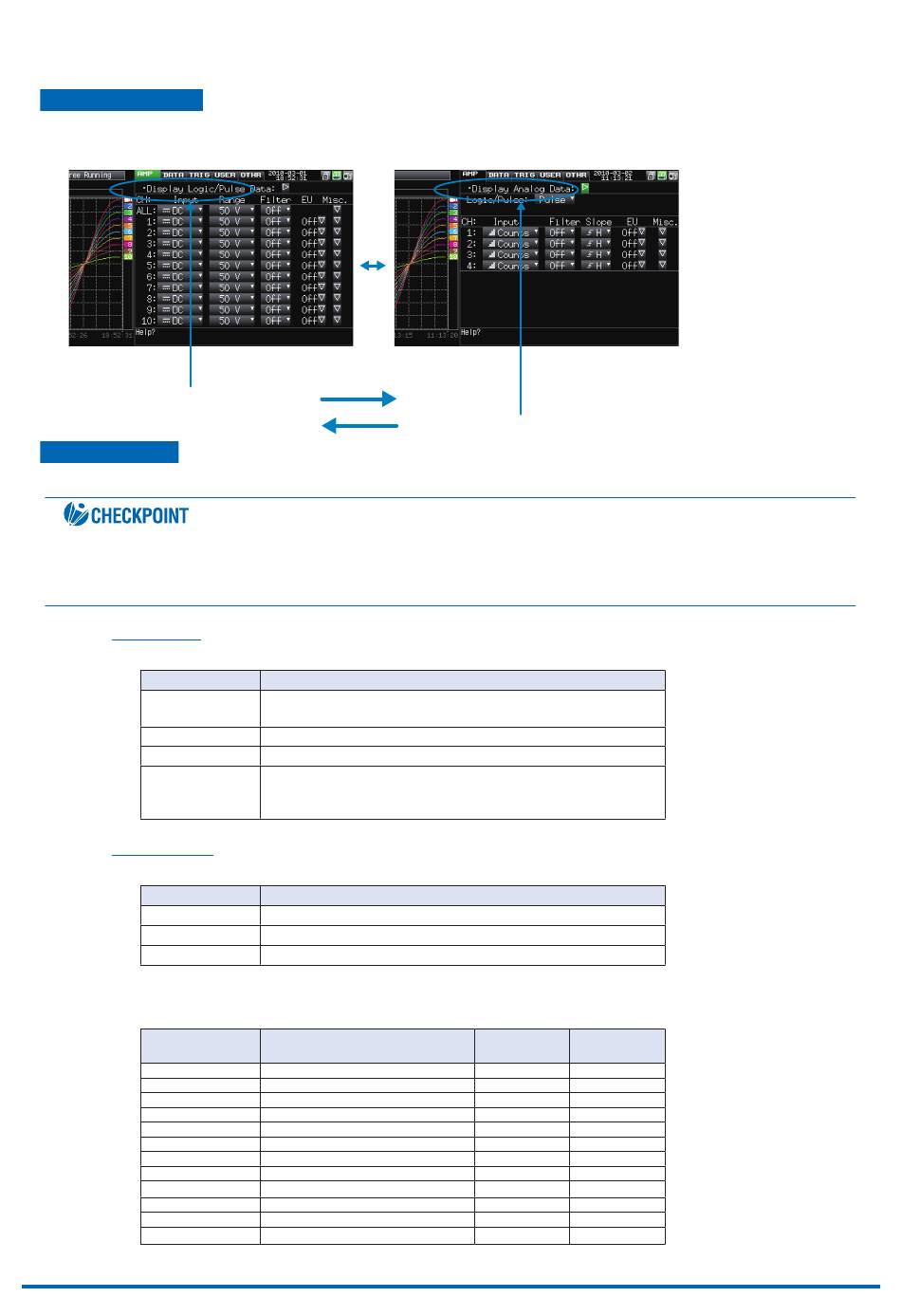

Switching displays
Analog and logic/pulse can be switched as shown below.
▪ Display Logic/Pulse Data
Analog settings
Specify the conditions for analog signals.
When you use CH ALL to set an input, range and filter, all channels are set to the same values if the input is the same. Range is
set only for the same input channels. However, the range of a channel is not changed if its EU (scaling) is set to On.
Span All Settings is set only for the same range channels.
*If CH1 has an input that is set to Off, the input of CH ALL is set to Off.
(1)-1 Input
Selects input condition
Selection item
Off
Voltage
Temperature
Humidity
(1)-2 Range
Selects the range of measurement.
Input item
Voltage
Temperature
Humidity
Available SPAN Settings
<Voltage Ranges>
Range
20mV
50mV
100mV
200mV
500mV
1V
2V
5V
10V
20V
50V
1-5V
▪ Display Analog Data
Description
Input signal measurement is disabled. No waveform or digital
value is displayed.
Used for measuring direct-current voltage.
Used for measuring temperature.
Used for measuring humidity with the humidity sensor B-530.
In this case, the voltage range will become 1 V, and the EU
settings will not be available.
Description
20, 50, 100, 200, 500 mV; 1, 2, 5, 10, 20, 50, 1-5 V
TC-K, TC-J, TC-T, TC-R, TC-E, TC-B, TC-S, TC-N, TC-W
No selection available
Maximum SPAN
-22.000 to +22.000mV
-55.00 to +55.00mV
-110.00 to +110.00mV
-220.00 to +220.00mV
-550.0 to +550.0mV
-1.1000 to +1.1000V
-2.2000 to +2.2000V
-5.500 to +5.500V
-11.000 to +11.000V
-22.000 to +22.000V
-55.00 to +55.00V
-5.500 to +5.500V
CHAPTER 3 Settings and Measurement
Minimum
Minimum
SPAN
Resolution
0.200mV
0.001mV
0.50mV
0.01mV
1.00mV
0.01mV
2.00mV
0.01mV
5.0mV
0.1mV
0.0100V
0.0001V
0.0200V
0.0001V
0.050V
0.001V
0.100V
0.001V
0.200V
0.001V
0.50V
0.01V
0.050V
0.001V
3−17
