How to Install

4.3 Mechanical Installation

Preparation of the mechanical installation of the filter must
be done carefully to ensure a proper result and to avoid
additional work during installation. Start taking a close
look at the mechanical drawings in 4.2.5 Mechanical
Dimensions to become familiar with the space demands.
4.3.1 Tools Needed
To perform the mechanical installation, the following tools
are needed:
•
Drill with 0.39 or 0.47 in [10 or 12 mm] drill bit.
•
Tape measure
•
Screw driver
•
Wrench with relevant metric sockets (7–17mm)
•
Wrench extensions
•
Sheet metal punch for conduits or cable
connectors
•
Lifting bar to lift the unit (rod or tube max. Ø 1 in
[25mm], able to lift minimum 2204 lbs [1000 kg]).
•
Crane or other lifting aid to place the unit in
position
•
Torx T50 tool
4.3.2 General Considerations
Space
Ensure proper space above and below the unit to allow
airflow and cable access. In addition, space in front of the
unit must be considered to allow the panel door to be
opened.
VLT Active Filter AAF 00x
3x771.0
[30.4]

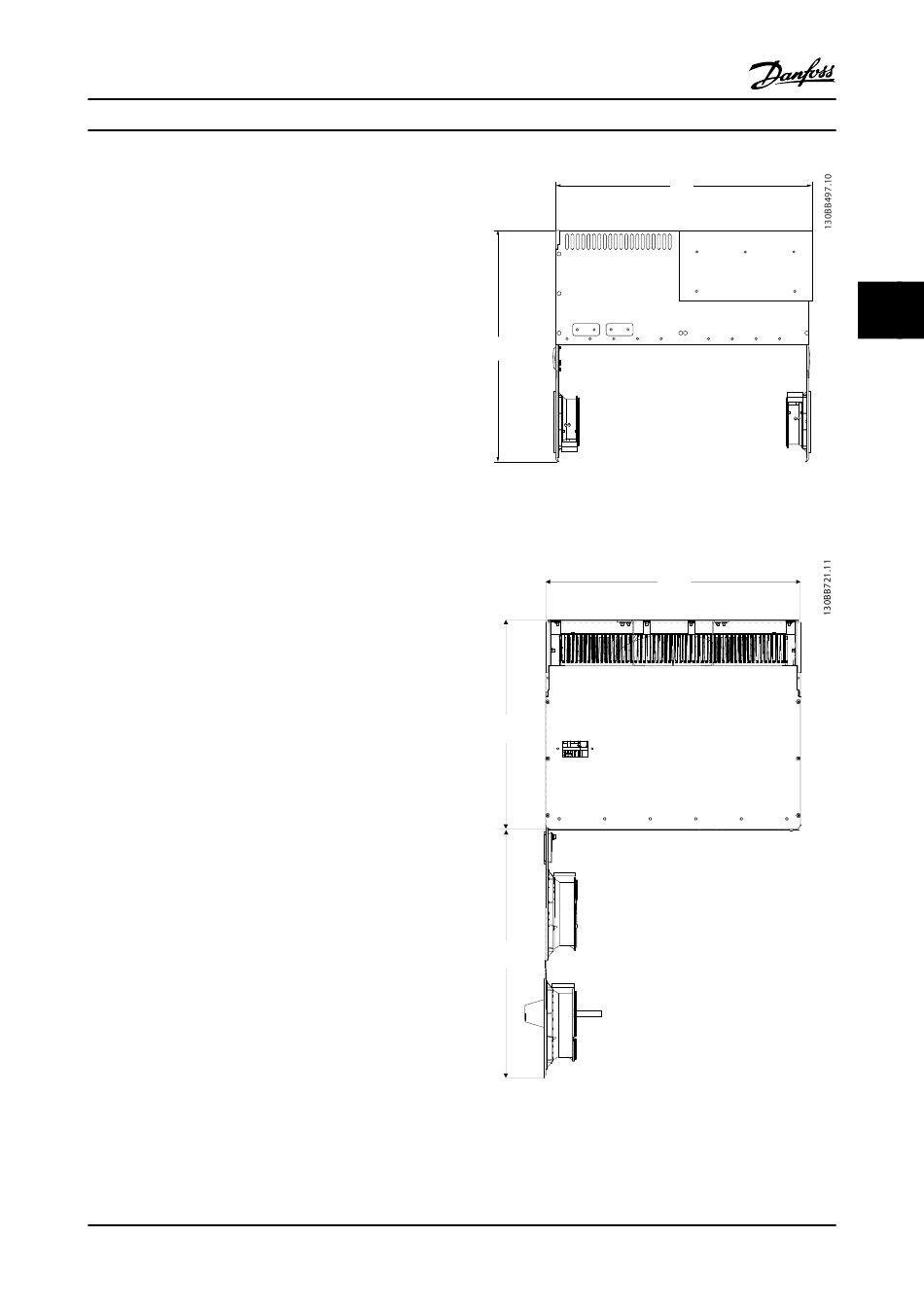

Figure 4.8 Space in front of IP21/IP54 enclosure type, frame size
D9.
Figure 4.9 Space in front of IP21/IP54 enclosure type, frame size
D13.
®
MG.90.V2.22 - VLT is a registered Danfoss trademark
600
599.60 mm
[23]
380
[15]
600
[23]
849.1
[33.4]
