NOTE!
An active HAND-OFF-AUTO signal via the digital inputs has
higher priority than the control keys [Hand on] – [Auto on].
[Reset]
is used for resetting the filter after an alarm (trip). The key
can be Enabled [1] or Disabled [0] via 0-43 [Reset] Key on
LCP.
The parameter shortcut
5 5
can be carried out by holding down the [Main Menu] key
for 3 seconds. The parameter shortcut allows direct access
to any parameter.
5.1.2 Changing Data
The procedure for changing data is the same whether you
select a parameter in the quick menu or the main menu
mode. Press [OK] to change the selected parameter. The
procedure for changing data depends on whether the
selected parameter represents a numerical data value or a
text value.
5.1.3 Changing a Text Value
If the selected parameter is a text value, it can be changed
by using the up/down navigation keys.
The up key increases the value, and the down key
decreases the value. Place the cursor on the value to be
saved and press [OK].

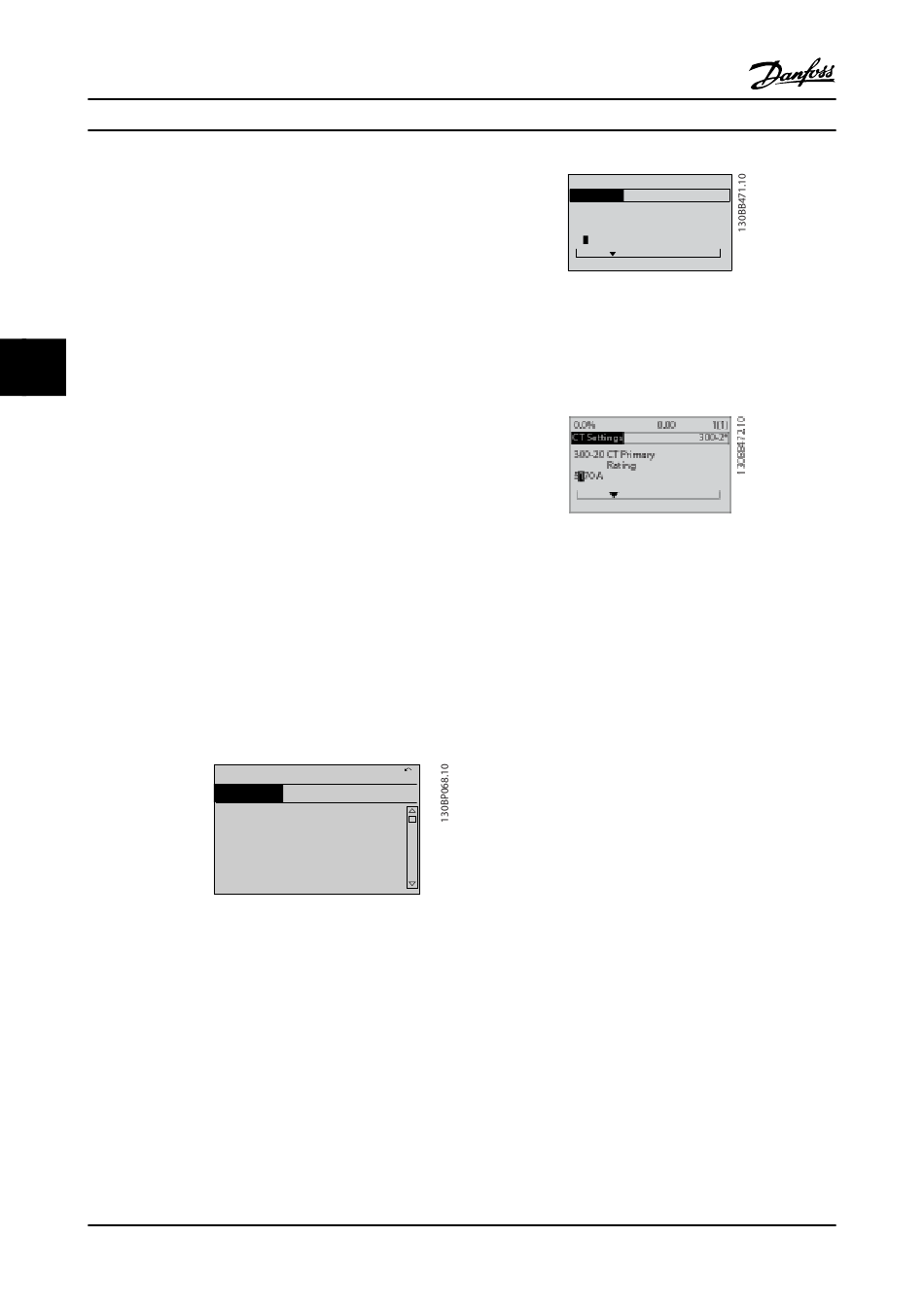

Figure 5.1 Display example.
5.1.4 Changing a Group of Numeric Data
Values
If the chosen parameter represents a numeric data value,
change the chosen data value by means of the [◄] and [►]
navigation keys as well as the up/down [
keys. Use the [◄] and [►] navigation keys to move the
cursor horizontally.
5-4
VLT Active Filter AAF 00x
740RPM 10.64 A
Basic Settings
0 -01 Language
[0] English
▲ ▼
] [ ] navigation
MG.90.V2.22 - VLT
Figure 5.2 Display example.
Use the up/down navigation keys to change the data
value. The up key increases the data value, while the down
key reduces it. Place the cursor on the value to be saved
and press [OK].
Figure 5.3 Display example.
5.1.5 Read-out and Programming of
Indexed Parameters
Parameters are indexed when placed in a rolling stack.
15-30 Alarm Log: Error Code to 15-32 Alarm Log: Time
contain a fault log which can be read out. Choose a
parameter, press [OK], and use the up/down navigation
keys to scroll through the value log.
Use 3-10 Preset Reference as another example:
Choose the parameter, press [OK], and use the up/down
1 [1]
0-0*
navigation keys to scroll through the indexed values. To
change the parameter value, select the indexed value and
press [OK]. Change the value by using the up/down keys.
Press [OK] to accept the new setting. Press [Cancel] to
abort. Press [Back] to leave the parameter.

5.1.6 Tips and Tricks

•
The AAF hold standard parameters to ensure
lowest possible need of changes. For the majority
of applications, the Quick Menu, Quick Set-up
provides the simplest and quickest access to all
the typical parameters required.
•
Performing an Auto CT for all stand-alone filters
to set correct current sensor set-up. Auto CT set-
up is only possible if CTs are installed at Point of
Common Coupling PCC (towards the transformer).
CT of LHD is preset from factory.
®
is a registered Danfoss trademark
0.0% 0.00 1(1)
C T S ettings 300-2*
300-20 C T P r imar y
R a ting
20 0 A 0
