4.3 Mechanical Installation

Preparation of the mechanical installation of the filter must
be done carefully to ensure a proper result and to avoid
additional work during installation. Start taking a close
look at the mechanical drawings in 4.2.5 Mechanical
Dimensions to become familiar with the space demands.
4.3.1 Tools Needed
To perform the mechanical installation the following tools
are needed:
•
Drill with 10 or 12mm drill
•
Tape measure
•
Screw driver
•
Wrench with relevant metric sockets (7-17mm)
•
Extensions to wrench
•
Sheet metal punch for conduits or cable glands
•
Lifting bar to lift the unit (rod or tube max. Ø
25mm (1 inch), able to lift minimum 1000kg).
•
Crane other lifting aid to place the unit in
position
•
Torx T50 tool
4.3.2 General Considerations
Space
Ensure proper space above and below the unit to allow
airflow and cable access. In addition space in front of the
unit must be considered to enable opening of the door of
the panel.
3x771.0
[30.4]

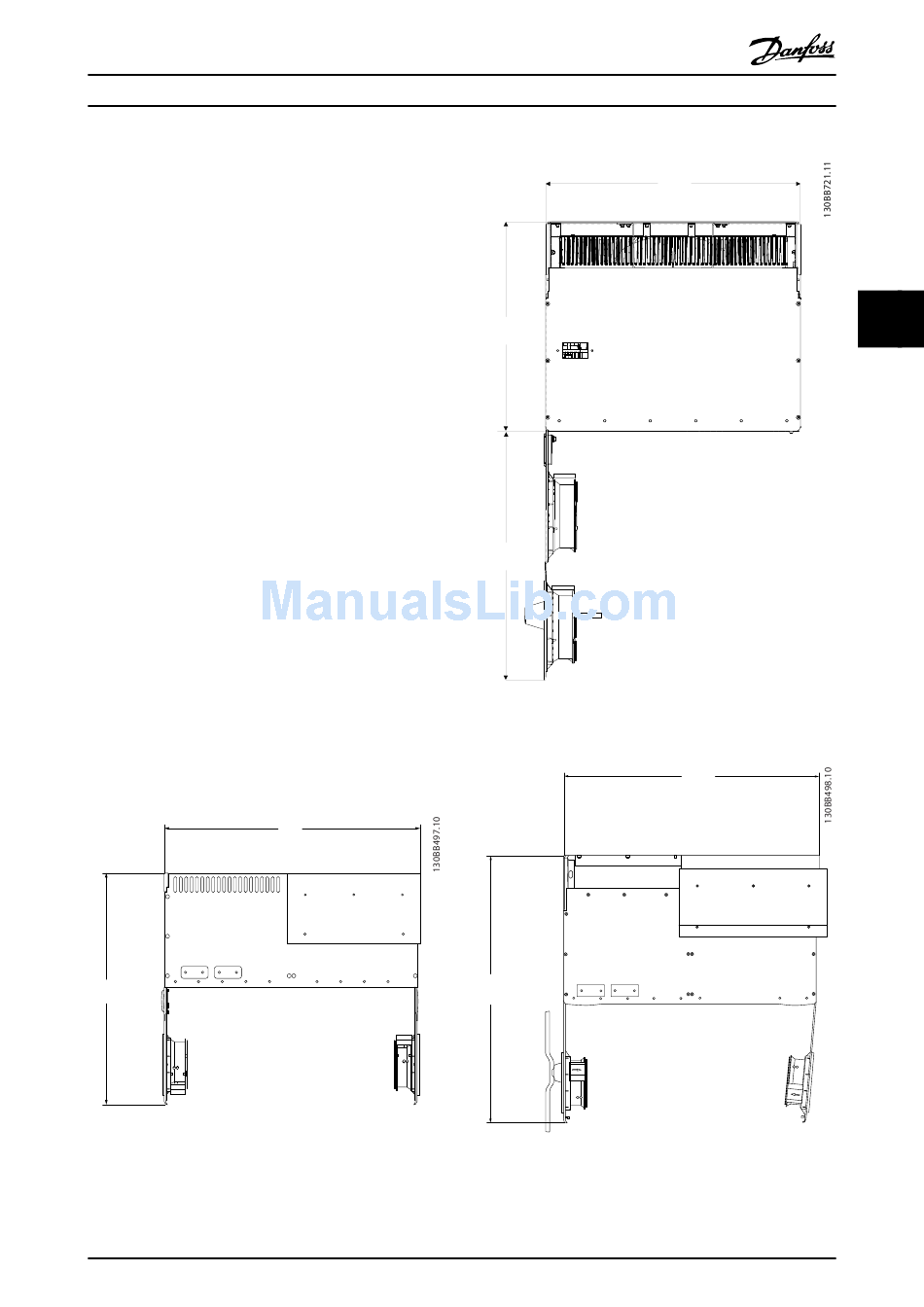

Illustration 4.8 Space in front of IP21/IP54 enclosure type, frame
size D9 .
VLT Active Filter AAF 00x
849.1
[33.4]
MG.90.V2.02 - VLT® is a registered Danfoss trademark
380
[15]
600
[23]
Illustration 4.9 Space in front of IP21/IP54 enclosure type, frame
size D13 .
889,1
[35]
Illustration 4.10 Space in front of IP21/IP54 enclosure type, frame
size E7.
600
599.60 mm
[23]
849,0
[33]
