Overscan — Press the Navigation buttons to select the overscan value for each input
format. Choose between 0%, 2.5%, or 5%. Set default overscan mode through SIS
commands (see
Overcan is specific to each input signal type. This feature zooms and crops SMPTE input
resolutions to mask edge effects and ancillary data that are common in broadcast signals.
When the overscan mode is not at 0%, an Auto-Image on a SMPTE input rate (NTSC, PAL,
SECAM, 480p, 576p, 720p, 1080i, 1080p, and 2K [2048x1080]) refers to the default input
lookup table values instead of performing a "true" auto image.
NOTE: Overscan is valid only on SMPTE input rates (NTSC, PAL, 480p, 576p, 720p,
1080i, 1080p, or 2K [2048x1080]) and is global for each video format.
Auto Switch — Press the Navigation buttons to turn the auto switch mode on or off, and to
set the priority. The auto switch setting allows for basic, unmanaged, input switching based
on the presence of active input signals. Auto switch mode options are:
• Disabled (off)
• Setting priority to "high to low" (highest numbered active input to the lowest)
• Setting priority to "low to high" (lowest numbered active input to the highest)
Factory Reset — Press and hold the Enter button to reset the device to factory defaults.
The scaler retains the current firmware version, as well as communication and IP settings.

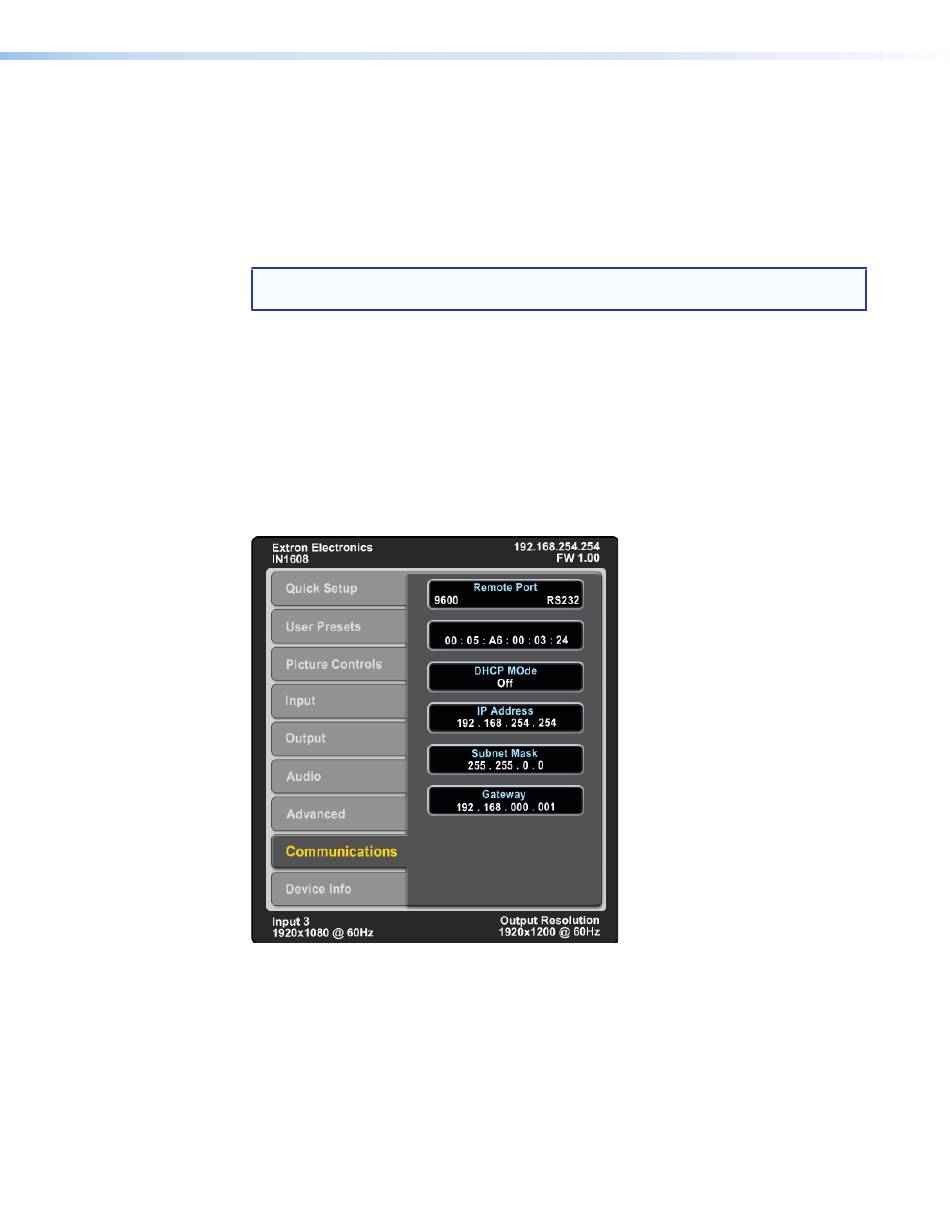

Communication Submenu

Figure 21.
The Communication submenu displays RS-232 settings, current IP configuration (DHCP, IP,
Subnet, Gateway), and MAC address. Press and hold the Enter button for 10 seconds to
edit the submenu items listed below.
Remote Port — Displays the Baud rate for the serial RS-232.
MAC Address — Displays the MAC address of the device (read only).
DHCP — Press the Navigation buttons to turn the DHCP mode on or off. The default is Off.
SIS Configuration and Control
Communication Submenu (IN1608)
IN1606 and IN1608 Series Scaling Presentation Switcher • Operation
on page 29).
