Twisted Pair Recommendations for DTP Communication

ATTENTION:
STP201 cable to link the scaler with DTP transmitters or receivers.
Use the following pin configurations for twisted pair cables.
Pin
Wire Color
1 White-orange
2 Orange
3 White-green
4 Blue
5 White-blue
6 Green
7 White-brown
8 Brown

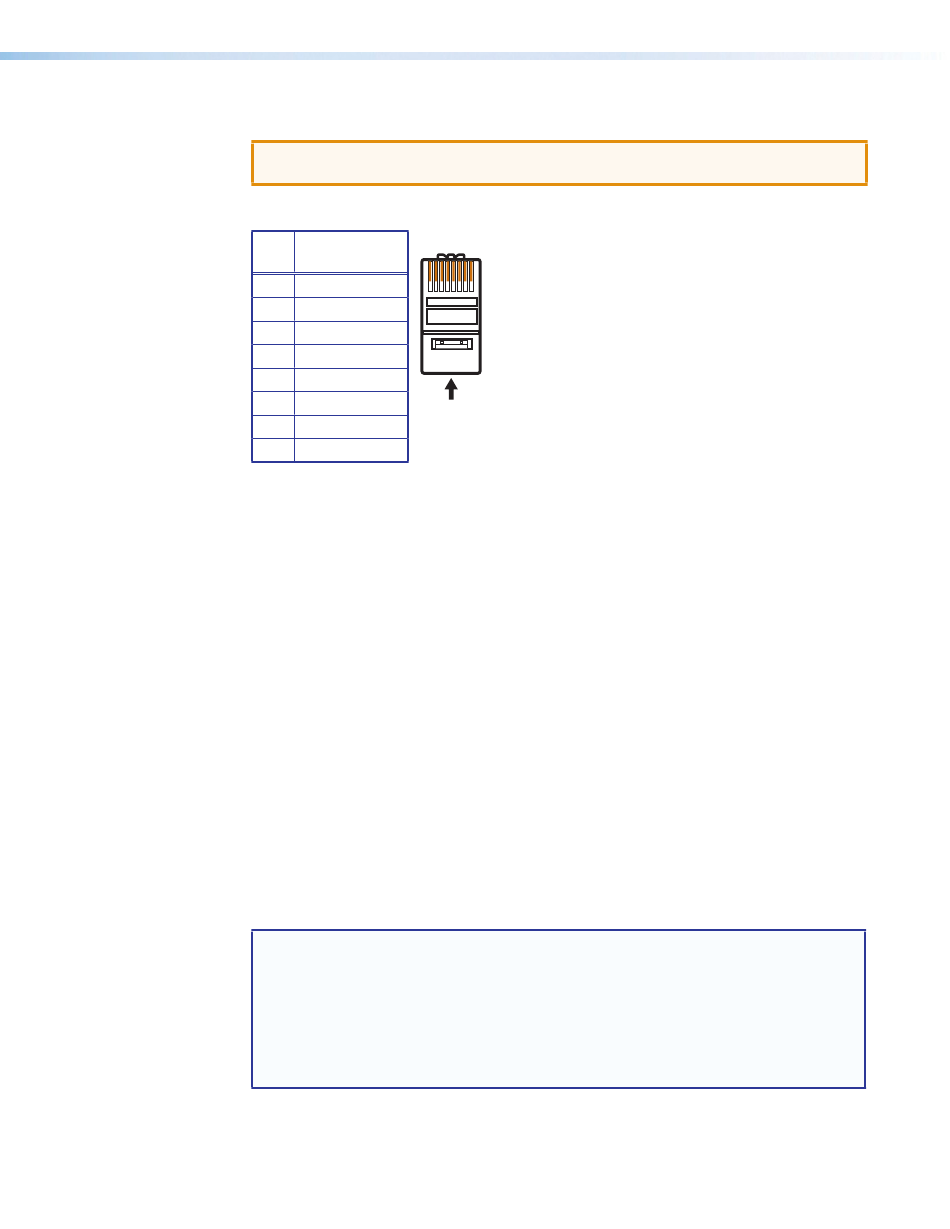

Figure 11.
Supported cables
The scalers are compatible with CAT 5e, 6, 6a, and 7 shielded twisted pair (F/UTP, SF/UTP,
and S/FTP) and unshielded twisted pair (U/UTP) cable.
Cable recommendations
Extron recommends using the following practices to achieve full transmission distances up
to 230 feet (70 m) and reduce transmission errors.
• Use the following Extron XTP DTP 24 SF/UTP cables and connectors for the best
performance:
XTP DTP 24/1000
•
XTP DTP 24P/1000 Plenum 1000' (305 m) spool
•
XTP DTP 24 Plug
•
• If not using XTP DTP 24 cable, at a minimum, Extron recommends 24 AWG, solid
conductor, STP cable with a minimum bandwidth of 400 MHz.
• Terminate cables with shielded connectors to the TIA/EIA T 568 B standard.
• Limit the use of more than two pass-through points, which may include patch points,
punch down connectors, couplers, and power injectors. If these pass-through points
are required, use CAT 6 or 6a shielded couplers and punch down connectors.
NOTE: When using CAT 5e or CAT 6 cable in bundles or conduits, consider the
following:
• Do not exceed 40% fill capacity in conduits.
• Do not comb the cable for the first 20 m, where cables are straightened, aligned,
and secured in tight bundles.
• Loosely place cables and limit the use of tie wraps or hook and loop fasteners.
• Separate twisted pair cables from AC power cables.
Do not use Extron UTP23SF-4 Enhanced Skew-Free AV UTP cable or
T568B Pins:
12345678
Insert Twisted
Pair Wires
RJ-45
Connector
Twisted Pair Cable Configuration
Non-Plenum 1000' (305 m) spool
Package of 10
IN1606 and IN1608 Series Scaling Presentation Switcher • Installation
T568A T568B
Pin Wire color Wire color
1 White-green White-orange
2 Green Orange
3 White-orange White-green
4 Blue Blue
5 White-blue White-blue
6 Orange Green
7 White-brown White-brown
8 Brown Brown
