Mic/Line Input tab

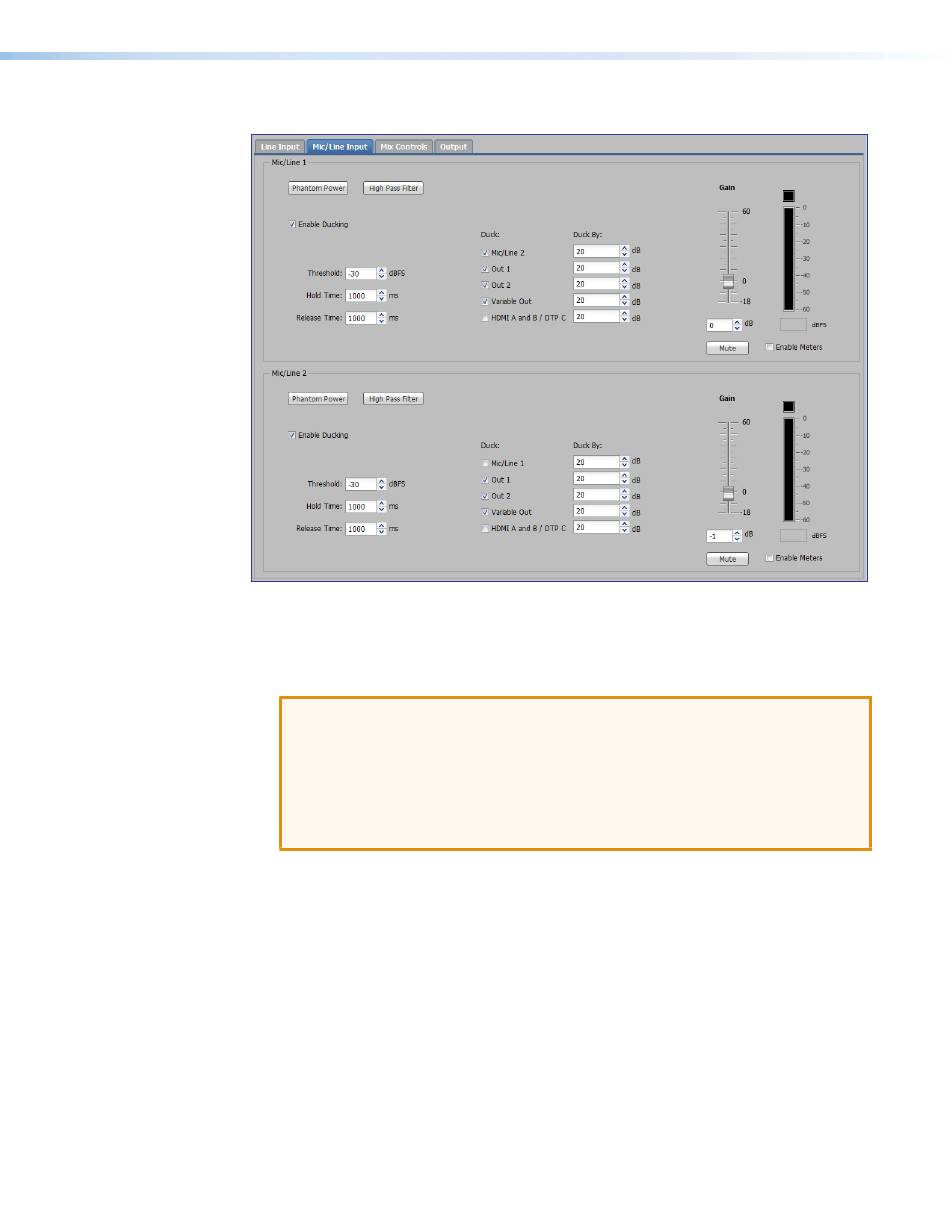

Figure 45. Mic/Line Input Tab with Ducking Enabled (IN1608)
1. Click the
Mic/Line Input
2. For each Mic/Line input, click the
phantom power on the mic input. The button turns blue when enabled.
ATTENTION:
• Condenser microphones require +48 V phantom power. Dynamic microphones
do not require power. Never enable phantom power with an unbalanced
dynamic microphone connected. Doing so may damage the microphone.
•
For condenser microphones, verify it will safely operate at +48 VDC.
• When a line level source is connected, be certain the +48 V phantom power is
disabled.
3. For each Mic/Line input, click the
high-pass filter on the mic input. When enabled, lower frequencies are attenuated,
allowing higher frequencies to pass. The button turns blue when enabled. The default
cutoff is 100 Hz.
IN1606 and IN1608 Series Scaling Presentation Switcher • Internal Web Pages
tab.
button to enable or disable +48 VDC
Phantom Power
High Pass Filter
button to enable or disable a
