Advanced Submenu

Figure 19.
The Advanced submenu allows adjustment of test patterns, screen saver mode, automatic
Auto-Image, aspect ratio, auto memory, overscan settings, auto switch, and factory reset.
Test Pattern — Press the Navigation buttons to select a test pattern to display or to
turn a test pattern off. The available test patterns are Crop, Alternating Pixels, Color Bars,
Grayscale, Blue Mode, and Audio Test (pink noise). The default setting is Off.
Figure 20.
NOTES:
• The audio test outputs pink noise on the embedded digital audio output (2-channel,
48 kHz, 16 bit).
• All test patterns include a single pixel border (except Blue mode).

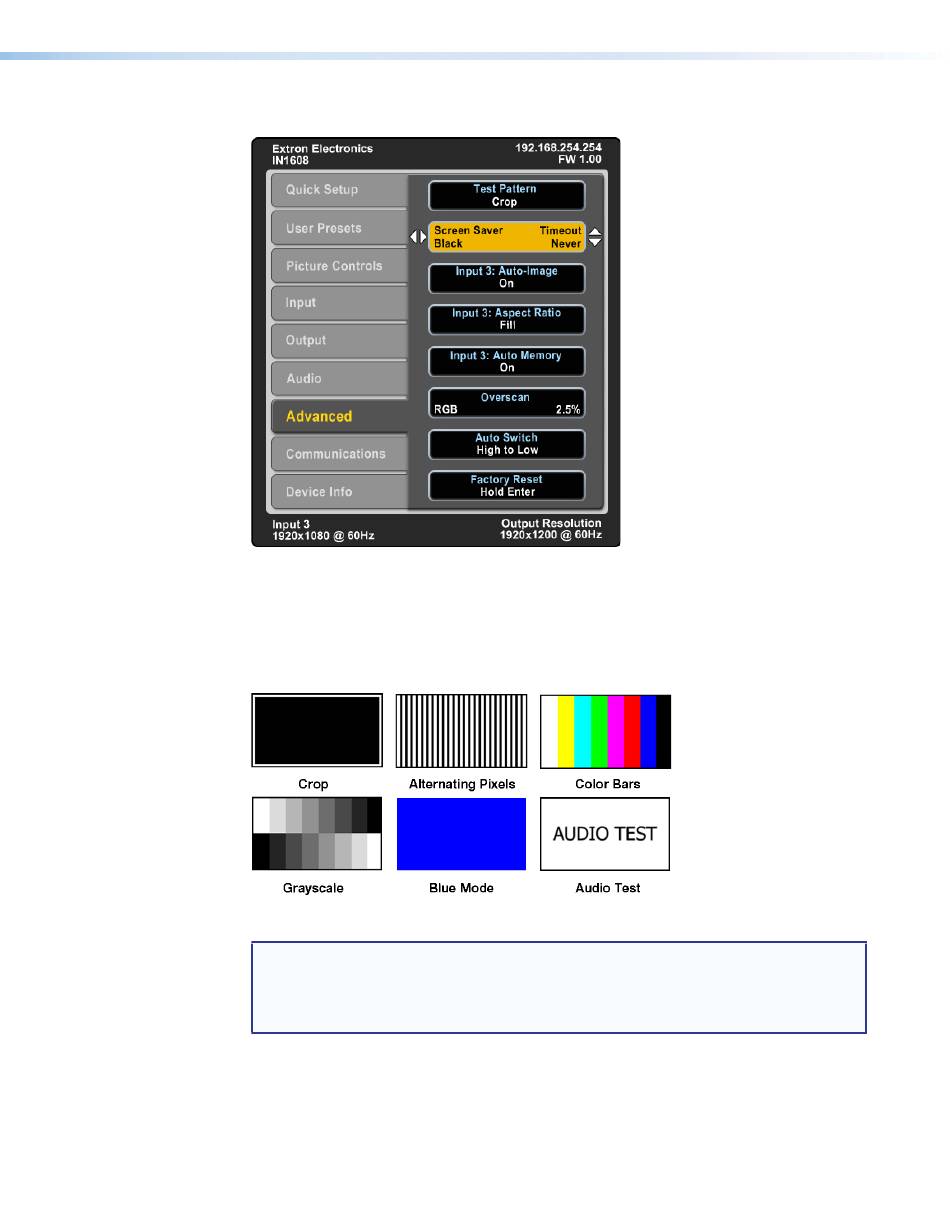

Advanced Submenu (IN1608)
Available Test Patterns
IN1606 and IN1608 Series Scaling Presentation Switcher • Operation 24
