Gain — Press the navigation buttons to set the gain (in dB) for the active analog or
LPCM-2Ch input.
Mic/Line Gain and Phantom — After selecting
or from the
Mic/Line 1 Mic/Line 2
list of submenu items, press the and buttons to select the Mic/Line gain or
Left Right
phantom power status. Press the and buttons to set the gain (in dB) or enable or
Up Down
disable phantom power for the selected value.
Mic/Line Volume — Press the navigation buttons to set the Mic/Line mix volume (in dB).
Program Volume — Press the navigation buttons to set the Program mix volume (in dB).
Output 1/2 Format — Press the navigation buttons to set the audio output format.

Advanced Submenu

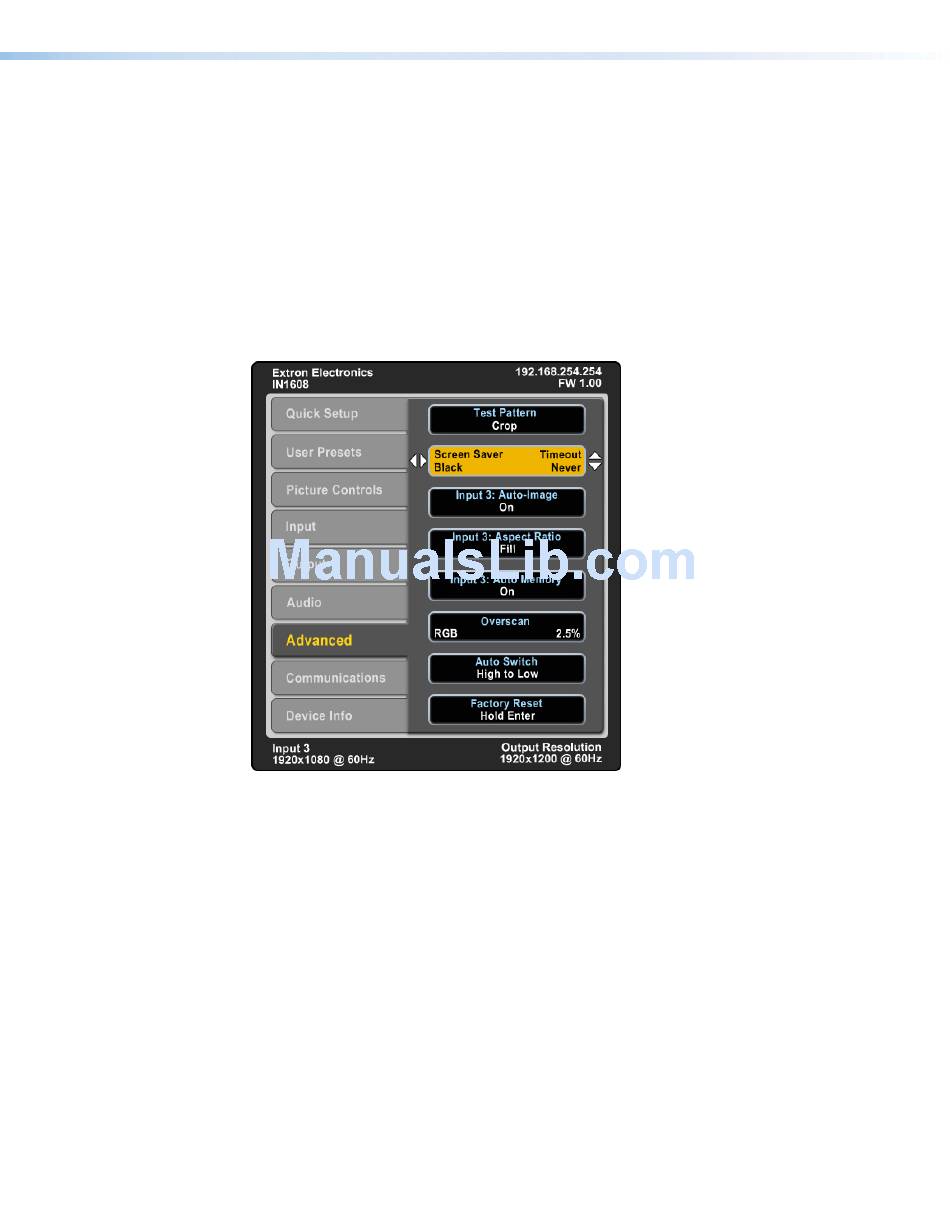

Figure 26. Advanced Submenu (IN1608)
The submenu adjusts of test patterns, screen saver mode, automatic
Advanced
Auto-Image, aspect ratio, auto memory, overscan settings, auto switch, and factory reset.
