Luminaire Overview
The following illustration shows the external luminaire components and controls.
Head Assembly
Houses light source
lens and LED PCB
assemblies.
Front Lens Assembly
Upper Enclosure Assembly
Houses LED power supply
connections and menu display.
Input Panel
DMX512 Input, DMX512 Thru,
and AC Input connections.
Pan & Tilt Service Locks

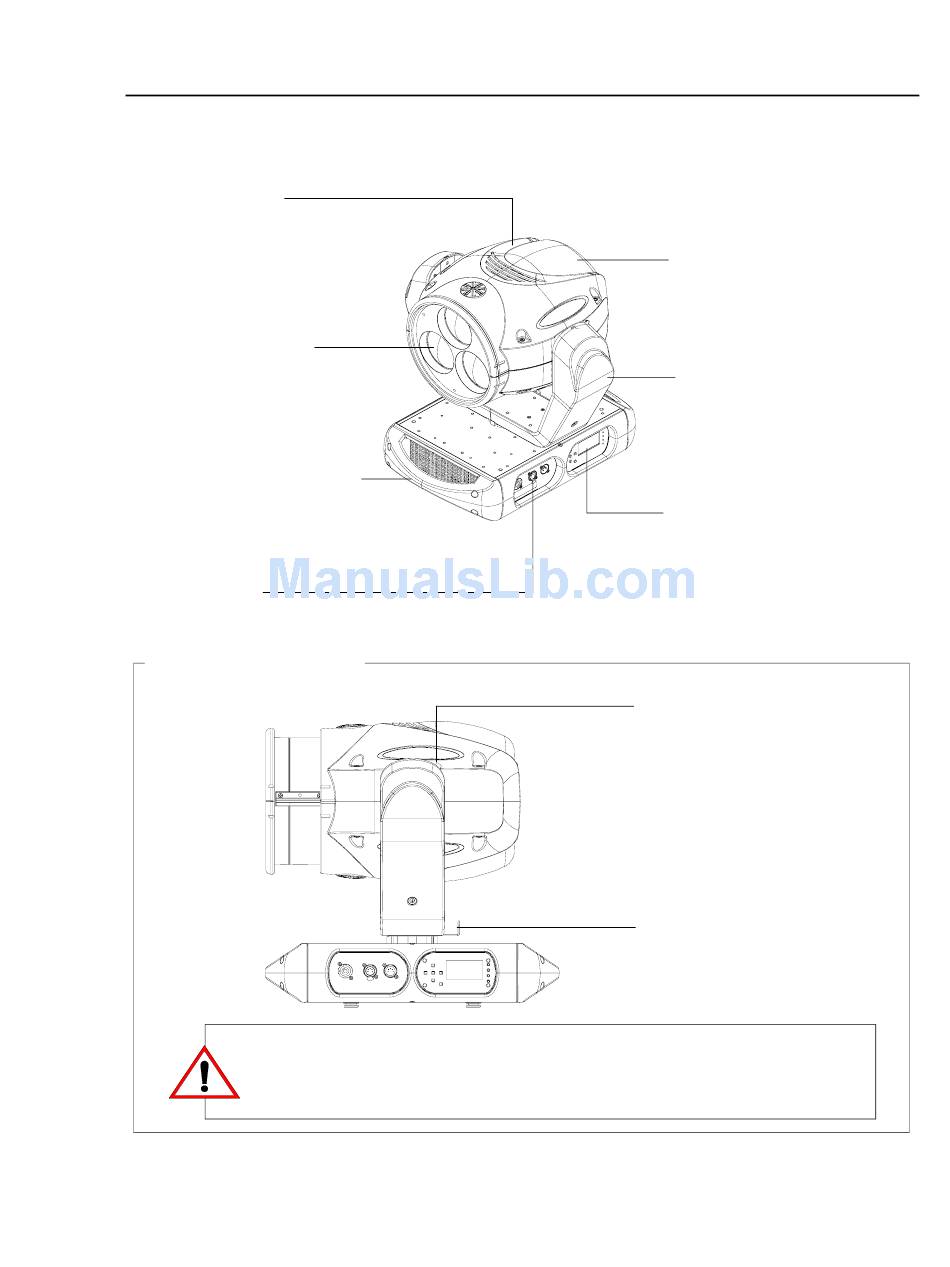

Figure 1-2: VLX3 Wash Luminaire External Components and Controls
02.97 03.000 1 A
The VLX3 Wash Luminaire has separate Pan and Tilt service locks. When the
luminaire is in use, both the Pan and Tilt service locks must be disengaged
(unlocked) to allow free movement of the luminaire head and yoke assemblies.
1 7 Dec emb er 2 012
D
: C
ESCRIPTION
OMPONENTS
Head Covers (top and bottom)
Provides access to light
source and LED cooling
assemblies.
Yoke Assembly
Houses Master Control
Board (MCB) and power
supply.
Menu Display
Used to input manual commands,
program, test, set defaults, and
access internal status information.
(See detail on next page)
Tilt Service Lock
Pan Service Lock
1
7
