VARI LITE - VLX3 W
Luminaire Overview (continued)
Upper Enclosure Menu
Enter Button
To Select or Change a
Setting or Data Value
Upper Enclosure Connections
AC Power Input
100 - 240VAC 50/60Hz
DMX Through
Passes DMX to Other Luminaires

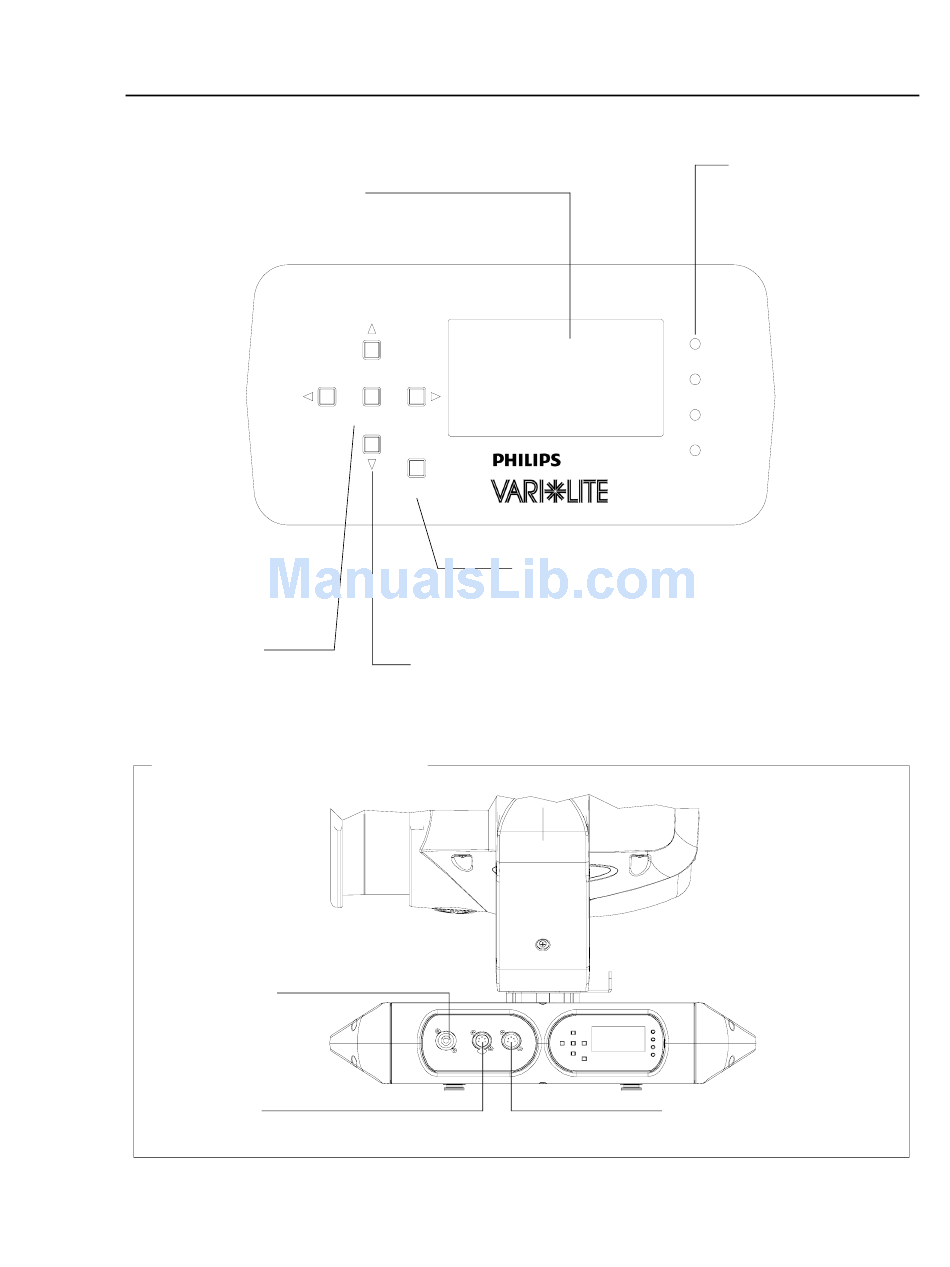

Figure 1-3: VLX3 Wash Luminaire External Components and Controls
8
L U '
ASH UMINAIRE SER
LCD Display
Displays all Data and Luminaire Settings
ENTER
ESC
1 7 Dec emb er 2 012
M
S ANUAL
Escape (ESC)
To Exit or Go to Previous Menu Item
Arrow Keys (Left/Right/Up/Down)
To Menu Navigate Menu Options and make Data
Selections
Status LEDs
Power State, Data
Transmit, Data
Receive, Data Error
POWER
TX
RX
ERROR
DMX Input
Connection to DMX Controls
02 .9 703 .00 01 A
