Step 3. While pulling up on locking mechanism release, fit keyed holes onto raised mounting
buttons at bottom of enclosure. Slide forward and release locking mechanism to lock in
place. Ensure brackets are locked securely. (Always face brackets in same direction as
shown.)
WARNING: Ensure that the bracket locking mechanism is fully seated after the bracket is installed
on the luminaire.
Locking
Mechanism
Press up to
install or release
02.97 03.000 1 A

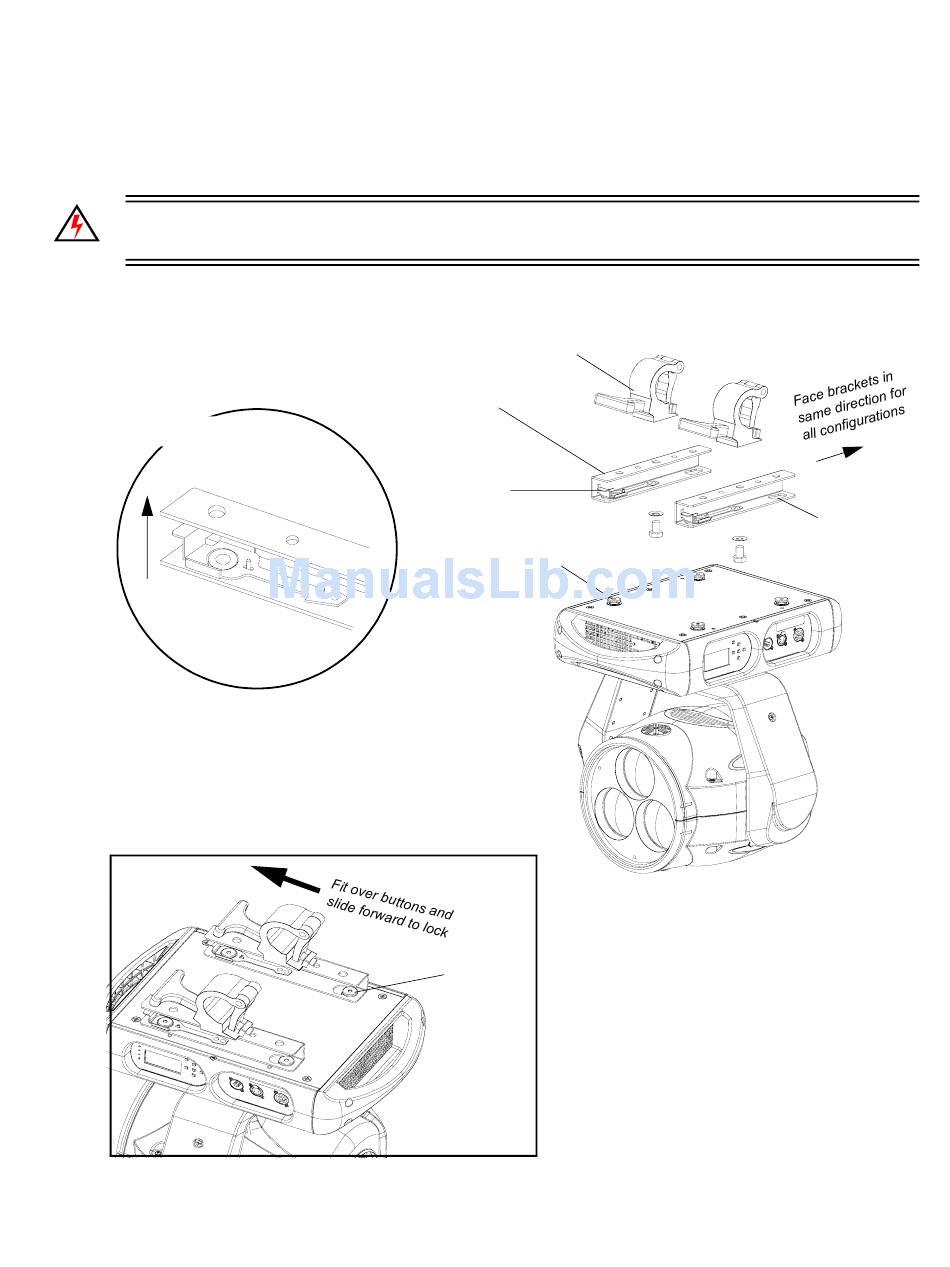

Figure 2-4: Installing Brackets on Luminaire Enclosure
1 7 Dec emb er 2 012
I : I
NSTALLATION
Example Truss Hook and Mounting Hardware
(not included)
Mounting
Bracket
Locking
Mechanism
Raised Mounting
Buttons (4 each)
Locked
P
NSTALLATION ROCEDURES
2
Keyed
Hole
