Step 4. Disengage tilt lock and rotate luminaire head 90-degrees and re-engage tilt lock (optional).
Step 5. As indicated in
through and in the direction of the heatsink fins from top to bottom so debris will fall down
and away from assembly. Care should be taken as not to damage heatsinks.
LED Cooling Assembly Heatsinks
Remove any debris in direction
of heatsink fins (as indicated).
Step 6. Using compressed air duster, blow any remaining debris from heatsink fins in the same
direction as indicated in previous step.
WARNING: DO NOT direct compressed air through heatsinks towards fans or vice-versa. Doing so
will cause the fans to spin at a high rate and could damage them. Also, never use any type of cleaning
solution on heatsinks.
Step 7. After cleaning is complete, reinstall luminaire head covers.
Step 8. Power luminaire and test.
76
L U '
ASH UMINAIRE SER

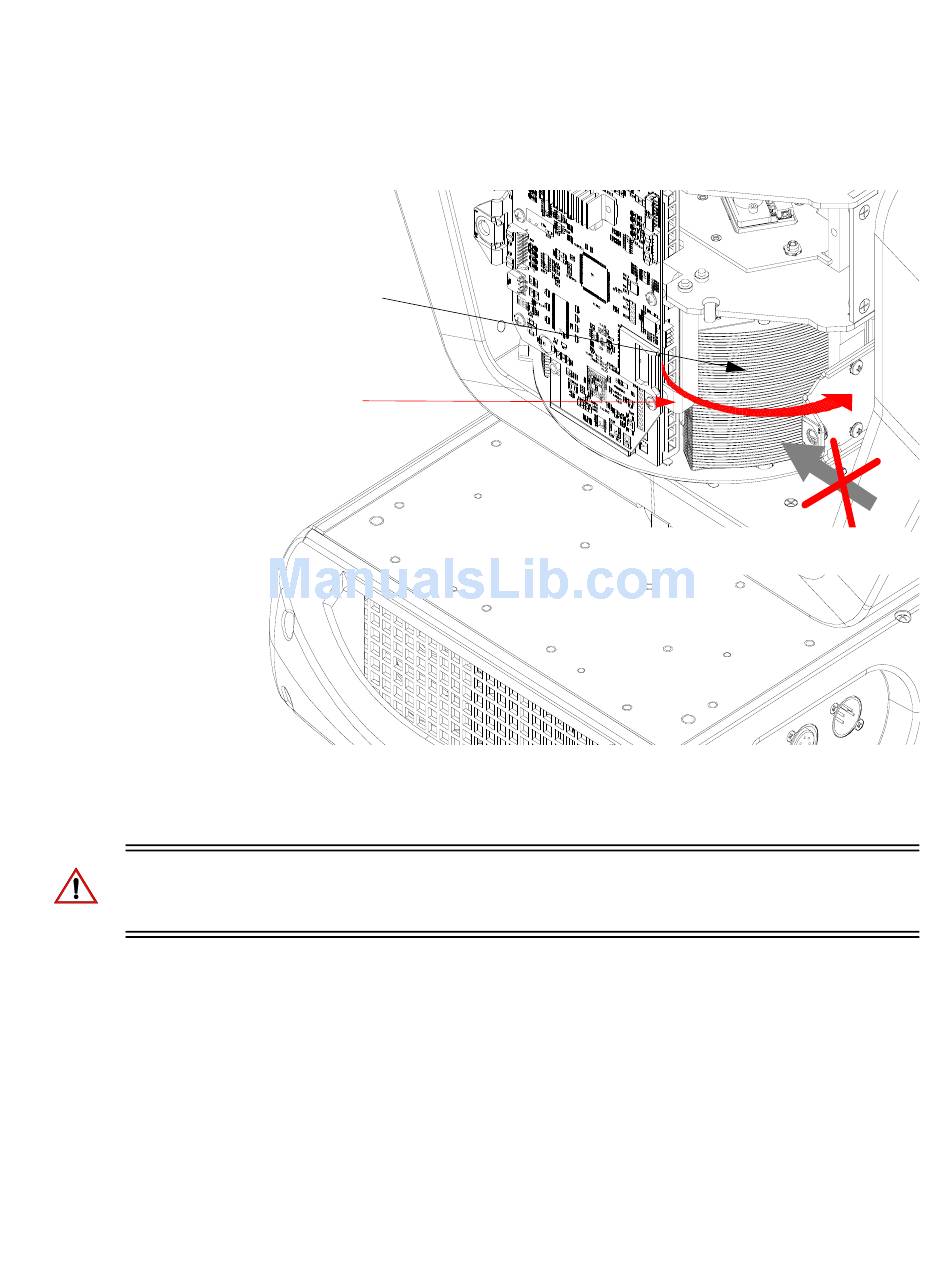

Figure A-3, at LED cooling assembly heatsinks, run Mottler brush gently
