Current Vs. Voltage - Vari Lite VLX3 User Manual

Note: The mating Neutrik PowerCon connector is supplied, however, you will need to purchase or
construct a cable appropriate for your application.
AC Power Input
3-Pole Neutrik PowerCon
Locking Connector for AC
Input Power

Current vs. Voltage

The following tables provide the luminaire's current draw at specific voltages.
02.97 03.000 1 A
I : P
NSTALLATION
Neutrik PowerCon
Connector (supplied)

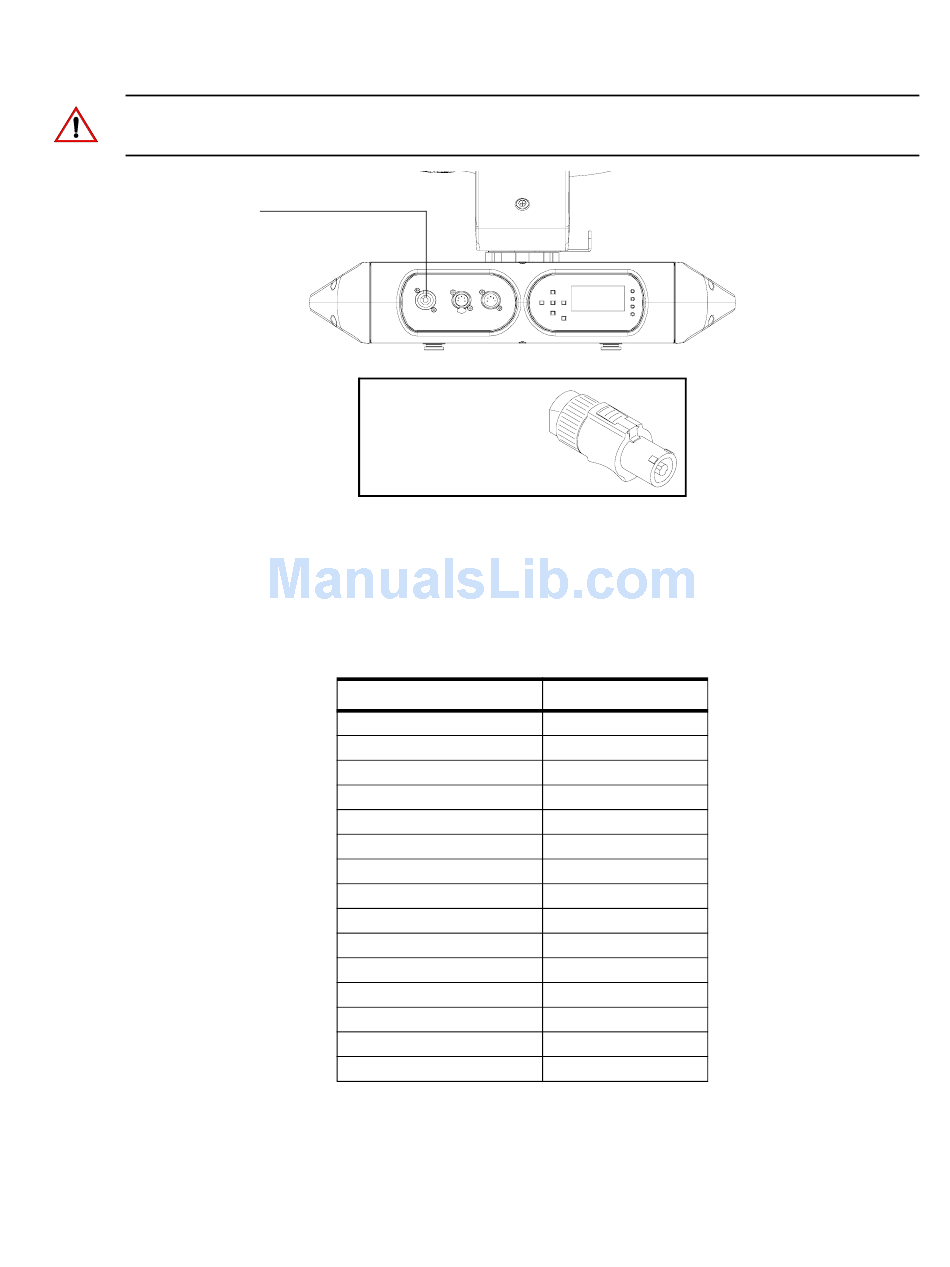

Figure 2-1: Power Connector
Table 2-1: VLX3 Wash Luminaire - Current vs. Voltage*
Voltage (VAC) @ 60Hz
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
*Currents given are worst case with all motors sequencing.
1 7 Dec emb er 2 012
D C
OWER AND ATA ABLING
Current (Amps)
6.0
5.5
5.0
4.6
4.3
4.0
3.8
3.5
3.3
3.2
3.0
2.9
2.7
2.6
2.5
2
R
EQUIREMENTS
