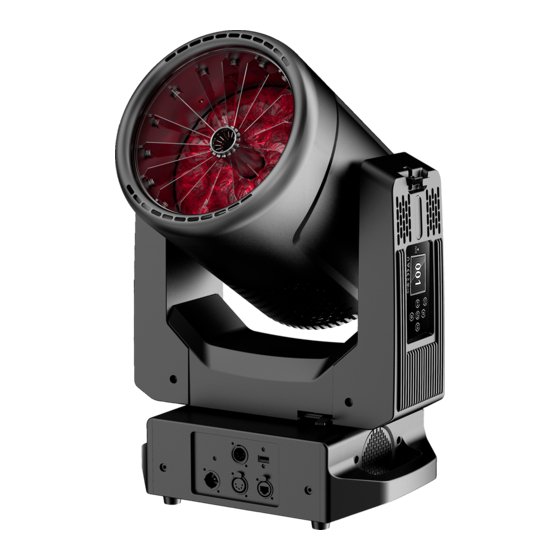

VL5LED
WASH
This document provides basic setup instructions and safety
warnings for the following product(s):
91200545005
VL5LED WASH
POWER AND DATA

CONNECTING POWER

The luminaire requires standard AC power distribution from 100-240 VAC, 50/60 Hz. Current required depends
on the AC supply voltage and product model.
NOTE: The mating power connector is supplied; however, you need to purchase or construct a cable appropri-
ate for your application.
Depending on the application, the luminaire's AC input cable may require a diff erent connector. If required,
install a new connector meeting your requirements using the included wire color code reference.
WIRE*
green
white
black
*International (harmonized) standard
WARNING! DO NOT connect to three-phase service in countries with 240 volt power.
©2020 Signify Holding. All rights reserved.
DMX out
USB port
RJ45 connector
DMX in
Power in

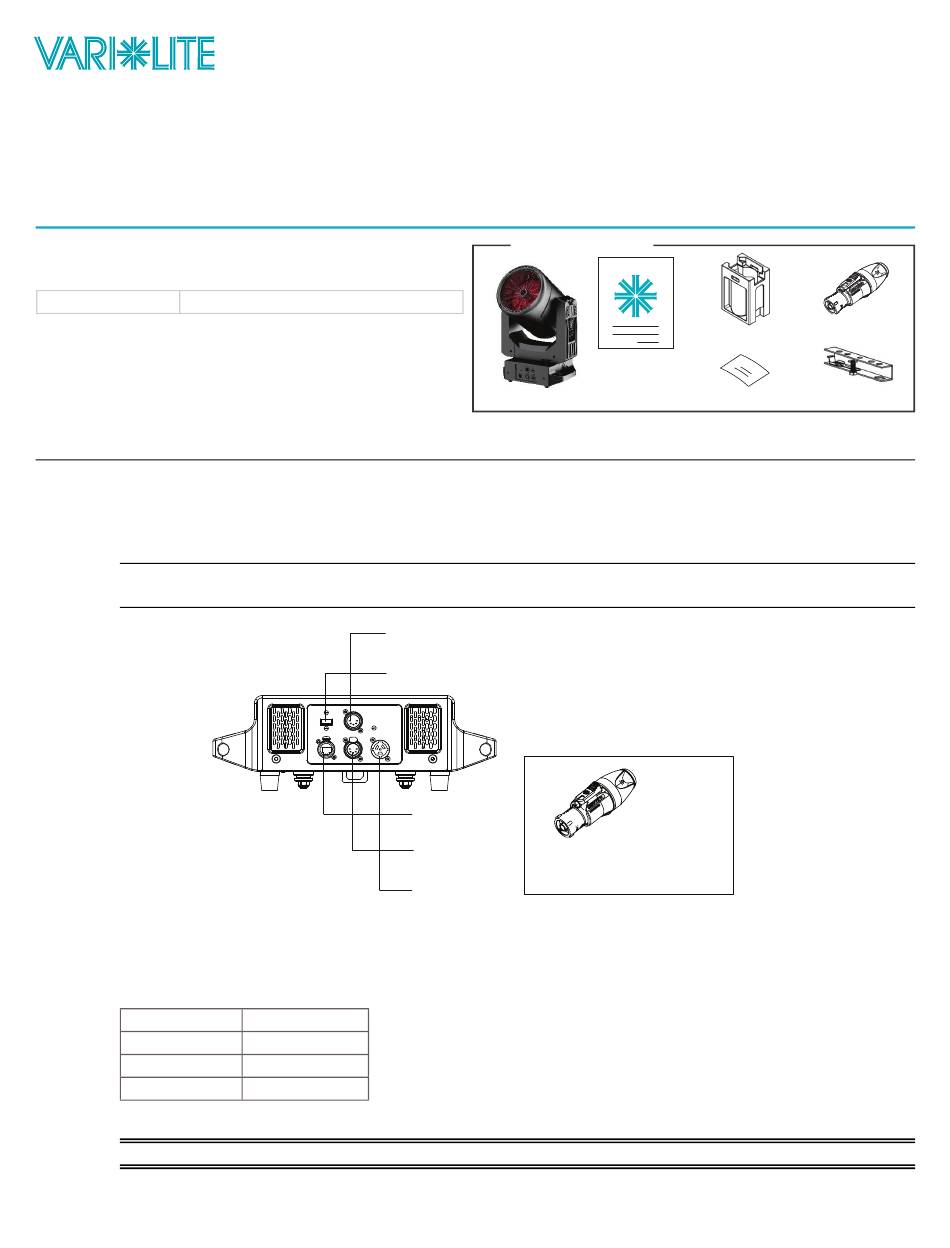

FIGURE 1.
CONNECTION
Ground (earth)
AC neutral
AC line
INCLUDED ITEMS
QUICK START GUIDE
(this document)
VL5LED WASH
AC POWER INPUT
3-pole Neutrik® powerCON©
TRUE1 for AC input power
POWER CONNECTOR
1
QUICK START GUIDE
POWER CONNECTOR
CASE SIP
CASE SIP
HOOK RAILS
HOOK RAILS
WARRANTY CARD
W W W.VA R I - L I T E . C O M
