A termination connector is used in this process. Refer to
construction of this connector.
Master luminaire containing
software version to download
AC In
Transfer Procedure
This procedure is used to transfer software versions between luminaires.
Step 1. At last luminaire, install male termination connector into DATA THRU XLR connector.
Step 2. At master luminaire (first in chain) Menu Display, press [ESC].
Step 3. Press [Up] / [Down] arrows until Fixture appears.
Step 4. Press [Up] / [Down] arrows until Download appears. Press [Enter].
Step 5. OK? will be displayed. Press [Enter] to accept.
Step 6. Download proceeds. (Download takes 4-5 seconds.) The number of blocks displayed is less
in a luminaire-to-luminaire download than in a PC-to-luminaire download for the same
software version.
Step 7. When download is complete, luminaire automatically recalibrates. When recalibration is
complete, luminaire is ready for operation with its new software version.
Verify software version at luminaire:
Step 1. At Menu Display, press [ESC].
Step 2. Press [Up] / [Down] arrows until Fixture appears. Press [Enter].
Step 3. Press [Up] / [Down] arrows until Version appears. Press [Enter].
The first half of the version will be displayed as a date (MM.DD.YY). For example,
03.18.03 (March 18, 2003).
Press [Up] / [Down] arrows to display second half of version. This will be displayed as a
time (HH:MM). For example, 16:00
56
L
U
'
ASH
UMINAIRE
SER
Data In
Data Thru

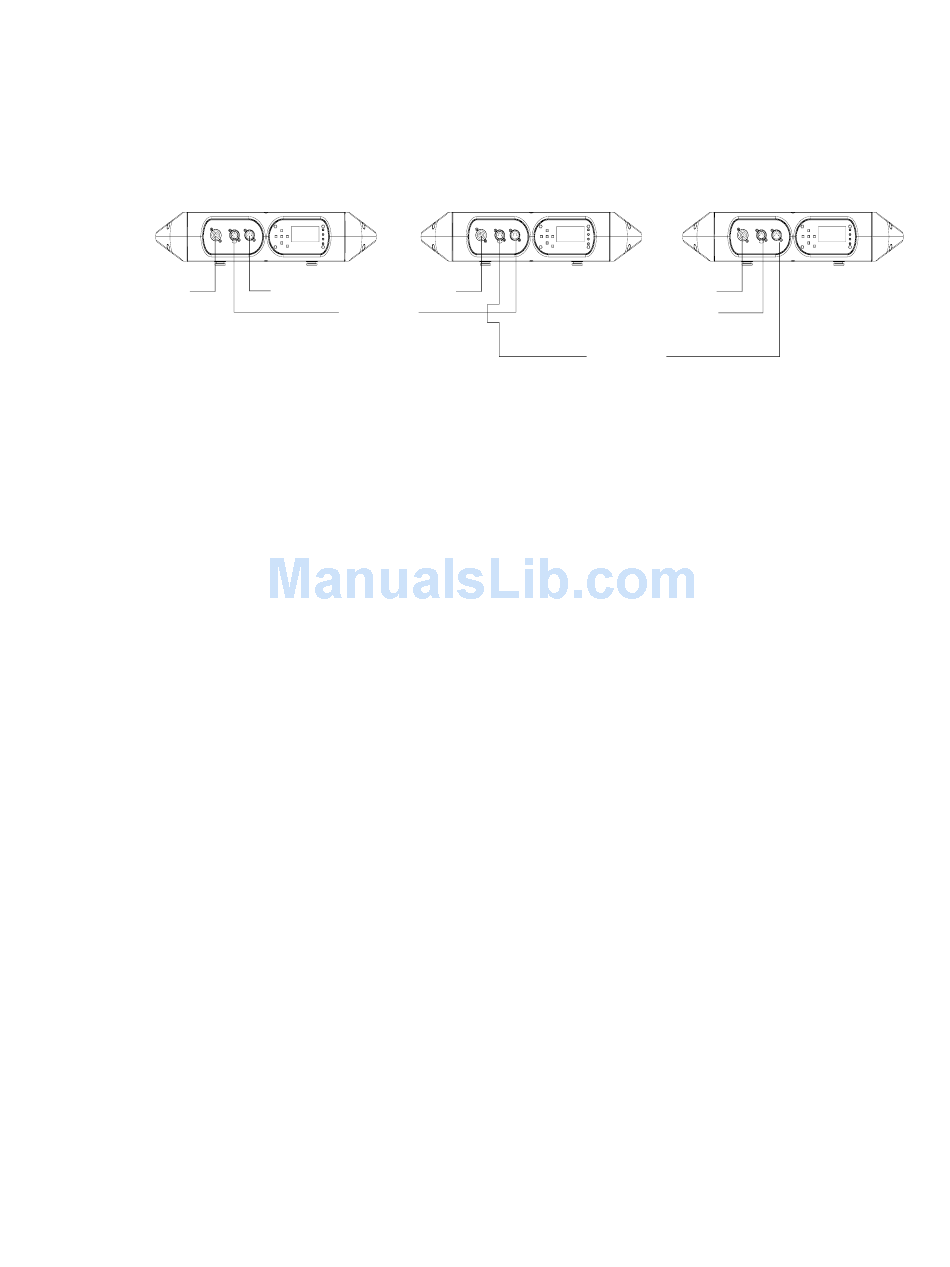

Figure 3-3: Software Transfer Setup
1 7 Dec emb er 2 012
M
S
ANUAL
page 13
Luminaire 1
requiring update
AC In
for more information regarding the
Luminaire 2
requiring update
AC In
Termination
Data Thru
02 .9 703 .00 01 A
