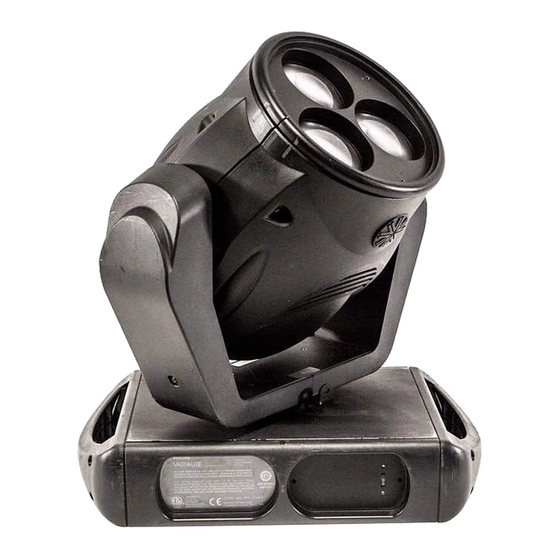

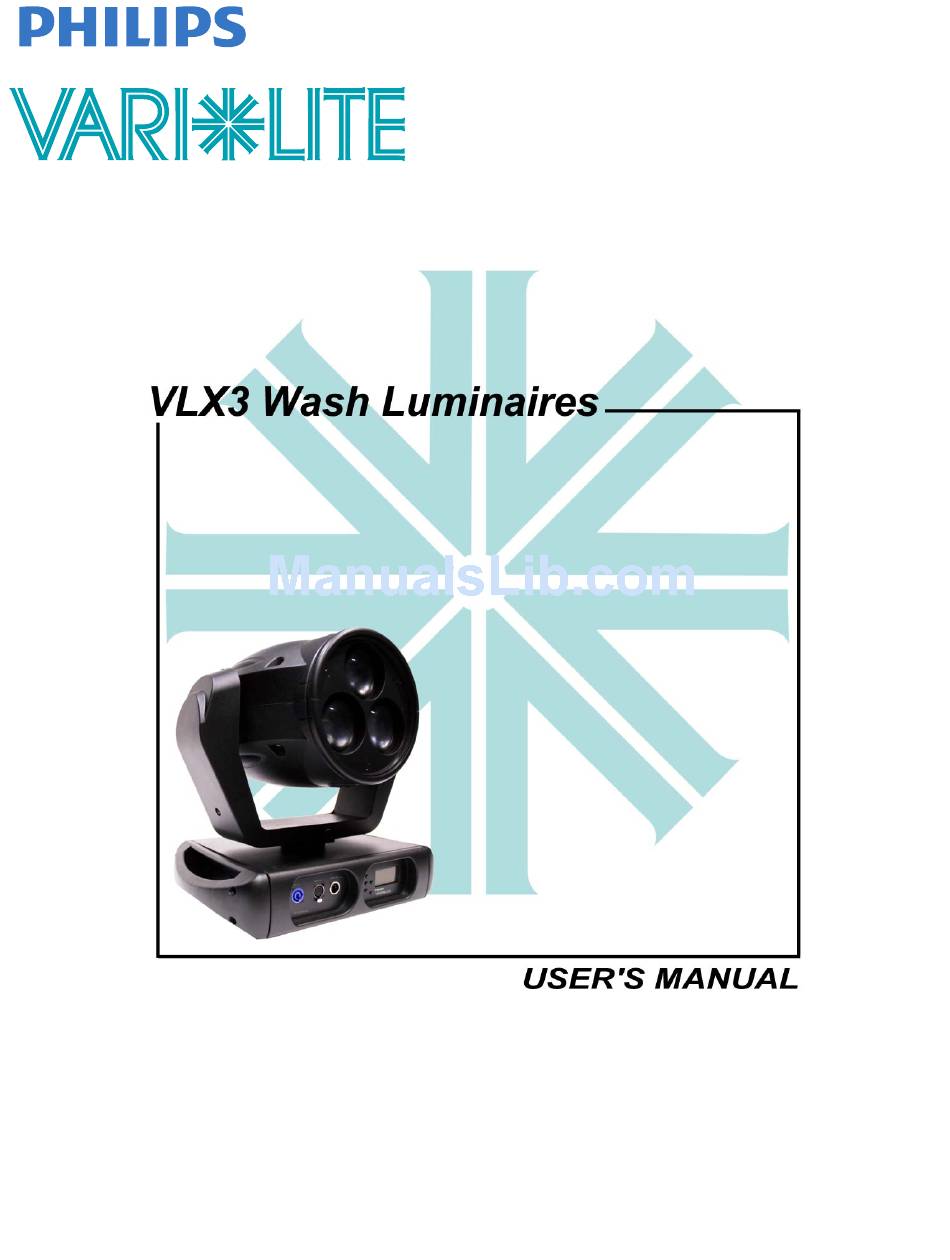

Vari Lite VLX3 User Manual

Wash luminaires
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VLX3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vari Lite VLX3

Summary of Contents for Vari Lite VLX3

  • Page 2 Vari-Lite assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual. All information and graphics are property of Vari-Lite, a Philips group company, 10911 Petal Street Dallas, Texas 75238 USA.
  • Page 3 OREWORD How To Obtain Warranty Service A copy of the Vari-Lite Limited Warranty was included in the shipping package for this VARI❋LITE product. To obtain warranty service, please contact customer service at 1-877-VARI-LITE (1-877-827-4548), +1-214-647-7880, or entertainment.service@philips.com and request a Return Material Authorization (RMA) for warranty service.
  • Page 4 Vari-Lite system, service, and safety guidelines, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his/her own expense.
  • Page 5 WARNING: INSTRUCTIONS FOR CONTINUED PROTECTION AGAINST FIRE 1. VARI❋LITE luminaires have been designed for use with specific lamp types. The VLX3 Wash Luminaire uses special LED devices. Installing another type of light sources may be hazardous and will void your warranty.
  • Page 6 ❋ VARI LITE - VLX3 W ’ UMINAIRE ANUAL WARNING: INSTRUCTIONS FOR CONTINUED PROTECTION AGAINST EXCESSIVE EXPOSURE TO UV RADIATION 1. Many VARI❋LITE luminaires use a lamp that produces UV radiation. DO NOT look directly at lamp. 2. It is hazardous to operate luminaires without lens or shield. Shields, lenses, or ultraviolet screens shall be changed if they have become visibly damaged to such an extent that their effectiveness is impaired.
  • Page 7 OREWORD Sicherheitshinweise Es ist äußerst wichtig, ALLE Sicherheitsinformationen und -hinweise in diesem Handbuch und dem beiliegenden Informationsmaterial zu lesen, bevor Sie die hierin beschriebenen Produkte installieren bzw. bedienen. Halten Sie bei der Installation und dem Einsatz dieses Produkts alle Warnhinweise und Vorsichtsmaßnahmen ein.
  • Page 8 ❋ VARI LITE - VLX3 W ’ UMINAIRE ANUAL WARNUNG: HINWEISE ZUM SCHUTZ GEGEN ÜBERHÖHTE UV-STRAHLUNG 1. Viele VARI❋LITE -Scheinwerfer verwenden die Lampentyp, der UV-Strahlen abgibt. SCHAUEN SIE NICHT direkt in die Lampe. 2. Es ist gefährlich, Leuchten ohne Linsen oder Blenden zu bedienen. Blenden, Linsen oder Ultraviolettschirme müssen ausgetauscht werden, sofern deren Schutzwirkung durch sichtbare...
  • Page 9 OREWORD Notes de sécurité Avant de procéder à l’installation des produits décrits dans ce guide et de les mettre en marche, il est extrêmement important de lire TOUS les renseignements et TOUTES les directives de sécurité contenues dans ce guide ainsi que toute documentation jointe. Tenir compte de tous les avertissements et suivre toutes les précautions pendant l’installation et l’utilisation de cet appareil.
  • Page 10 ❋ VARI LITE - VLX3 W ’ UMINAIRE ANUAL AVERTISSEMENT: DIRECTIVES POUR SE PROTÉGER CONTRE UNE EXPOSITION EXCESSIVE AUX RAYONS UV 1. Plusieurs luminaires VARI❋LITE utilisent une lampe qui produit des rayons UV. NE PAS fixer son regard sur la lampe.
  • Page 11 OREWORD Aviso sobre Seguridad Es muy importante leer TODA la información e instrucciones sobre seguridad que se indica en este manual así como en los documentos adjuntos antes de instalar y operar los productos descritos. Se debe prestar atención a todos los avisos y advertencias durante la instalación y uso de este producto. Los símbolos de seguridad usados en este manual son los siguientes: CUIDADO, indica posibles daños al producto.
  • Page 12 ❋ VARI LITE - VLX3 W ’ UMINAIRE ANUAL ADVERTENCIA: INSTRUCCIONES PARA PROTECCIÓN CONTINUA CONTRA LA EXPOSICIÓN EXCESIVA DE RADIACIÓN ULTRA VIOLETA 1. Muchas luminarias VARI❋LITE usan un tipo de lámpara que produce radiación UV. NO mire directamente a la lámpara.
  • Page 13 OREWORD 02.97 03.000 1 A 1 7 Dec emb er 2 012...
  • Page 14 ❋ VARI LITE - VLX3 W ’ UMINAIRE ANUAL 1 7 Dec emb er 2 012 02 .9 703 .00 01 A...

  • Page 15: Table Of Contents

    DMX Mode 3 Channel Mapping (Individual LED Engine Control) ........ 29 DMX Mode 4 Channel Mapping (Enhanced Individual LED Engine Control) ....33 Control Channel Functions ..................... 38 VLX3 Wash Luminaire Operational Modes (from Control Channel Settings) ....41 LED Field Adjustment 02.97 03.000 1 A...
  • Page 16 Special Cleaning and Care Instructions .................. 74 Shipping / Transportation......................74 Cooling System Heatsink Cleaning Procedure ............... 75 Appendix B. Technical Specifications VLX3 Wash Luminaire ......................77 1 7 Dec emb er 2 012 02 .9 703 .00 01 A...

  • Page 17: About This Manual

    VLX3 Wash Luminaire, White 20.9703.0001.02 3 x 120W RGBW LEDs Additional Documentation A service manual, only for Authorized VARI❋LITE Service Centers and technicians, of the VLX3 Wash Luminaire is available in electronic (PDF) format: • VLX3 Wash Luminaire Service Manual (02.9690.0010) - Testing, Troubleshooting, Component Replacement and Illustrated Parts Breakdown.

  • Page 18: Text Conventions

    Customer Service Our Goal At Vari-Lite, we are committed to providing you the highest quality in customer service. Our comprehensive resources are available to help your business succeed and ensure you get the full benefit of being a Vari-Lite customer. Whether your needs are telephone troubleshooting assistance, product training or technical service, our full-time staff of experienced professionals are on-hand to provide support.

  • Page 19: Chapter 1. Description

    HAPTER Description This chapter contains descriptions of luminaire features and components, along with a list of accessories that are available. • Features • Components 02.97 03.000 1 A 1 7 De cemb er 2012...

  • Page 20: Features

    • Pan and 240 Tilt with 0.3 resolution. Note: Detailed specification are available on the Vari-Lite web site at www.vari-lite.com and in “Technical Specifications” on page 77 in this manual. 1 7 Dec emb er 2 012...

  • Page 21: Components

    VLX3 Wash Luminaire *Unit supplied with AC input connector only. Users will need to supply and build an AC input cable using this connector. Figure 1-1: VLX3 Wash Luminaire Included Items 02.97 03.000 1 A 1 7 Dec emb er 2 012...

  • Page 22: Replacement Items/Accessories

    LITE - VLX3 W ’ UMINAIRE ANUAL Replacement Items/Accessories The following optional and/or replacement items can be ordered directly from your Authorized VARI❋LITE Dealer. (Please order by Vari-Lite part number.) Vari-Lite P/N Accessory 22.9620.0194 Safety Cable Assembly 23.9623.0177 XLR DMX Terminator USB Luminaire Programming Kit (Includes USB Upload Cable, Programming 28.8500.0054...

  • Page 23: Luminaire Overview

    Tilt Service Lock Pan Service Lock The VLX3 Wash Luminaire has separate Pan and Tilt service locks. When the luminaire is in use, both the Pan and Tilt service locks must be disengaged (unlocked) to allow free movement of the luminaire head and yoke assemblies.
  • Page 24 AC Power Input 100 - 240VAC 50/60Hz DMX Through DMX Input Passes DMX to Other Luminaires Connection to DMX Controls Figure 1-3: VLX3 Wash Luminaire External Components and Controls 1 7 Dec emb er 2 012 02 .9 703 .00 01 A...

  • Page 25: Chapter 2. Installation

    Note: Shipping / Transportation - The zoom assembly on the VLX3 Wash should be fully retracted (inside the head assembly) when the unit is not in use, being shipped, or is in storage.

  • Page 26: Power And Data Cabling Requirements

    ❋ VARI LITE - VLX3 W ’ UMINAIRE ANUAL Power and Data Cabling Requirements AC Power WARNING: DO NOT connect to three-phase Delta service in countries with 240 volt power. WARNING: DO NOT connect or disconnect energized power cable at fixture (under load). Turn off circuit breaker (or completely de-energize circuit) before connecting or disconnecting power cable at fixture.

  • Page 27: Current Vs. Voltage

    Figure 2-1: Power Connector Current vs. Voltage The following tables provide the luminaire’s current draw at specific voltages. Table 2-1: VLX3 Wash Luminaire - Current vs. Voltage* Voltage (VAC) @ 60Hz Current (Amps) *Currents given are worst case with all motors sequencing.

  • Page 28: Data Cables

    ANUAL Data Cables The VLX3 Wash Luminaire is equipped with two, 5-pin XLR connectors for DATA IN and DATA THRU (out) applications. DATA IN requires a 5-pin, female XLR connector and DATA THRU requires a 5-pin, male XLR connector. When purchasing or constructing data cables, it is important that not only the correct cable type be used, but also quality cable to ensure a reliable DMX512 system.

  • Page 29: Recommended Cable Types/Manufacturers

    5-pin, male XLR connector. • Two 1/4W 5% 120 ohm resistors. Note: A male termination connector is also available as an accessory from Vari-Lite. See “Replacement Items/Accessories” on page 02.97 03.000 1 A 1 7 Dec emb er 2 012...

  • Page 30: Installation Procedures

    Installation Procedures Hanging the Luminaire The VLX3 Wash Luminaire can be hung horizontally or vertically from any structure designed to work with the type of load created by this moving luminaire. Two mounting bracket assemblies (provided) are used to attach truss hooks or other mounting hardware as required. Many compatible truss hooks are available from different manufacturers for your particular needs.
  • Page 31 NSTALLATION NSTALLATION ROCEDURES Step 3. While pulling up on locking mechanism release, fit keyed holes onto raised mounting buttons at bottom of enclosure. Slide forward and release locking mechanism to lock in place. Ensure brackets are locked securely. (Always face brackets in same direction as shown.) WARNING: Ensure that the bracket locking mechanism is fully seated after the bracket is installed on the luminaire.
  • Page 32 ❋ VARI LITE - VLX3 W ’ UMINAIRE ANUAL Installing in Truss: Step 1. Using two people, lift luminaire into mounting position. Step 2. Secure in place with truss hook. Ensure truss hook hardware that locks hook in place (e.g.

  • Page 33: Floor Mounting The Luminaire

    NSTALLATION NSTALLATION ROCEDURES Floor Mounting the Luminaire The luminaire enclosure is sufficient to stabilize the luminaire in a floor installation, provided that the mounting surface is flat and sturdy. Also, the area around the luminaire must be free of debris and moisture. Connecting Data and Power A maximum of 32 luminaires may be connected in any one DMX data link.

  • Page 34: Powering Up

    LCD Display. Information includes description of process and a progress bar. VLX3 Wash Menu LCD Display POWER Calibrating Pan / Zoom ENTER ERROR VLX3 Wash Menu Figure 2-7: VLX3 Wash LCD Display - Luminaire Calibration Status 1 7 Dec emb er 2 012 02 .9 703 .00 01 A...

  • Page 35: Addressing

    NSTALLATION DDRESSING Addressing Program Starting Address The address setting for DMX console controlled systems is entered using the Menu Display (refer to “Menu Operation” on page 58). The luminaire retains the DMX address even when power is removed. Note: Refer to your console operating instructions for specific information regarding its addressing requirements.
  • Page 36 ❋ VARI LITE - VLX3 W ’ UMINAIRE ANUAL Notes 1 7 Dec emb er 2 012 02 .9 703 .00 01 A...

  • Page 37: Chapter 3. Operation

    HAPTER Operation This chapter contains instructions for operating the luminaire using DMX control and for updating the internal software. For Menu options and detailed information, see “Menu Operation” on page • DMX Operation • LED Field Adjustment • Luminaire Timing •...

  • Page 38: Dmx Operation

    29. For Mode 4 Channel Mapping, refer to page 33 IMPORTANT! When changing the DMX Map (from one mode to another), the luminaire will auto re-calibrate. Table 3-1: VLX3 Wash Luminaire Mapping Mode 1 Default - These values are recom- Parameter...
  • Page 39 : DMX O PERATION PERATION Table 3-1: VLX3 Wash Luminaire Mapping Mode 1 Controls beam angle from 15 (DMX 0) to 55 Beam 0 - 255 0 - 100% (DMX 255) Controls strobe operations as follows: Open = DMX 0 - 2...
  • Page 40 LITE - VLX3 W ’ UMINAIRE ANUAL Table 3-1: VLX3 Wash Luminaire Mapping Mode 1 Used to set different modes, parameters, and functions of the VLX Wash. Set control channel value for desired action. Hold value for at least 3 seconds.

  • Page 41: Dmx Mode 2 Channel Mapping (Enhanced Operational Mode)

    : DMX O PERATION PERATION DMX Mode 2 Channel Mapping (Enhanced Operational Mode) These tables assume a DMX start address of 1. When a different starting address is used, this address becomes channel 1 function and other functions follow in sequence. Note: For Mode 1 Channel Mapping, refer to page 22.

  • Page 42: Vari Lite - Vlx3 Waserh Luminaire Userer ' Ser

    ❋ VARI LITE - VLX3 W ’ UMINAIRE ANUAL Table 3-2: VLX3 Wash Luminaire Mapping Mode 2 Default - These values are recom- Parameter Range DMX Range% Description Channel mended console default values Intensity - High 0 - 65535 0 - 100% 16-bit control for Intensity of LED settings.
  • Page 43 : DMX O PERATION PERATION Table 3-2: VLX3 Wash Luminaire Mapping Mode 2 Blue 3 - High Byte 16-bit control of Blue LED (Engine 3) from 0 to 0 - 65535 0 - 100% full. Blue 3 - Low Byte...
  • Page 44 LITE - VLX3 W ’ UMINAIRE ANUAL Table 3-2: VLX3 Wash Luminaire Mapping Mode 2 Used to set different modes, parameters, and functions of the VLX Wash. Set control channel value for desired action. Hold value for at least 3 seconds (unless noted by #).

  • Page 45: Dmx Mode 3 Channel Mapping (Individual Led Engine Control)

    DMX Mode 3 Channel Mapping (Individual LED Engine Control) Vari-Lite has added a new control mode in VLX3 wash luminaires called Mode 3. Mode 3 allows users to program and control each LED engine individually but with significant differences from Mode To select DMX Mode 3, access the Menu System as follows: DMX ->...
  • Page 46 25. For Mode 4 Channel Mapping, refer to page IMPORTANT! When changing the DMX Map (from one mode to another), the luminaire will auto re-calibrate. Table 3-3: VLX3 Wash Luminaire Mapping Mode 3 Default - These values are recom- Parameter...
  • Page 47 : DMX O PERATION PERATION Table 3-3: VLX3 Wash Luminaire Mapping Mode 3 Controls strobe operations as follows: Open = DMX 0 - 2 Closed = DMX 3 - 5 Slow Rand = DMX 6 - 7 Med Rand = DMX 8 - 10...
  • Page 48 ❋ VARI LITE - VLX3 W ’ UMINAIRE ANUAL Table 3-3: VLX3 Wash Luminaire Mapping Mode 3 Controls beam angle from 15 (DMX 0) to 55 Beam 0 - 255 0 - 100% (DMX 255) Allows for luminaire timing of intensity. Profile...

  • Page 49: Dmx Mode 4 Channel Mapping (Enhanced Individual Led Engine Control)

    DMX Mode 4 Channel Mapping (Enhanced Individual LED Engine Control) Vari-Lite has added a new control mode in VLX3 wash luminaires called Mode 4. Mode 4 allows users to program and control each LED engine individually but with significant differences from Mode 2 and Mode 3 (as described in Vari-Lite Technical Bulletin LSW-064).
  • Page 50 25. For Mode 3 Channel Mapping, refer to page IMPORTANT! When changing the DMX Map (from one mode to another), the luminaire will auto re-calibrate. Table 3-4: VLX3 Wash Luminaire Mapping Mode 4 Default - These values are recom- Parameter...
  • Page 51 : DMX O PERATION PERATION Table 3-4: VLX3 Wash Luminaire Mapping Mode 4 Used to set different modes, parameters, and functions of the VLX Wash. Set control channel value for desired action. Hold value for at least 3 seconds. Set control channel value to 0 without any scaling.
  • Page 52 LITE - VLX3 W ’ UMINAIRE ANUAL Table 3-4: VLX3 Wash Luminaire Mapping Mode 4 Used for setting fixture into expanded mode for control of individual LED engines. This channel also contains individual spin speeds and various other effects. DMX values as follows:...
  • Page 53 : DMX O PERATION PERATION Table 3-4: VLX3 Wash Luminaire Mapping Mode 4 Controls strobe operations as follows: Open = DMX 0 - 2 Closed = DMX 3 - 5 Slow Rand = DMX 6 - 7 Med Rand = DMX 8 - 10...

  • Page 54: Control Channel Functions

    ANUAL Control Channel Functions Used to set different modes, parameters, and functions of the VLX3 Wash Luminaire via the control console. Set control channel value for desired action. Hold value for at least 3 seconds. Set control channel value to 0 without any scaling. Discrete values must be used; not manual controls such as faders or encoders (see chart below for values).
  • Page 55 : DMX O PERATION PERATION Control Channel Functions - Mode 2 Table 3-6: Control Channel Functions - Mode 2 DMX Channel Control Channel Function Control Channel DMX Value Default Setting on Console 3 - 4 Display On / Off 5 - 7 Reset All to Defaults** Quiet Mode 11 - 13...
  • Page 56 ❋ VARI LITE - VLX3 W ’ UMINAIRE ANUAL Control Channel Functions - Mode 3 Table 3-7: Control Channel Functions - Mode 3 DMX Channel Control Channel Function Control Channel DMX Value Default Setting on Console 3 - 4 Display On / Off...

  • Page 57: Vlx3 Wash Luminaire Operational Modes (From Control Channel Settings)

    † These settings require the Command Lock in Menu to be set to OFF in order to change on Control Chan- nel. Resetting to defaults will turn Command Lock OFF. VLX3 Wash Luminaire Operational Modes (from Control Channel Settings) Display On / Off (All Modes) With the display on, the backlight timer will control how long the luminaire's display backlight will stay on.
  • Page 58 ❋ VARI LITE - VLX3 W ’ UMINAIRE ANUAL Constant Fan Mode (All Modes) Constant Fan Mode sets fans to maximum speed and will keep them operating at full, regardless of LED junction temperatures. Normal Mode (default setting) (All Modes) Normal Mode operates the luminaire's fans according to the LED's junction temperature.

  • Page 59: Led Field Adjustment

    DJUSTMENT LED Field Adjustment VLX3 wash software allows for a manual adjustment of the color calibration that is stored within the fixture's Main Control Board (MCB). Manual color adjustments will provide the user the ability to "visually match" the color and intensity between multiple fixtures should they desire to. LED Correction must be turned ON for the manual color adjustment to be applied.

  • Page 60: Manual Color Adjustment Through A Control Console

    ❋ VARI LITE - VLX3 W ’ UMINAIRE ANUAL Configure -> LED Modes -> LED Correction (Must be turned ON) -> Field Adj Step 3. Using UP and DOWN arrow keys, select parameter to adjust. Step 4. Using LEFT and RIGHT arrow keys, adjust parameter.

  • Page 61: Luminaire Timing

    The timing channel data should change as a snap. A zero value will give the fastest move, however, without any smoothing this can appear "steppy" in console timed moves. Table 3-9: VLX3 Channel Function / Timing Channel Relationship Timing Channel...
  • Page 62 ❋ VARI LITE - VLX3 W ’ UMINAIRE ANUAL Note: The particular storing syntax for your console, as well as instructions on how to write part cues, can be found in the operation manual for that console. To use these channels, you must: Step 1.
  • Page 63 PERATION UMINAIRE IMING Timing channels can be set in either % or 0-255 (DMX) modes, with the following values assigned: Timing Channels Map Table 3-10: % Value = Seconds Full Speed 02.97 03.000 1 A 1 7 Dec emb er 2 012...
  • Page 64 ❋ VARI LITE - VLX3 W ’ UMINAIRE ANUAL Timing Channels Map Table 3-10: (Continued) % Value = Seconds 10.2 10.4 10.6 1 7 Dec emb er 2 012 02 .9 703 .00 01 A...
  • Page 65 PERATION UMINAIRE IMING Timing Channels Map Table 3-10: (Continued) % Value = Seconds 02.97 03.000 1 A 1 7 Dec emb er 2 012...
  • Page 66 ❋ VARI LITE - VLX3 W ’ UMINAIRE ANUAL Timing Channels Map Table 3-10: (Continued) % Value = Seconds 1 7 Dec emb er 2 012 02 .9 703 .00 01 A...
  • Page 67 PERATION UMINAIRE IMING Timing Channels Map Table 3-10: (Continued) % Value = Seconds 02.97 03.000 1 A 1 7 Dec emb er 2 012...
  • Page 68 ❋ VARI LITE - VLX3 W ’ UMINAIRE ANUAL Timing Channels Map Table 3-10: (Continued) % Value = Seconds 1 7 Dec emb er 2 012 02 .9 703 .00 01 A...
  • Page 69 PERATION UMINAIRE IMING Timing Channels Map Table 3-10: (Continued) % Value = Seconds Follows Cue Data 02.97 03.000 1 A 1 7 Dec emb er 2 012...

  • Page 70: Updating Software

    Control Boards (MCBs) - both old-style and new-style. • Users with VLX3 Wash Luminaires are encouraged to make sure their VLX3 Wash Luminaires have this new version of software (or later) loaded into their fixtures. New-style MCBs (on luminaires built after 05/18/12) must have this software version (or later) •...

  • Page 71: Transferring Software From Luminaire To Luminaire

    (on PC) Device Connection Status and USB Downloader Controls Click to download specific software version to connected luminaire(s) Click logo to go to Vari-Lite web site (internet connection required) Download History Will show current progress of download Figure 3-2: VL Download Program Window Transferring Software From Luminaire to Luminaire It is possible to transfer specific software versions between luminaires.
  • Page 72 ❋ VARI LITE - VLX3 W ’ UMINAIRE ANUAL A termination connector is used in this process. Refer to page 13 for more information regarding the construction of this connector. Master luminaire containing Luminaire 1 Luminaire 2 software version to download...

  • Page 73: Chapter 4. Menu System

    Main Control Boards (MCBs) - both old-style and new-style. • Users with VLX3 Wash Luminaires are encouraged to make sure their VLX3 Wash Luminaires have this new version of software (or later) loaded into their fixtures. New-style MCBs (on luminaires built after 05/18/12) must have this software version (or •...

  • Page 74: Menu Operation

    (Power On, Transmitting DMX, Receiving DMX, Error in Luminaire Operation) LCD Display - Displays all Data and Luminaire Settings Arrow Keys (Left/Right/Up/Down) POWER Enter Button ENTER ERROR Escape (ESC) Figure 4-2: VLX3 Wash Menu Control 1 7 Dec emb er 2 012 02 .9 703 .00 01 A...
  • Page 75 YSTEM PERATION Table 1-1: Menu Control Buttons Button Description Action Up Arrow Menu Navigation / Data Selection Down Arrow Menu Navigation / Data Selection Right Arrow Menu Navigation / Data Selection Left Arrow Menu Navigation / Data Selection Enter Button To Select or Change a Setting or Data Value ENTER Used to Access Main Menu Parameters, Exit, or...

  • Page 76: Default State

    Step 4. Press [Up] / [Down] arrows to select either 30 Sec (30 seconds), 5 Min (5 minutes), 10 Min (10 minutes), or ON (on indefinitely). Press [Enter] to set. Menu Button Shortcuts The VLX3 Wash has some useful menu button short-cuts. These shortcuts are: Action Buttons...

  • Page 77: Menu Functions

    Wireless technical support to do so. Receiver Note: For the latest version of this manual and luminaire software, please visit the Vari-Lite web site www.vari-lite.com and click on the "Product Downloads" link on the VLX3 Wash Luminaire Products information page.

  • Page 78: Menu System Function Chart

    ❋ VARI LITE - VLX3 W ’ UMINAIRE ANUAL Menu System Function Chart Table 4-1: VLX3 Wash Menu System Chart 1st Level 2nd Level 3rd Level 4th Level 5th Level Address XXX value 1 thru 512 Configure Pan/Tilt Pan and Tilt...
  • Page 79 YSTEM UNCTIONS Table 4-1: VLX3 Wash Menu System Chart 1st Level 2nd Level 3rd Level 4th Level 5th Level Configure CMD Lock Selects whether On Control Channels - Mode, Fixture to set Command Lock - to Dimmer Curve, Color Calibration...
  • Page 80 Table 4-1, “VLX3 Wash Menu System Chart” Notes For 16-bit parameters, the data displayed will be scaled to a range of 0-65535. ** Do NOT use or select RS232 unless instructed by Vari-Lite technical support to do so. 1 7 Dec emb er 2 012...

  • Page 81: Menu Function Definitions

    YSTEM UNCTIONS Menu Function Definitions For easy reference, each possible menu item is listed alphabetically in the first column by its display abbreviation. The second column follows with a definition of the abbreviation and then a third column provides an explanation of its purpose and function. Table 4-2: Menu Function Definitions Display Definition...
  • Page 82 ❋ VARI LITE - VLX3 W ’ UMINAIRE ANUAL Table 4-2: Menu Function Definitions (Continued) Display Definition Purpose FAIL Test Fail Indicates that a test has failed. Fixt Hrs Fixture Hours Displays total number of hours luminaire has been powered on.
  • Page 83 RS232 Log RS232 Logging WARNING: For factory use only - DO NOT use OR select, "RS232 Log - > On" unless instructed by Vari-Lite technical support to do so. RUN TEST Run Test Indicates that a mechanism test is in progress.
  • Page 84 ❋ VARI LITE - VLX3 W ’ UMINAIRE ANUAL Notes 1 7 Dec emb er 2 012 02 .9 703 .00 01 A...

  • Page 85: Appendix A. Troubleshooting And Maintenance

    PPENDIX Troubleshooting and Maintenance This appendix provides instructions for troubleshooting and routine maintenance which may be necessary during the life of the luminaire. • Troubleshooting • Routine Maintenance WARNING: All routine maintenance procedures are to be performed with power completely removed from the luminaire.

  • Page 86: Troubleshooting

    ❋ VARI LITE - VLX3 W ’ UMINAIRE ANUAL Troubleshooting Error Messages If a problem occurs during luminaire calibration, at the end of the calibration sequence the Menu Display cycles through any applicable error message(s) until the end of the list is reached. To review the error messages again, re-access them using the Status function.
  • Page 87 ROUBLESHOOTING AND AINTENANCE Table A-1: Error Message Reference Chart Error Message Definition Possible Causes Firmware version in LED Driver Board • Faulty LED Driver Board did not match firmware version in MCB. Error X of X • Faulty connection between LED Driver Board and Motherboard MCB will try to upload correct version of No LED Upload •...

  • Page 88: Troubleshooting Guide

    ❋ VARI LITE - VLX3 W ’ UMINAIRE ANUAL Troubleshooting Guide If a problem is suspected, first try recalibrating the luminaire to prompt an error message. The chart below provides possible causes and remedies for various error messages and/or symptoms.
  • Page 89 Colors (light output) not Color output not match- Calibration turned On or Off... matching from luminaire ing other VLX3 Wash - Check fixture calibration setting. Make sure to luminaire fixtures operating at calibration is set to same setting (On or Off) as same control settings.

  • Page 90: Routine Maintenance Introduction

    The zoom assembly on the VLX3 Wash should be fully retracted (inside the head assembly) when the unit is not in use, being shipped, or is in storage. Vari-Lite recommends this be done with a suitable DMX control device. However, if the need arises to manually retract the lens, then it should be done by very carefully and slowly, with even pressure on each side of the barrel in line with the rails or with pressure right in the center between the three lenses.

  • Page 91: Cooling System Heatsink Cleaning Procedure

    Head Cover Upper Enclosure Dzus, 1/4-turn fastener (x4 per head cover) Figure A-2: VLX3 Wash Luminaire Step 3. Remove head covers by loosing the four 1/4-turn Dzus fasteners on each cover. Set covers aside. 02.97 03.000 1 A 1 7 Dec emb er 2 012...
  • Page 92 NOTE: Do not direct compressed air through the heatsinks (towards fans) Figure A-3: VLX3 Wash Cooling System Heatsink Cleaning Step 6. Using compressed air duster, blow any remaining debris from heatsink fins in the same direction as indicated in previous step.

  • Page 93: Appendix B. Technical Specifications

    Manufacturer Rated Life: In excess of 10,000 hours (at full RGBW). Output 6,000 lumens (white light, RGBW at Full). NOTE: Vari-Lite reserves the right to change details of design, materials and finishes. Specifications are ❋ subject to change without notice. VARI LITE automated lighting equipment is made in the U.S.A.
  • Page 94 5-pin in and thru DMX. Weight 44 lbs. (20.0 kg) NOTE: Vari-Lite reserves the right to change details of design, materials and finishes. Specifications are subject ❋ to change without notice. VARI LITE automated lighting equipment is made in the U.S.A.
  • Page 95 479.56 mm 3.00 in 76.20 mm (lens extended) NOTE: Vari-Lite reserves the right to change details of design, materials and finishes. Specifications are subject to ❋ change without notice. VARI LITE automated lighting equipment is made in the U.S.A. 02.97 03.000 1 A...
  • Page 96 VARI LITE product may damage the luminaire and could NOTE: Vari-Lite reserves the right to change details of design, materials and finishes. Specifications are subject ❋ to change without notice. VARI LITE automated lighting equipment is made in the U.S.A.
  • Page 98 Vari-Lite 10911 Petal Street Dallas, Texas 75238 USA 1-877-VARI-LITE ❋ 1-214-647-7880 www.vari-lite.com. ©2009 - 2012 Vari-Lite, a Philips group company. All Rights Reserved.
